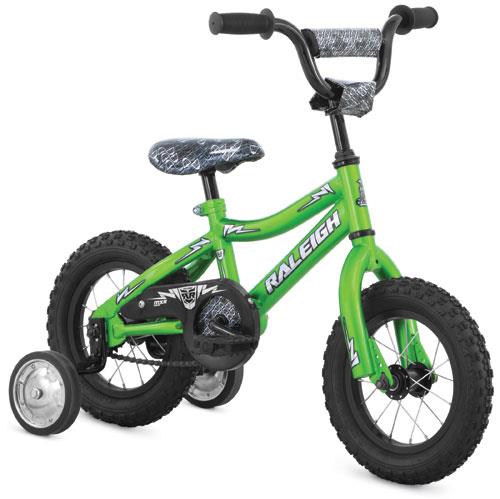

2010 Raleigh MXR Micro
Juvenile bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- 12" Boys
- Colors
- Electric Green
- Archive ID
- 21059
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Hi-tensile |
|---|
| Fork | BMX Style |
|---|
| Fork Material | Hi-Ten, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Juvenile Mix |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Steel 1-piece 5", 36 teeth |
|---|
| Bottom Bracket | 9 Piece Loose Ball |
|---|
| Cassette | Freewheel |
|---|
| Rear Cogs | 1-speed, 18 teeth |
|---|
| Chain | KMC Z410 |
|---|
| Pedals | Jr. Resin Platform |
|---|
Brakes
| Brakes | None front/coaster brake rear |
|---|
Cockpit & Contact Points
| Headset | 1" threaded |
|---|
| Handlebar | Steel BMX Style |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Steel 2-bolt quill |
|---|
| Saddle | Jr BMX Padded |
|---|
| Seatpost | Steel pillar, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Steel Nutted, Rear: Steel Nutted Coaster |
|---|
| Rims | Alloy, 16-hole |
|---|
| Spokes | 14ga. (2.0mm) |
|---|
| Front Tire | 20 x 2.125" Comp III style |
|---|
| Wheel Size | 20" wheels |
|---|
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
