Velopedia Bicycle Archive

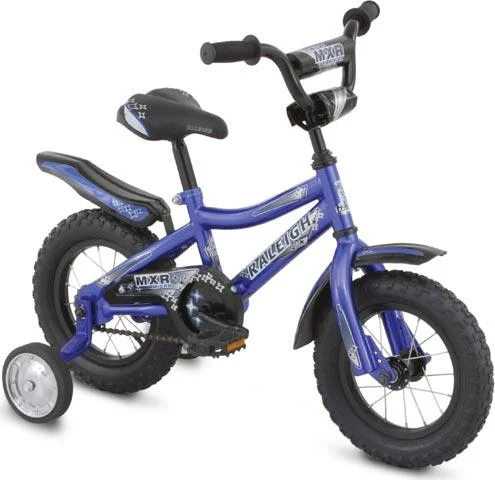

2008 Raleigh MXR Micro
Juvenile bicycle from the Velopedia specification archive.
- Original MSRP
- $105.00
- Sizes
- 12" wheel
- Colors
- Blue
- Archive ID
- 24135
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Action Curve BMX Hi-Tensile Steel |
|---|
| Fork | Raleigh |
|---|
| Fork Material | Hi-tensile steel, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Juvenile Mix |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | 3-1/2" Opc Steel, 28 teeth |
|---|
| Bottom Bracket | 8pc Loose Ball |
|---|
| Rear Cogs | 1-speed, 18 teeth |
|---|
| Chain | KMC Z410 |
|---|
| Pedals | Jr. Resin Platform |
|---|
Cockpit & Contact Points
| Headset | 1" threaded Uspecified |
|---|
| Handlebar | Steel BMX-style |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Steel 2-bolt |
|---|
| Saddle | Jr. BMX padded |
|---|
| Seatpost | Steel Pillar, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Steel Nutted, Rear: Steel Nutted Coaster |
|---|
| Rims | Alloy, 16-hole |
|---|
| Spokes | 14ga. (2.0mm) straight gauge |
|---|
| Front Tire | 12 x 2.125" Comp III-style |
|---|
| Wheel Size | 12" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
