Lowest0.69:1
Highest3.82:1
Total range555%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.2; rear size isn’t listed.
Velopedia Bicycle Archive

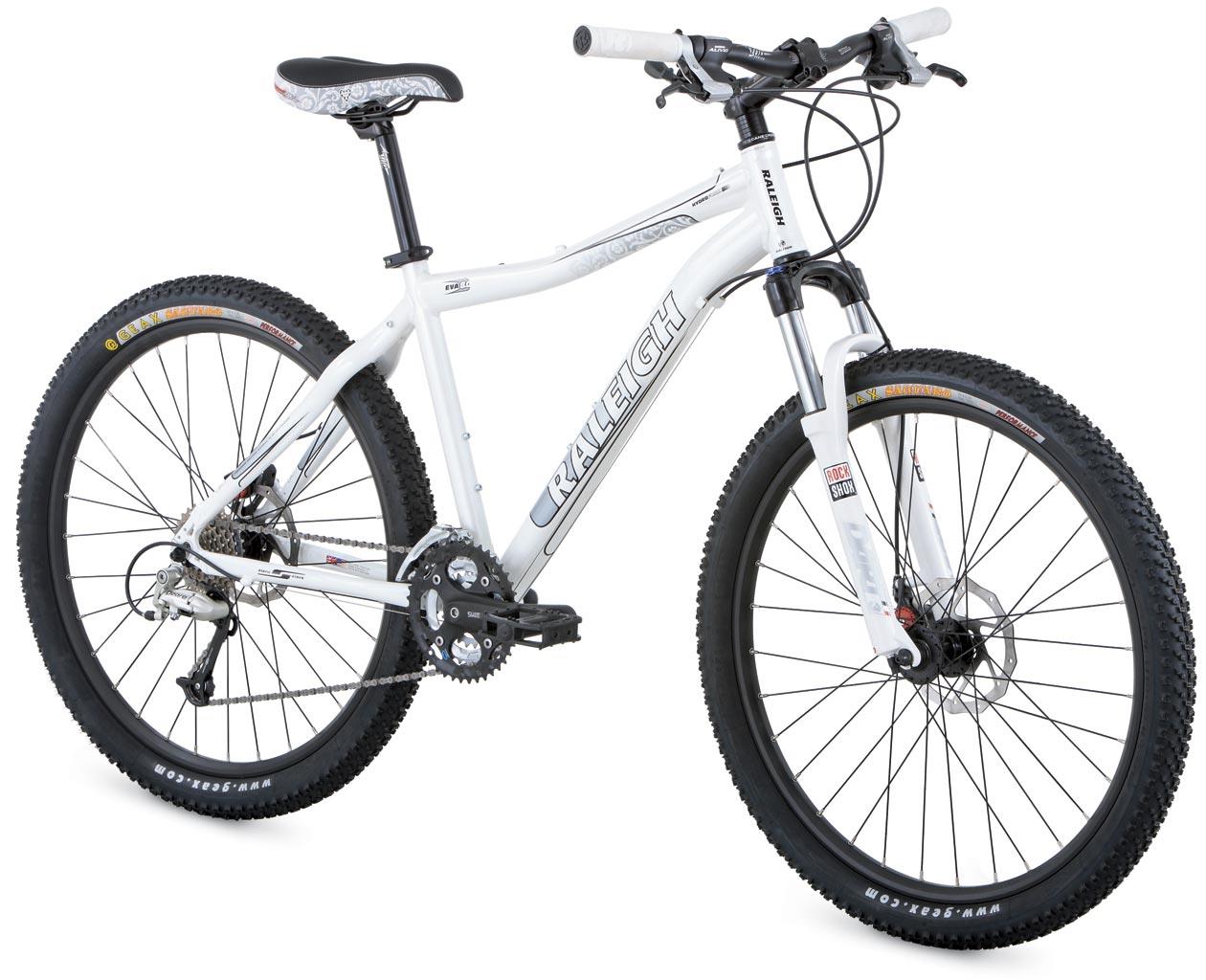

2009 Raleigh Eva 8.0
Original specifications: Shimano Deore · 8-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #18361- Model year
- 2009
- Category
- Mountain
- Sizes
- Womens 13", womens 15", womens 17", womens 19"
- Colors
- Pearl White/Silver
- In this record
- 26 specifications · archived image

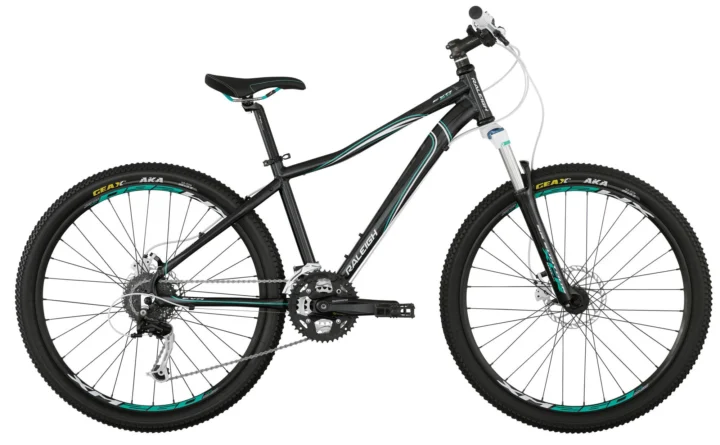

Model history 2 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Pearl White/Silver
- Frame
- Atomic 13 SL Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAtomic 13 SL Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 SL Aluminum |
| Fork | Rock Shox Dart 3, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Alivio |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano MC361, 22/32/42 teeth |
| Bottom Bracket | Shimano Octalink |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC HG40, 1/2 x 3/32" |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Avid BB-5 mechanical disc w/160mm rotor brakes, Avid FR-5 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ahead 1 1/8" |
|---|---|
| Handlebar | Avenir 100 Series Riser |
| Handlebar Extensions | Not included |
| Stem | Avenir 100 31.8mm clamp |
| Saddle | WTB Speed She |
| Seatpost | Avenir 100 Series, 27.2mm diameter |
Wheels & Tires
| Hubs | JoyTech disc |
|---|---|
| Rims | Weinmann XM-260, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.20" Geax Saguaro |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC HG40
1/2 x 3/32"
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Avenir 100 Series
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano HG40
More parts (7)Fewer parts
26 x 2.20" Geax Saguaro
Replacement search: 26x2.2 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano Octalink
WTB Speed She
Shimano MC361
22/32/42 teeth
Shimano Acera
Shimano Deore
Shimano Alivio
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.20" Geax Saguaro
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano Octalink
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Rock Shox Dart 3, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Rock Shox Dart 3, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Alivio · Front derailleur: Shimano Acera · Rear derailleur: Shimano Deore · Crankset: Shimano MC361, 22/32/42 teeth · Bottom bracket: Shimano Octalink · Cassette: Shimano HG40 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC HG40, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid BB-5 mechanical disc w/160mm rotor brakes, Avid FR-5 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann XM-260, 32-hole · Hubs: JoyTech disc · Front tire: 26 x 2.20" Geax Saguaro
Controls and contact points
Archived: Headset: 1 1/8" threadless Ahead 1 1/8" · Handlebar: Avenir 100 Series Riser · Stem: Avenir 100 31.8mm clamp · Seatpost: Avenir 100 Series, 27.2mm diameter · Saddle: WTB Speed She · Pedals: Avenir ATB Resin Platform
