Velopedia Bicycle Archive

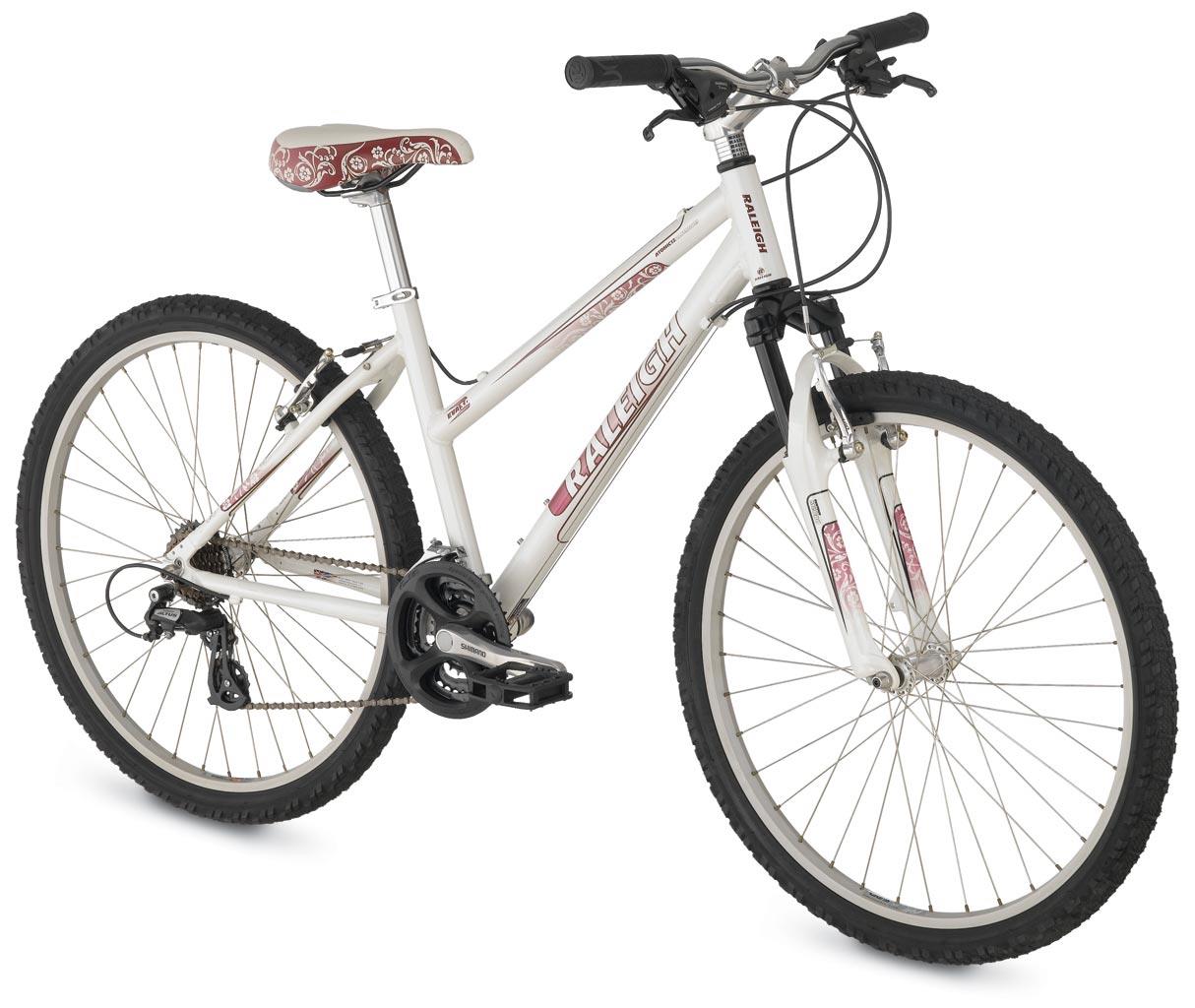

2009 Raleigh Eva 3.0
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $360.00
- Sizes
- Womens 12", womens 14", womens 16", womens 19"
- Colors
- Pearl White/Ruby
- Archive ID
- 18363
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Spinner Grind 1, 80mm |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-50 |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano Altus |
| Crankset | Shimano FC-M151, 22/32/42 teeth |
| Bottom Bracket | Sealed Mech 8pc |
| Cassette | Shimano MF-TZ21 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51, 1/2 x 3/32" |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Tektro Alloy V-brake brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ahead 1 1/8" |
|---|---|
| Handlebar | Steel 40mm rise |
| Handlebar Extensions | Not included |
| Stem | Alloy Ahead 4-bolt |
| Saddle | Eva Woman's |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann CN520, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda K-879 |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
