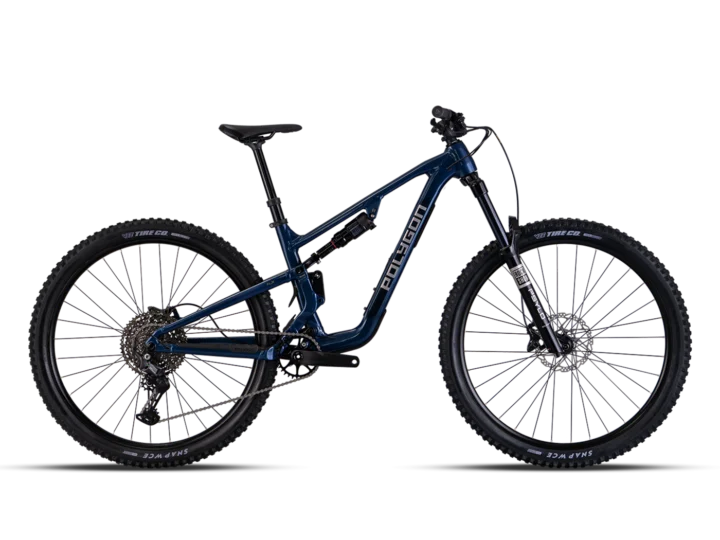

2026 Polygon Collosus T5

Archived: Frame: ALX TRAIL · Fork: ROCKSHOX PSYLO SILVER RC 160mm

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: ROCKSHOX PSYLO SILVER RC 160mm · Rear shock: ROCKSHOX DELUXE SELECT, E2E: 210x55mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SHIMANO CUES SL-U6000-11R, 11-SPEED TRIGGER · Rear derailleur: SHIMANO CUES RD-U6000-GS DIRECT ATTACH · Crankset: SAMOX RAC61C CL55, 32T · Bottom bracket: SAMOX EB2401C BSA THREADED 73mm · Cassette: SHIMANO CUES CS-LG400-11, 11-50T · Chain: KMC XGLIDE

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SHIMANO MT420 HYDRAULIC DISC; Levers: SHIMANO BL-M4100; Rotors: SHIMANO SM-RT54, 180mm CL

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheels: POLYGON MT6 TUBELESS READY · Rims: ALLOY DOUBLE WALL H: 18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY · Hubs: F: SHIMANO HB-TC-500 BOOST 15x110mm 32H CL, R: SHIMANO FH-TC500 BOOST 12x148mm 32H CL FOR SPROCKET · Front tire: VEE SNAP WCE 29"x2.35" · Rear tire: VEE SNAP WCE 29"x2.35"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA NO.76 ALLOY TOP COVER, THREADLESS, ZS 51/28.6 | ZS 59/40 · Handlebar: POLYGON XPERT, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree · Stem: POLYGON XPERT, E: 35mm, BB: 35mm, R/D: 0degree · Seatpost: DROPPER POST XFUSION MANIC LC 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 432mm (S, M) / 474mm (L, XL) · Saddle: FIZIK TERRA ALPACA X5 · Pedals: ALLOY FLAT PEDAL W/ REPLACEABLE PIN & REFLECTOR

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.
