Velopedia Bicycle Archive

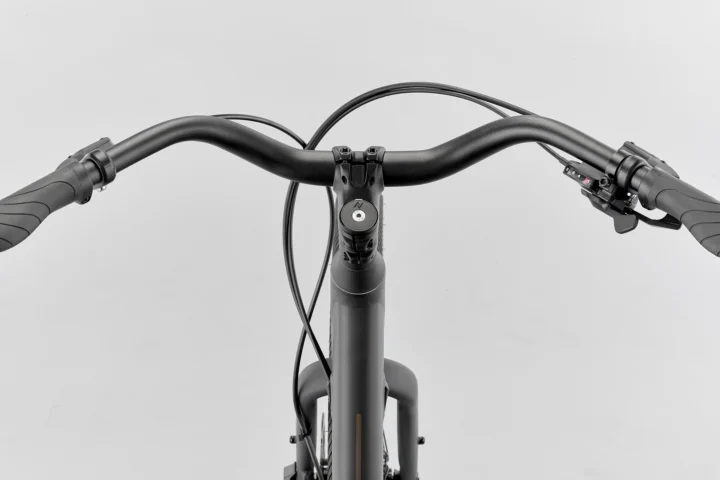

2025 Norco Scene 1
Original manufacturer specifications including 650b wheels, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Hybrid
- Original MSRP
- $759.00
- Sizes
- S, M, L, XL
- Colors
- Black
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 5 archived images · original MSRP · preserved geometry
- Archive ID
- 900001303
Frameset
| Frame Construction | Aluminum w/Smooth Welds |
|---|---|
| Frame Material | Aluminum |
| Fork | Hi-Tensile Steel, 100mm QR, IS Disc |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano CUES 9 SL-U4000, 9sp, Rapid Fire |
|---|---|
| Rear Derailleur | Shimano CUES 9 RD-U4000, 9sp, Direct mount |
| Crankset | Aluminum 36T, CL44, 165mm (S) - 170mm (M/L/XL) |
| Bottom Bracket | Cartridge Bearing, Square Taper 68mmx103mm |
| Cassette | Shimano CUES 9 CS-LG300, 11-46T, 9sp |
| Chain | KMC X11, 11sp |
| Pedals | VP City Pedal, 9/16" |
Brakes
| Brakes | (F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads; Rotors: (F) Tektro, 160mm, 6-Bolt / (R) Tektro, 160mm, 6-Bolt; Levers: Tektro HD-M275 |
|---|
Cockpit & Contact Points
| Headset | Semi-Integrated, 1-1/8" ( ZS44/28.6 | ZS44/30 ) |
|---|---|
| Handlebar | Norco Scene Aluminum, 660mm, 60mm Rise, 30Deg Backsweep |
| Stem | Aluminum, 70mm (SM/MD) - 80mm (L/XL), 17deg Riser, 31.8 clamp |
| Saddle | Scene Comfort Saddle w/Elastomer Suspension, 225mm W x 269mm L |
| Seatpost | Aluminum 27.2mm ID, 350mm Length |
Wheels & Tires
| Hubs | (F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt |
|---|---|
| Rims | Double Wall Aluminum, 32h, F/R 27.5" |
| Front Tire | Kenda Kwick Seven5, 27.5x2.2", Wire |
| Rear Tire | Kenda Kwick Seven5, 27.5x2.2", Wire |
| Wheel Size | 650b |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S · 650b | M · 650b | L · 650b | XL · 650b |
|---|---|---|---|---|
| Seat tube | 375 mm | 425 mm | 475 mm | 525 mm |
| Effective top tube | 605 mm | 620 mm | 635 mm | 650 mm |
| Head tube | 170 mm | 190 mm | 210 mm | 230 mm |
| Head-tube angle | 69° | 69° | 69° | 69° |
| Seat-tube angle | 67.5° | 67.5° | 67.5° | 67.5° |
| Chainstay / rear center | 470 mm | 470 mm | 475 mm | 475 mm |
| Wheelbase | 1080 mm | 1094 mm | 1114 mm | 1128 mm |
| Bottom-bracket drop | -67.5 mm | -67.5 mm | -67.5 mm | -67.5 mm |
| Bottom-bracket height | 284.5 mm | 284.5 mm | 284.5 mm | 284.5 mm |
| Reach | 357 mm | 364 mm | 372 mm | 379 mm |
| Stack | 599 mm | 617 mm | 636 mm | 655 mm |
| Standover height | 428 mm | 428 mm | 428 mm | 428 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheel size | 650b | 650b | 650b | 650b |
Geometry source: Norco first-party embedded geometry data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S · 650b geometry
Archive context: Its bottom-bracket drop of -67.5 mm sits toward the shallower-drop end. Its reach of 357 mm sits toward the shorter end. The seat angle of 67.5° sits toward the more relaxed end.
Compared with 24 distinct hybrid geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 650b geometry M · 650b geometry
Archive context: Its bottom-bracket drop of -67.5 mm sits toward the shallower-drop end. Its reach of 364 mm sits toward the shorter end. The seat angle of 67.5° sits toward the more relaxed end.
Compared with 26 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · 650b geometry L · 650b geometry
Archive context: Its bottom-bracket drop of -67.5 mm sits toward the shallower-drop end. Its reach of 372 mm sits toward the shorter end. The seat angle of 67.5° sits toward the more relaxed end.
Compared with 24 distinct hybrid geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · 650b geometry XL · 650b geometry
Archive context: Its reach of 379 mm sits toward the shorter end. Its bottom-bracket drop of -67.5 mm sits toward the shallower-drop end. The seat angle of 67.5° sits toward the more relaxed end.
Compared with 19 distinct hybrid geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · 650b geometry Parts & serviceability
Find replacement parts
KMC X11, 11sp
Exact archived model
Shimano CUES 9 CS-LG300, 11-46T, 9sp
Exact archived model
Kenda Kwick Seven5, 27.5x2.2", Wire
Named tire and published size
More qualified parts (5)
(F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads
Brake model identified — verify pad shape
Shimano CUES 9 RD-U4000, 9sp, Direct mount
Exact archived model
Shimano CUES 9 SL-U4000, 9sp, Rapid Fire
Exact archived model
27.2 mm seatpost
Published diameter — verify length and setback
ZS44/28.6 | ZS44/30
Published headset interfaces — verify stack height and frame clearance
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Norco Scene 1 · Hybrid · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum w/Smooth Welds · Fork: Hi-Tensile Steel, 100mm QR, IS Disc · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES 9 SL-U4000, 9sp, Rapid Fire · Rear derailleur: Shimano CUES 9 RD-U4000, 9sp, Direct mount · Crankset: Aluminum 36T, CL44, 165mm (S) - 170mm (M/L/XL) · Bottom bracket: Cartridge Bearing, Square Taper 68mmx103mm · Cassette: Shimano CUES 9 CS-LG300, 11-46T, 9sp · Chain: KMC X11, 11sp
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads; Rotors: (F) Tektro, 160mm, 6-Bolt / (R) Tektro, 160mm, 6-Bolt; Levers: Tektro HD-M275
Wheels and tires
Check wheels and tires →Archived: Wheel size: 650b · Rims: Double Wall Aluminum, 32h, F/R 27.5" · Hubs: (F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt · Front tire: Kenda Kwick Seven5, 27.5x2.2", Wire · Rear tire: Kenda Kwick Seven5, 27.5x2.2", Wire
Controls and contact points
Archived: Headset: Semi-Integrated, 1-1/8" ( ZS44/28.6 | ZS44/30 ) · Handlebar: Norco Scene Aluminum, 660mm, 60mm Rise, 30Deg Backsweep · Stem: Aluminum, 70mm (SM/MD) - 80mm (L/XL), 17deg Riser, 31.8 clamp · Seatpost: Aluminum 27.2mm ID, 350mm Length · Saddle: Scene Comfort Saddle w/Elastomer Suspension, 225mm W x 269mm L · Pedals: VP City Pedal, 9/16"
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
