2025 Norco Bigfoot 1
Original specifications: 27.5" wheels · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000832- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $1,999.00
- Sizes
- S, M, L, XL
- Colors
- Green
- Geometry
- 4 manufacturer sizes
- In this record
- 22 specifications · 8 archived images · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2025 archived details
- Published colors
- Green
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · 27.5"
Frameset
| Frame Construction | X6 Alloy Double Butted |
|---|---|
| Frame Material | Aluminum |

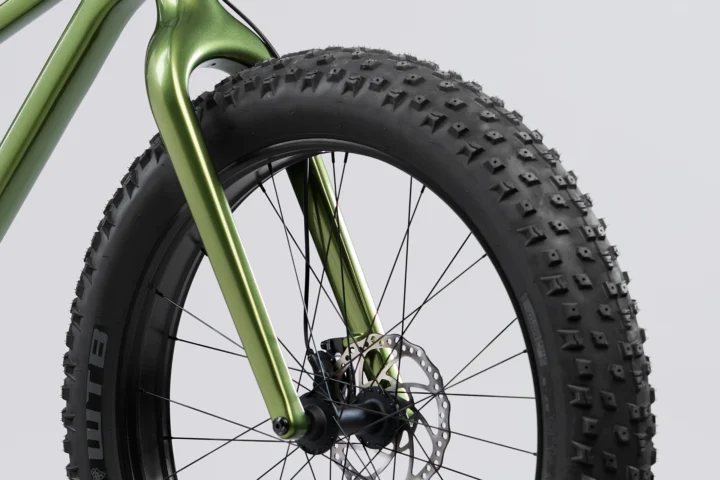

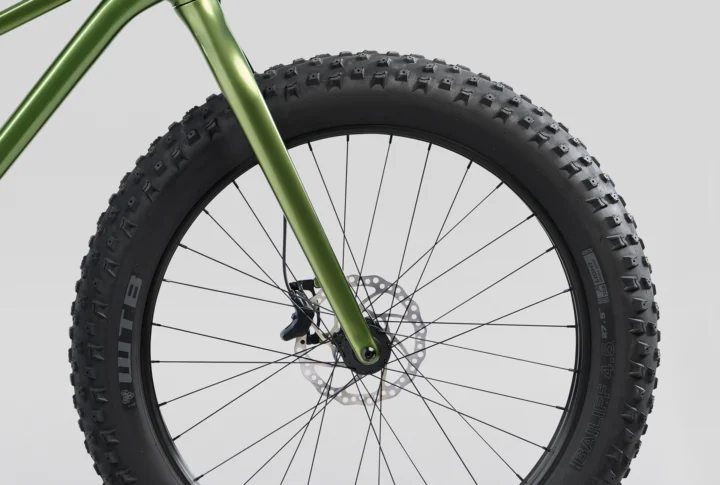

| Fork | Carbon, 15x150mm FAT |
| Fork Material | Carbon Fiber |

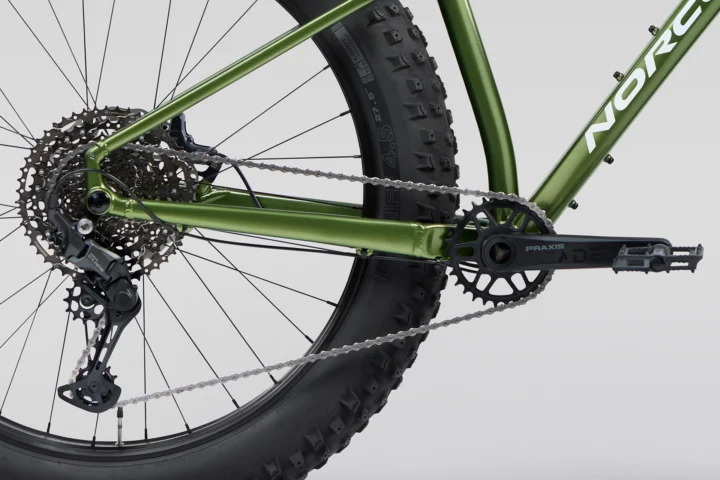

Drivetrain
| Shifters | Shimano CUES, SL-U6000 Rapidfire Plus, 11sp |
|---|---|
| Rear Derailleur | Shimano CUES RD-U6000, 11spd |
| Crankset | Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL) |
| Bottom Bracket | Praxis M30 BSA Threaded |
| Cassette | Shimano CUES LG-400, 11-50T, 11sp |
| Chain | Shimano LG-500, 11sp |
| Pedals | Wellgo Nylon Flat Pedal |
Brakes
| Brakes | (F) Tektro HD-M535 4 Piston, Resin Pads / (R) Tektro HD-M535 4 Piston, Resin Pads; Rotors: (F) Tektro TR180-17, 180mm, 2.3mm / (R) Tektro TR180-17, 180mm, 2.3mm; Levers: Tektro HD-M535 |
|---|
Cockpit & Contact Points

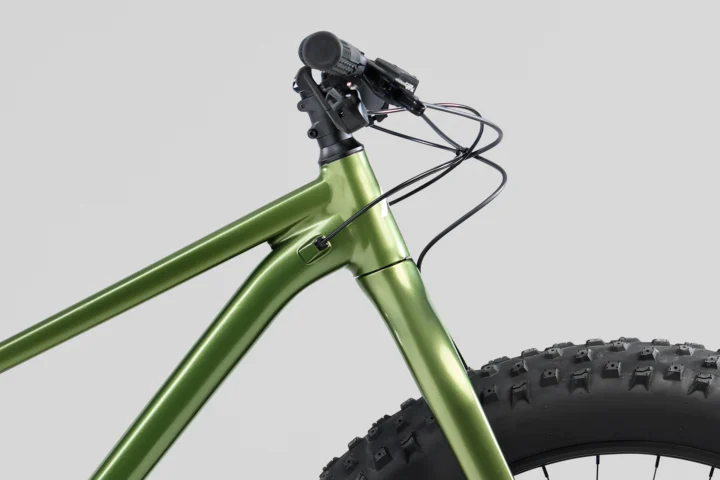

| Headset | Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
|---|---|

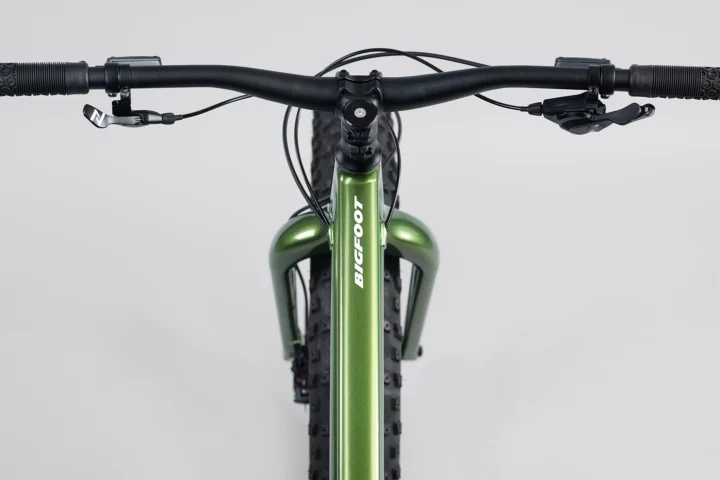

| Handlebar | 6061 Alloy DB 780mm, 30mm Rise |
| Stem | Alloy 50mm Length, 35mm Clamp |
| Saddle | SDG Bel Air V3 |
| Seatpost | TranzX JD-YSP23J/L Dropper, 31.6mm, 125mm (S), 150mm (M), 170mm (L, XL) |
Wheels & Tires
| Hubs | (F) KT M9CF 15x150mm FAT, 32H, 6 bolt / (R) KT-M9CR, 12x197mm FAT, HG, 32H, 6 Bolt |
|---|---|
| Rims | WTB ST I76 27.5", 32H |
| Front Tire | WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire |
| Rear Tire | WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire |
| Wheel Size | 27.5" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 17 measurements
| Measurement | S · 27.5" | M · 27.5" | L · 27.5" | XL · 27.5" |
|---|---|---|---|---|
| Seat tube | 400 mm | 425 mm | 450 mm | 500 mm |
| Effective top tube | 586 mm | 616 mm | 648 mm | 681 mm |
| Head tube | 100 mm | 100 mm | 110 mm | 120 mm |
| Head-tube angle | 69° | 69° | 69° | 69° |
| Seat-tube angle | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1113 mm | 1143 mm | 1177 mm | 1210 mm |
| Bottom-bracket drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Bottom-bracket height | 332 mm | 332 mm | 332 mm | 332 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Stack | 612 mm | 612 mm | 621 mm | 631 mm |
| Standover height | 675 mm | 676 mm | 690 mm | 718 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Crank length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
11-50T, 11sp

Shimano CUES CS-LG700 11-Speed Cassette Silver, 11-50T
Specification match
More parts (5)Fewer parts
32T, 170mm (S), 175mm (M, L, XL)
SL-U6000 Rapidfire Plus, 11sp
32H
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire
- Rear tire
- WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire
- Drivetrain
- 11-speed
- Bottom bracket / shell
- Praxis M30 BSA Threaded
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: X6 Alloy Double Butted · Fork: Carbon, 15x150mm FAT · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES, SL-U6000 Rapidfire Plus, 11sp · Rear derailleur: Shimano CUES RD-U6000, 11spd · Crankset: Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL) · Bottom bracket: Praxis M30 BSA Threaded · Cassette: Shimano CUES LG-400, 11-50T, 11sp · Chain: Shimano LG-500, 11sp
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro HD-M535 4 Piston, Resin Pads / (R) Tektro HD-M535 4 Piston, Resin Pads; Rotors: (F) Tektro TR180-17, 180mm, 2.3mm / (R) Tektro TR180-17, 180mm, 2.3mm; Levers: Tektro HD-M535
Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5" · Rims: WTB ST i76 27.5", 32H · Hubs: (F) KT M9CF 15x150mm FAT, 32H, 6 bolt / (R) KT-M9CR, 12x197mm FAT, HG, 32H, 6 Bolt · Front tire: WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire · Rear tire: WTB Bailiff 4.5 x 27.5” TCS Light/High Grip 120tpi DNA tire
Controls and contact points
Archived: Headset: Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) · Handlebar: 6061 Alloy DB 780mm, 30mm Rise · Stem: Alloy 50mm Length, 35mm Clamp · Seatpost: TranzX JD-YSP23J/L Dropper, 31.6mm, 125mm (S), 150mm (M), 170mm (L, XL) · Saddle: SDG Bel Air V3 · Pedals: Wellgo Nylon Flat Pedal
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
