2025 Norco Charger A2
Original manufacturer specifications including 27.5"; 29" wheels, 13.61 kg (30.1 lbs) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $1,249.00
- Sizes
- S, M, L, XL, XXL
- Colors
- Silverton
- Weight
- 13.61 kg (30.1 lbs)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001329
Model history 1 other year
Frameset
| Frame Construction | Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT, UDH Hanger |
|---|---|
| Frame Material | Aluminum |

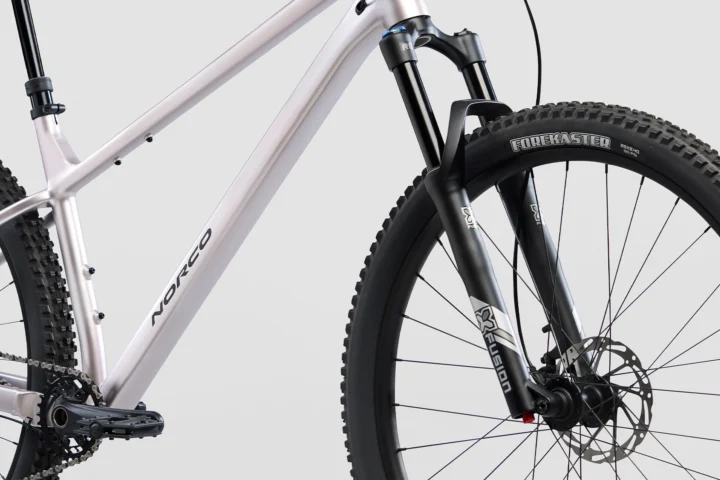

| Fork | X-fusion RC32 Air, 130mm, 15x110mm Boost |

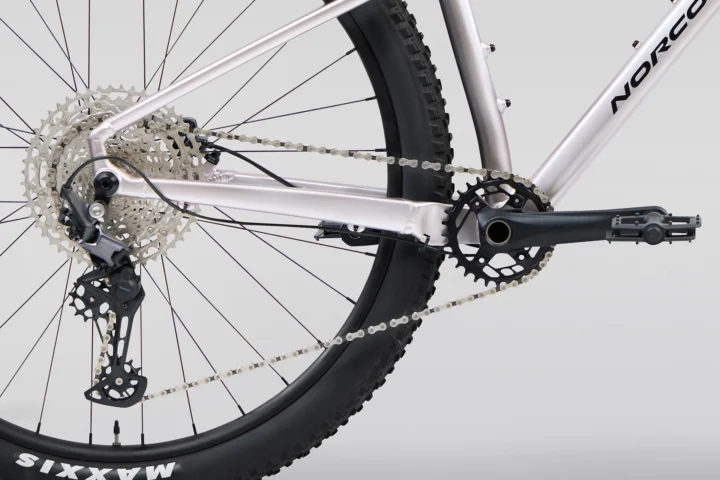

Drivetrain
| Shifters | Shimano Deore SL-M6100-R, 12sp |
|---|---|
| Rear Derailleur | Shimano Deore RD-M6100, 12sp, SGS |
| Crankset | Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL) |
| Bottom Bracket | Shimano Cartridge BB for 2 pc crank |
| Cassette | Shimano Deore CS-M6100, 10-51T, 12sp |
| Chain | KMC 12spd |
| Pedals | Nylon Flat Pedal |
Brakes
| Brakes | (F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads; Rotors: (F) Tektro. 160mm, 6-bolt / (R) Tektro. 160mm, 6-bolt; Levers: Tektro HD-M275 |
|---|

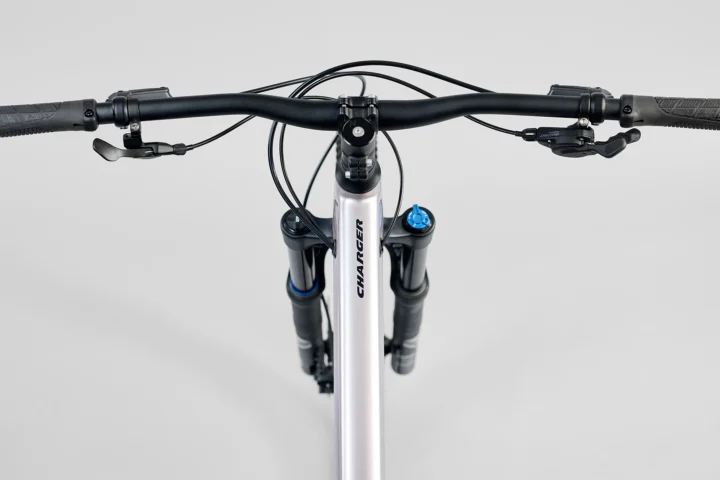

Cockpit & Contact Points
| Headset | Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
|---|---|
| Handlebar | Norco Aluminum, 780mm, 30mm Rise |
| Stem | Alloy 40mm Length, 31.8mm Clamp |
| Saddle | Norco XC, Steel Rail |
| Seatpost | X-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL) |
Wheels & Tires
| Hubs | (F) Formula Sealed Bearing 110x15 32H / (R) Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt |
|---|---|
| Rims | WTB ST TCS 2.0, 27mm ID, 32H |
| Front Tire | Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire |
| Rear Tire | Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire |
| Wheel Size | 27.5"; 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S · 27.5" | M · 29" | L · 29" | XL · 29" | XXL · 29" |
|---|---|---|---|---|---|
| Seat tube | 370 mm | 400 mm | 430 mm | 480 mm | 530 mm |
| Effective top tube | 585 mm | 617 mm | 646 mm | 675 mm | 705 mm |
| Head tube | 140 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Head-tube angle | 65° | 65° | 65° | 65° | 65° |
| Seat-tube angle | 75° | 75.25° | 75.5° | 75.75° | 76° |
| Chainstay / rear center | 425 mm | 430 mm | 430 mm | 435 mm | 435 mm |
| Wheelbase | 1162 mm | 1203 mm | 1237 mm | 1277 mm | 1311 mm |
| Bottom-bracket drop | 34 mm | 54 mm | 54 mm | 54 mm | 54 mm |
| Bottom-bracket height | 324 mm | 324 mm | 324 mm | 324 mm | 324 mm |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Stack | 617 mm | 633 mm | 642 mm | 651 mm | 661 mm |
| Standover height | 616 mm | 667 mm | 667 mm | 709 mm | 744 mm |
| Fork offset / rake | 42 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm | 121 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheel size | 27.5" | 29" | 29" | 29" | 29" |
Geometry source: Norco first-party embedded geometry data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
27.5"
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. The seat angle of 75° sits somewhat more relaxed than typical. Its reach of 420 mm sits somewhat shorter than typical.
Compared with 195 distinct mountain geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 27.5" geometry M geometry
29"
Archive context: Its stack of 633 mm sits toward the taller end. The chainstay of 430 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 54 mm sits somewhat deeper than typical.
Compared with 199 distinct mountain geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · 29" geometry L geometry
29"
Archive context: The chainstay of 430 mm sits toward the shorter rear-center end. Its stack of 642 mm sits toward the taller end. Its bottom-bracket drop of 54 mm sits somewhat deeper than typical.
Compared with 193 distinct mountain geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · 29" geometry XL geometry
29"
Archive context: Its stack of 651 mm sits somewhat taller than typical. Its bottom-bracket drop of 54 mm sits somewhat deeper than typical. Its reach of 510 mm sits somewhat longer than typical.
Compared with 166 distinct mountain geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · 29" geometry XXL geometry
29"
Archive context: Its reach of 540 mm sits toward the longer end. The chainstay of 435 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 54 mm sits toward the deeper-drop end.
Compared with 23 distinct mountain geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL · 29" geometry Parts & serviceability
Find replacement parts
Shimano Deore CS-M6100, 10-51T, 12sp
Interpreted as Shimano Deore · 12-speed Exact archived model
(F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads
Brake model identified — verify pad shape
Shimano Cartridge BB for 2 pc crank
Named archived component — verify dimensions
More qualified parts (3)
Shimano Deore RD-M6100, 12sp, SGS
Interpreted as Shimano Deore · 12-speed Exact archived model
Shimano Deore SL-M6100-R, 12sp
Interpreted as Shimano Deore · 12-speed Exact archived model
WTB ST TCS 2.0, 27mm ID, 32H
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Norco Charger A2 · Mountain · Published sizes: S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT, UDH Hanger · Fork: X-fusion RC32 Air, 130mm, 15x110mm Boost
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore SL-M6100-R, 12sp · Rear derailleur: Shimano Deore RD-M6100, 12sp, SGS · Crankset: Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL) · Bottom bracket: Shimano Cartridge BB for 2 pc crank · Cassette: Shimano Deore CS-M6100, 10-51T, 12sp · Chain: KMC 12spd
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro HD-M275, Resin pads / (R) Tektro HD-M275, Resin pads; Rotors: (F) Tektro. 160mm, 6-bolt / (R) Tektro. 160mm, 6-bolt; Levers: Tektro HD-M275
Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5"; 29" · Rims: WTB ST TCS 2.0, 27mm ID, 32H · Hubs: (F) Formula Sealed Bearing 110x15 32H / (R) Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt · Front tire: Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire · Rear tire: Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire
Controls and contact points
Archived: Headset: Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) · Handlebar: Norco Aluminum, 780mm, 30mm Rise · Stem: Alloy 40mm Length, 31.8mm Clamp · Seatpost: X-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL) · Saddle: Norco XC, Steel Rail · Pedals: Nylon Flat Pedal
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
