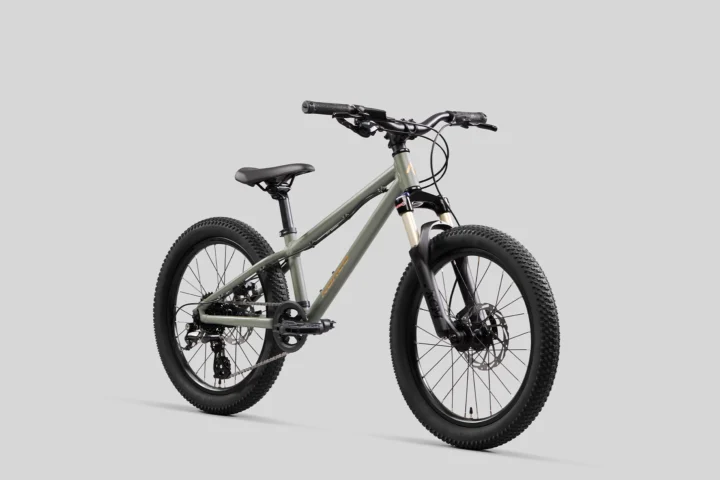

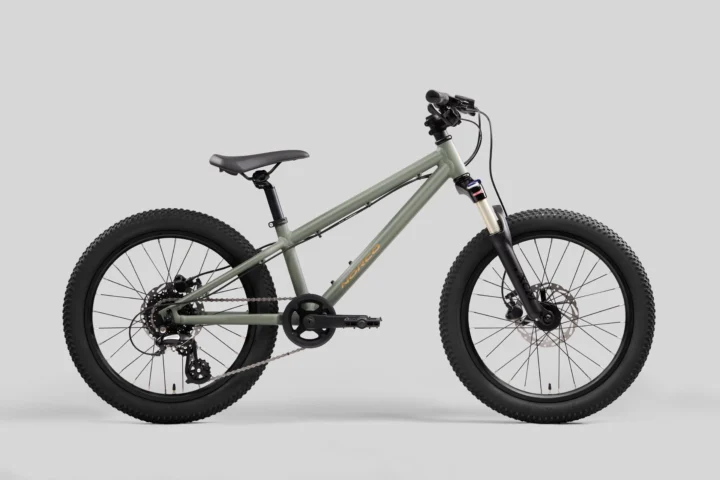

2025 Norco Charger Youth 20

Archived: Frame: Aluminum, 9x135mm QR, 20" · Fork: SR Suntour XCR Air w/LO, 63mm, 9X100 QR

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: SR Suntour XCR Air w/LO, 63mm, 9X100 QR

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano Altus SL-M315-8R, 8sp, Rapid Fire plus · Rear derailleur: Shimano Acera RD-M3020-8, 8sp, SGS · Crankset: Alloy 3pc 127mm, 28T Narrow Wide · Bottom bracket: Sealed bearing, ST 68mm · Cassette: Shimano Altus CS-HG31, 11-30T, 8sp · Chain: KMC Z9

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro HD-M286, Resin Pads / (R) Tektro HD-M286, Resin Pads; Rotors: (F) Tektro. 160mm rotor, 6-bolt / (R) Tektro. 160mm rotor, 6-bolt; Levers: Tektro HD-M286, Hydraulic 2-Finger Jr. Levers

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheel size: 20" · Rims: Aluminum DW, 28h, 20" MTB · Hubs: (F) Formula DC-1420 , 9x100mm QR, 28h, 6-bolt / (R) Formula DC-1425,10x135mm QR, HG, 28H, 6-bolt · Front tire: CY Trail, 20x2.25", Wire · Rear tire: CY Trail, 20x2.25", Wire

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

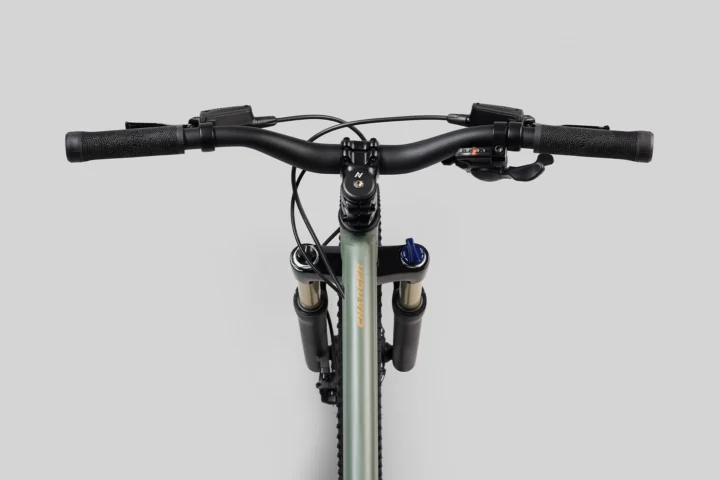

Archived: Headset: External Cup Ball Bearing, 1-1/8" EC 34 · Handlebar: Alloy Jr. Riser, 540mm, 30mm Rise · Stem: Alloy 35mm Length, 31.8mm Clamp · Seatpost: Norco Alloy 27.2mm, 250mm length · Saddle: Norco Youth, Steel Rail · Pedals: Jr. MTB Flat, 9/16"

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
