2024 Norco Optic C2
Original manufacturer specifications including 29"; 29"/27.5" wheels, 15.0 kg (33.1 lbs) published weight, geometry for 10 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2024
- Category
- Mountain
- Original MSRP
- $6,999.00
- Sizes
- 1, 2, 3, 4, 5
- Colors
- Grey
- Weight
- 15.0 kg (33.1 lbs)
- Geometry
- 10 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 4 archived images · original MSRP · preserved geometry
- Archive ID
- 900001363
Model history 1 other year
Frameset
| Frame Construction | Optic Carbon, VPS HP, 125mm Travel, UDH Compatible |
|---|---|
| Frame Material | Carbon Fiber |

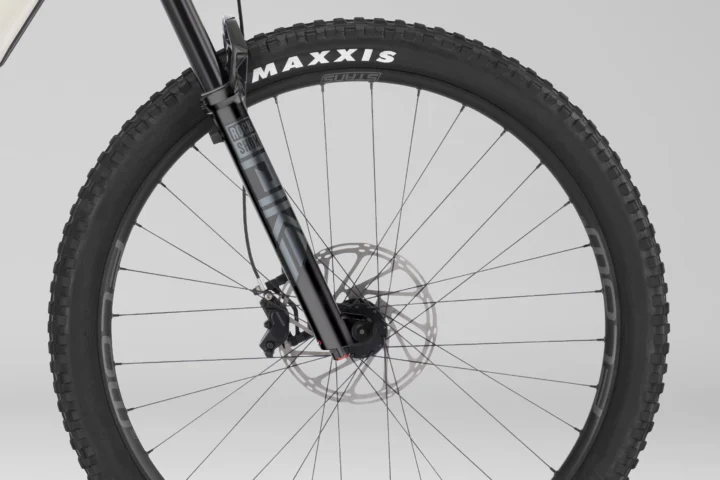

| Fork | RockShox Pike Select +, Charger 3 RC2, DebonAir+, 140mm Travel, 44mm Offset, Fender Included |
| Rear Shock | Fox FLOAT X Performance Elite, 2 Pos, 185x50mm Trunnion |

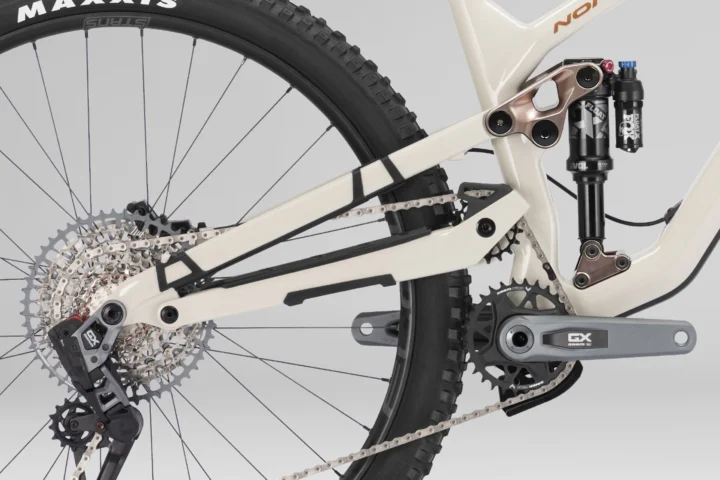

Drivetrain
| Shifters | SRAM Pod Controller |
|---|---|
| Rear Derailleur | SRAM GX Eagle AXS T-Type |
| Crankset | SRAM GX Eagle T-Type, DUB, 30T |
| Bottom Bracket | SRAM DUB BSA Threaded |
| Cassette | SRAM T-Type 1275 10-52T |
| Chain | SRAM GX Eagle T-Type |
Brakes
| Brakes | (F) SRAM Code R, 4-Piston, Sintered Pads / (R) SRAM Code R, 4-Piston, Sintered Pads; Rotors: (F) SRAM Centerline 200mm / (R) SRAM Centerline 180mm; Levers: SRAM Code R |
|---|
Cockpit & Contact Points
| Headset | FSA #57 E, Sealed Bearing |
|---|---|
| Handlebar | Deity Ridgeline 35, 800mm, 25mm rise |
| Stem | Alloy 40mm Length, 35mm Clamp |
| Saddle | Fizik Alpaca Terra, Wingflex |
| Seatpost | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) |
Wheels & Tires
| Hubs | (F) Race Face Trace, 15x110 Boost, 6-Bolt / (R) Race Face Trace, 12x148mm Boost, XD, 6-Bolt |
|---|---|
| Rims | Stan's Flow S2, Black, 32H |
| Front Tire | Maxxis Minion DHF 2.5" 3C MaxxTerra / EXO / TR, Folding |
| Rear Tire | Maxxis Dissector 2.4", 3C MaxxTerra / EXO / TR Folding |
| Wheel Size | 29"; 29"/27.5" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 1 · 29" | 2 · 29" | 3 · 29" | 4 · 29" | 5 · 29" | 1 · 29"/27.5" | 2 · 29"/27.5" | 3 · 29"/27.5" | 4 · 29"/27.5" | 5 · 29"/27.5" |
|---|---|---|---|---|---|---|---|---|---|---|
| Seat tube | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Effective top tube | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Head-tube angle | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Seat-tube angle | 76.5° | 76.75° | 77° | 77.25° | 77.5° | 76.5° | 76.75° | 77° | 77.25° | 77.5° |
| Chainstay / rear center | 421 mm | 425 mm | 429 mm | 433 mm | 437 mm | 415 mm | 419 mm | 423 mm | 427 mm | 431 mm |
| Wheelbase | 1159 mm | 1193 mm | 1226 mm | 1259 mm | 1292 mm | 1154 mm | 1188 mm | 1221 mm | 1254 mm | 1287 mm |
| Bottom-bracket drop | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | 32/11 | 32/11 | 32/11 | 32/11 | 32/11 |
| Bottom-bracket height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm |
| Standover height | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Geometry source: Norco first-party embedded geometry data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
1 geometry
Configuration
Archive context: The chainstay of 421 mm sits toward the shorter rear-center end. Its reach of 422.5 mm sits toward the longer end. Its wheelbase of 1159 mm sits toward the longer end.
Compared with 57 distinct mountain geometries in the XS-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 1 · 29" geometry Archive context: The chainstay of 415 mm sits toward the shorter rear-center end. Its reach of 422.5 mm sits toward the longer end. Its stack of 608 mm sits toward the taller end.
Compared with 57 distinct mountain geometries in the XS-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 1 · 29"/27.5" geometry 2 geometry
Configuration
Archive context: Its reach of 447.5 mm sits toward the longer end. The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1193 mm sits somewhat longer than typical.
Compared with 190 distinct mountain geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2 · 29" geometry Archive context: The chainstay of 419 mm sits toward the shorter rear-center end. Its reach of 447.5 mm sits toward the longer end. Its wheelbase of 1188 mm sits somewhat longer than typical.
Compared with 190 distinct mountain geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2 · 29"/27.5" geometry 3 geometry
Configuration
Archive context: Its reach of 472.5 mm sits toward the longer end. The chainstay of 429 mm sits toward the shorter rear-center end. Its wheelbase of 1226 mm sits somewhat longer than typical.
Compared with 190 distinct mountain geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 3 · 29" geometry Archive context: The chainstay of 423 mm sits toward the shorter rear-center end. Its reach of 472.5 mm sits toward the longer end. The seat angle of 77° sits somewhat steeper than typical.
Compared with 190 distinct mountain geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 3 · 29"/27.5" geometry 4 geometry
Configuration
Archive context: Its reach of 497.5 mm sits toward the longer end. The seat angle of 77.3° sits toward the steeper end. Its wheelbase of 1259 mm sits somewhat longer than typical.
Compared with 179 distinct mountain geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 4 · 29" geometry Archive context: Its reach of 497.5 mm sits toward the longer end. The chainstay of 427 mm sits toward the shorter rear-center end. The seat angle of 77.3° sits toward the steeper end.
Compared with 179 distinct mountain geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 4 · 29"/27.5" geometry 5 geometry
Configuration
Archive context: Its reach of 522.5 mm sits toward the longer end. The seat angle of 77.5° sits toward the steeper end. Its wheelbase of 1292 mm sits somewhat longer than typical.
Compared with 154 distinct mountain geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 5 · 29" geometry Archive context: Its reach of 522.5 mm sits toward the longer end. The chainstay of 431 mm sits toward the shorter rear-center end. The seat angle of 77.5° sits toward the steeper end.
Compared with 154 distinct mountain geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 5 · 29"/27.5" geometry Parts & serviceability
Find replacement parts
SRAM GX Eagle T-Type
Interpreted as SRAM GX · 12-speed Component family — verify exact version
SRAM T-Type 1275 10-52T
Named component · published drivetrain speed — verify exact version
SRAM DUB BSA Threaded
Named archived component — verify dimensions
More qualified parts (5)
Fizik Alpaca Terra, Wingflex
Named archived component — verify exact version
SRAM GX Eagle T-Type, DUB, 30T
Component family — verify exact version
SRAM GX Eagle AXS T-Type
Interpreted as SRAM GX · 12-speed · electronic Component family — verify exact version
34.9 mm dropper post
Dropper post identified — verify travel, routing and insertion depth
Stan's Flow S2, Black, 32H
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Norco Optic C2 · Mountain · Published sizes: 1, 2, 3, 4, 5
Frame and fork
Inspect the frame and fork →Archived: Frame: Optic Carbon, VPS HP, 125mm Travel, UDH Compatible · Fork: RockShox Pike Select +, Charger 3 RC2, DebonAir+, 140mm Travel, 44mm Offset, Fender Included
Suspension
Evaluate the suspension →Archived: Fork: RockShox Pike Select +, Charger 3 RC2, DebonAir+, 140mm Travel, 44mm Offset, Fender Included · Rear shock: Fox FLOAT X Performance Elite, 2 Pos, 185x50mm Trunnion
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Pod Controller · Rear derailleur: SRAM GX Eagle AXS T-Type · Crankset: SRAM GX Eagle T-Type, DUB, 30T · Bottom bracket: SRAM DUB BSA Threaded · Cassette: SRAM T-Type 1275 10-52T · Chain: SRAM GX Eagle T-Type
Brakes
Inspect the brakes →Archived: Brakes: (F) SRAM Code R, 4-Piston, Sintered Pads / (R) SRAM Code R, 4-Piston, Sintered Pads; Rotors: (F) SRAM Centerline 200mm / (R) SRAM Centerline 180mm; Levers: SRAM Code R
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29"; 29"/27.5" · Rims: Stan's Flow S2, Black, 32H · Hubs: (F) Race Face Trace, 15x110 Boost, 6-Bolt / (R) Race Face Trace, 12x148mm Boost, XD, 6-Bolt · Front tire: Maxxis Minion DHF 2.5" 3C MaxxTerra / EXO / TR, Folding · Rear tire: Maxxis Dissector 2.4", 3C MaxxTerra / EXO / TR Folding
Controls and contact points
Archived: Headset: FSA #57 E, Sealed Bearing · Handlebar: Deity Ridgeline 35, 800mm, 25mm rise · Stem: Alloy 40mm Length, 35mm Clamp · Seatpost: TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) · Saddle: Fizik Alpaca Terra, Wingflex
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

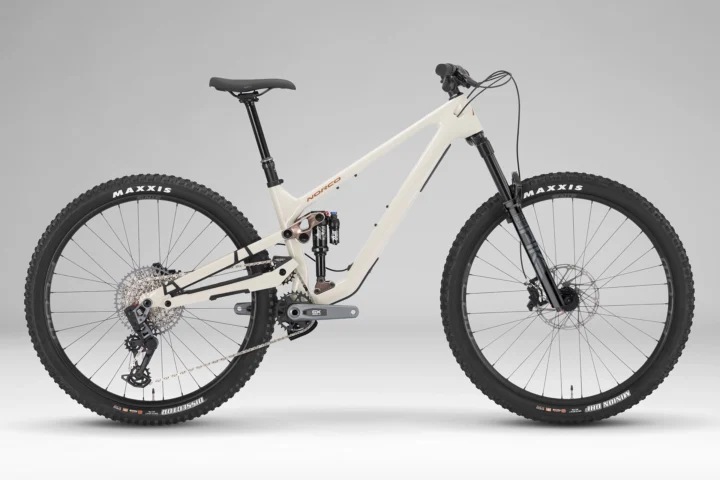

Gallery
