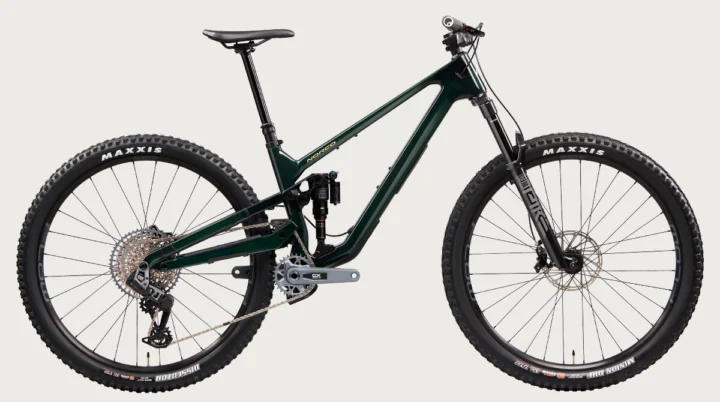

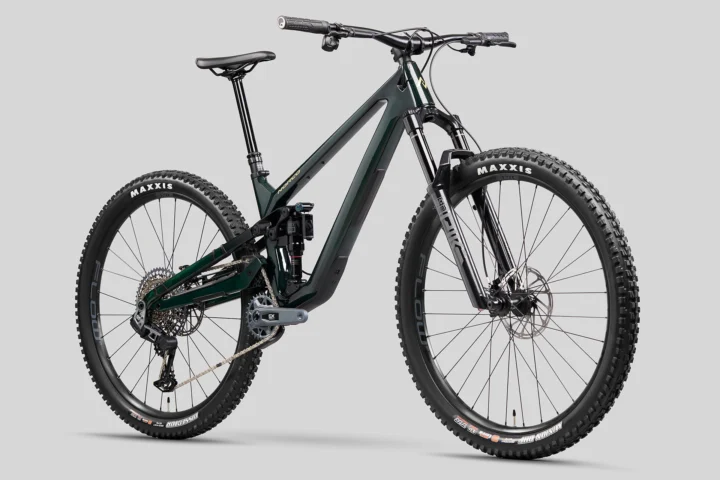

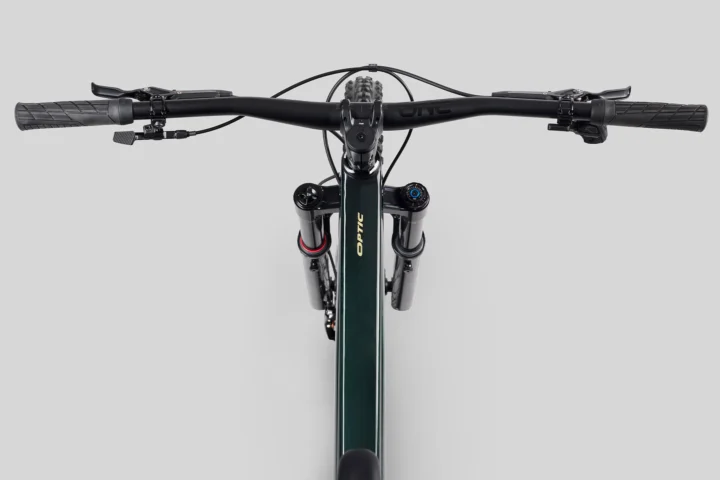

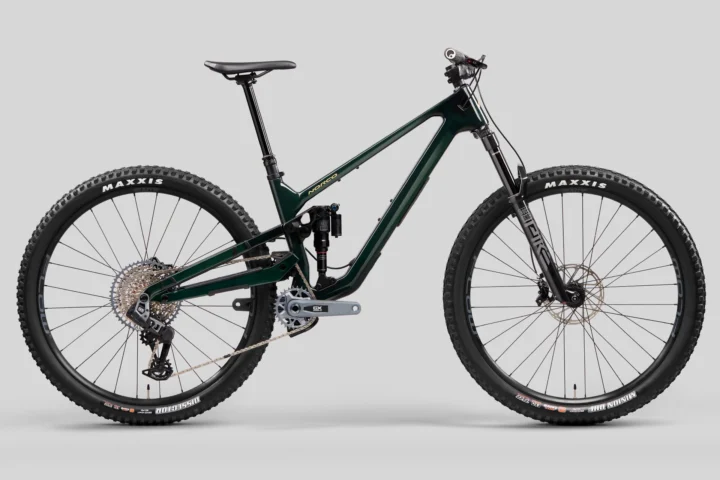

2025 Norco Optic C2

Original specifications: 29"; 29"/27.5" wheels · 15 kg (33.1 lbs) published weight · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001362
Model year
2025
Category
Mountain
Original MSRP
$6,999.00
Sizes
1, 2, 3, 4, 5
Colors
Raw Shore Green
Weight
15 kg (33.1 lbs)
Geometry
5 manufacturer sizes
In this record
21 specifications · 7 archived images · original MSRP · geometry
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2025 archived details

Published colors
Raw Shore Green
Frame
Carbon Fiber

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildCarbon Fiber · 29"; 29"/27.5"

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

12345

Published colors

Raw Shore Green

Frameset

Frame ConstructionCarbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Frame MaterialCarbon Fiber

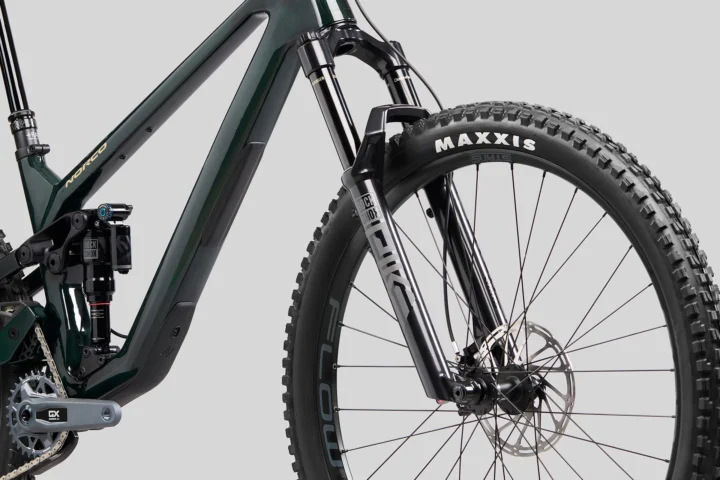

ForkRockshox Pike Select + Charger 3.1, 140mm, 44mm offset, Fender Included

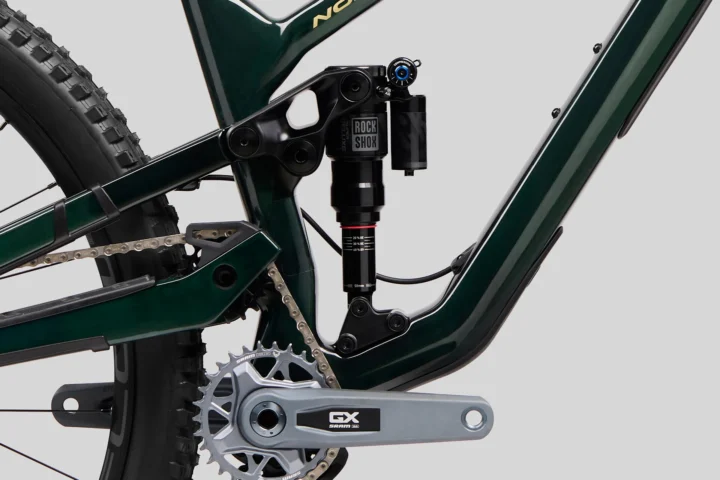

Rear ShockRockshox Super Deluxe Select +, 185x50mm TR

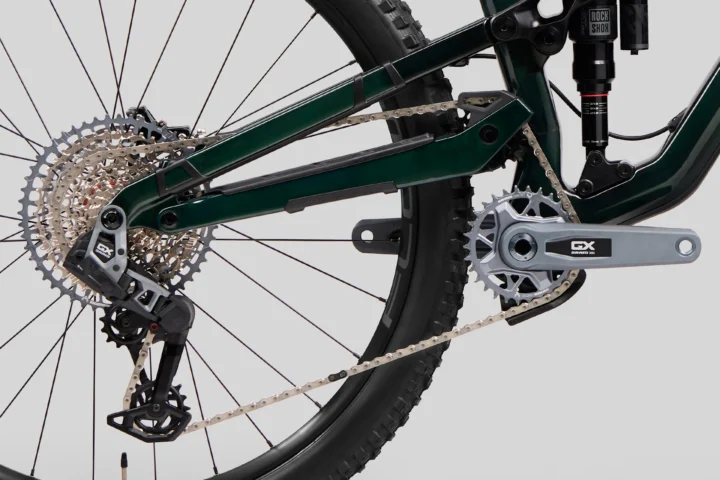

Drivetrain

ShiftersSRAM Pod Controller, MMX Bridge
Rear DerailleurSRAM GX Eagle AXS T-Type, 12sp
CranksetSRAM Eagle, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
Bottom BracketSRAM DUB, BSA 73mm, MTB Wide
CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
ChainSRAM GX Eagle T-Type, 12spd

Brakes

Brakes(F) SRAM Code Silver Stealth, 4-Piston, Sintered Pads / (R) SRAM Code Silver Stealth, 4-Piston, Sintered Pads; Rotors: (F) SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt / (R) SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt; Levers: SRAM Code Silver Stealth

Cockpit & Contact Points

HeadsetFSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )
HandlebarOneUp Aluminum, 800mm, 20mm rise
StemOneUp 42mm length , 35mm clamp
SaddleErgon SM-1 Enduro
SeatpostTranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)

Wheels & Tires

Hubs(F) DT Swiss 370, 15x110 Boost, 32H, 6-bolt / (R) DT Swiss 370, 12x148 Boost, XD, 6-bolt
RimsStan's Flow S2, 32H, F/R- 29", 30mm ID
Front TireMaxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
Rear TireMaxxis Dissector 2.4", 3C, MaxxTerra / EXO / TR, Folding
Wheel Size29"; 29"/27.5"

Geometry

5 sizes · 17 measurements

Frame measurements by size.

All geometry measurements10 size / setup combinations · 17 measurements
Measurement1 · 29"2 · 29"3 · 29"4 · 29"5 · 29"1 · 29"/27.5"2 · 29"/27.5"3 · 29"/27.5"4 · 29"/27.5"5 · 29"/27.5"
Seat tube350 mm370 mm385 mm430 mm445 mm350 mm370 mm385 mm430 mm445 mm
Effective top tube568 mm593 mm617 mm641 mm665 mm568 mm593 mm617 mm641 mm665 mm
Head tube100 mm110 mm120 mm130 mm140 mm100 mm110 mm120 mm130 mm140 mm
Head-tube angle65°65°65°65°65°65°65°65°65°65°
Seat-tube angle76.5°76.75°77°77.25°77.5°76.5°76.75°77°77.25°77.5°
Chainstay / rear center421 mm425 mm429 mm433 mm437 mm415 mm419 mm423 mm427 mm431 mm
Wheelbase1159 mm1193 mm1226 mm1259 mm1292 mm1154 mm1188 mm1221 mm1254 mm1287 mm
Bottom-bracket drop32/3232/3232/3232/3232/3232/1132/1132/1132/1132/11
Bottom-bracket height346 mm346 mm346 mm346 mm346 mm346 mm346 mm346 mm346 mm346 mm
Reach422.5 mm447.5 mm472.5 mm497.5 mm522.5 mm422.5 mm447.5 mm472.5 mm497.5 mm522.5 mm
Stack608 mm617 mm626 mm635 mm644 mm608 mm617 mm626 mm635 mm644 mm
Standover height675 mm677 mm678 mm707 mm705 mm675 mm677 mm678 mm707 mm705 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm
Trail128 mm128 mm128 mm128 mm128 mm128 mm128 mm128 mm128 mm128 mm
Crank length170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm
Stem length40 mm40 mm40 mm40 mm40 mm40 mm40 mm40 mm40 mm40 mm
Wheel size29"29"29"29"29"29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes30T · 10–52T · 12-speed
Lowest0.58:1 Highest3.00:1 Total range520%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
SRAM 1275 Eagle T-Type

10-52T, 12sp

Front tire · Original
Maxxis Minion DHF

3C Max Terra EXO, 29x2.5", Folding

More parts (6)Fewer parts
Bottom bracket · Original
SRAM DUB

BSA 73mm, MTB WIDE

Before ordering: Use the spacer setup for your crank.
Rear derailleur · Original
SRAM GX Eagle AXS T-Type

12sp

Headset · Original
FSA No. 57 ZS

Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )

Saddle · Original
Ergon SM-1 Enduro
Crankset · Original
SRAM Eagle

30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)

Seatpost · Original
TranzX YS105

34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
Rear tire
Maxxis Dissector 2.4", 3C, MaxxTerra / EXO / TR, Folding
Drivetrain
12-speed
Seatpost diameter
34.9 mm
Bottom bracket / shell
SRAM DUB, BSA 73mm, MTB WIDE
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ · Fork: Rockshox Pike Select + Charger 3.1, 140mm, 44mm offset, Fender Included

Archived: Fork: Rockshox Pike Select + Charger 3.1, 140mm, 44mm offset, Fender Included · Rear shock: Rockshox Super Deluxe Select +, 185x50mm TR

Archived: Shifters: SRAM Pod Controller, MMX Bridge · Rear derailleur: SRAM GX Eagle AXS T-Type, 12sp · Crankset: SRAM Eagle, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) · Bottom bracket: SRAM DUB, BSA 73mm, MTB WIDE · Cassette: SRAM 1275 Eagle T-Type, 10-52T, 12sp · Chain: SRAM GX Eagle T-Type, 12spd

Archived: Brakes: (F) SRAM Code Silver Stealth, 4-Piston, Sintered Pads / (R) SRAM Code Silver Stealth, 4-Piston, Sintered Pads; Rotors: (F) SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt / (R) SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt; Levers: SRAM Code Silver Stealth

Archived: Wheel size: 29"; 29"/27.5" · Rims: Stan's Flow S2, 32H, F/R- 29", 30mm ID · Hubs: (F) DT Swiss 370, 15x110 Boost, 32H, 6-bolt / (R) DT Swiss 370, 12x148 Boost, XD, 6-bolt · Front tire: Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding · Rear tire: Maxxis Dissector 2.4", 3C, MaxxTerra / EXO / TR, Folding

Controls and contact points

Archived: Headset: FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) · Handlebar: OneUp Aluminum, 800mm, 20mm rise · Stem: OneUp 42mm length , 35mm clamp · Seatpost: TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5) · Saddle: Ergon SM-1 Enduro
