Velopedia Bicycle Archive

2012 Masi CXR

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #3062547
Model year
2012
Category
Gravel & Cyclocross
Sizes
49cm, 52cm, 55cm, 57cm, 60cm
Colors
White/Purple
In this record
17 specifications · archived image

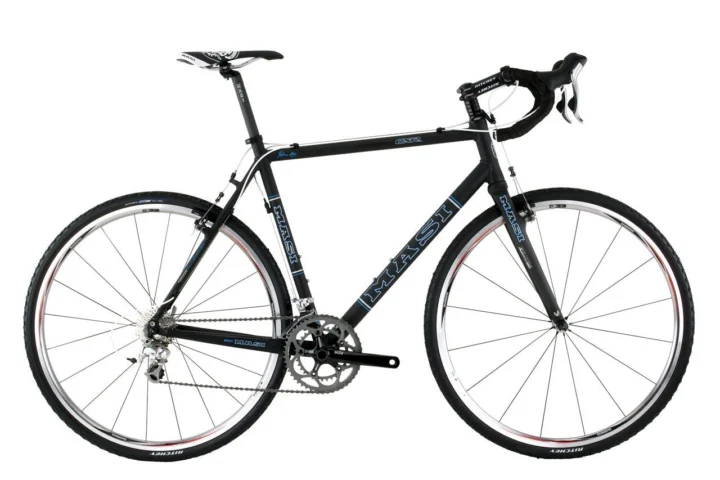

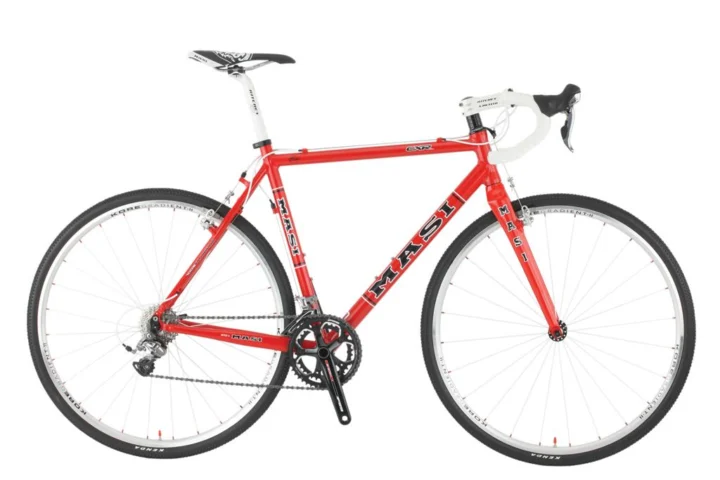

Model history 6 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors
White/Purple
Frame
Masi 7005-T6 alloy

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildMasi 7005-T6 alloy

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

49cm52cm55cm57cm60cm

Published colors

White/Purple

Frameset

Frame MaterialMasi 7005-T6 alloy
ForkMasi Elite Carbon

Drivetrain

ShiftersSRAM Apex
Front DerailleurSRAM Apex
Rear DerailleurSRAM Apex
CranksetFSA Gossamer Pro Cross 36/46t
Bottom BracketFSA BB30
CassetteSRAM PG-1050 12-27T
ChainSRAM PC-1031

Brakes

BrakesTektro CR710 Canti

Cockpit & Contact Points

HeadsetRitchey
HandlebarRitchey Comp Logic II compact
StemRitchey 6061
SaddleMasi
SeatpostRitchey 6061

Wheels & Tires

RimsFSA RD-60
Front TireKenda Small Block 8 700x32c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes46/36T · 12–27T
Lowest1.33:1 Highest3.83:1 Total range288%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Kenda Small Block 8 700x32c
Retailer offers
Chain · Original
SRAM PC-1031
Cassette · Original
SRAM PG-1050 12-27t
More parts (3)Fewer parts
Bottom bracket · Original
FSA BB30
Crankset · Original
FSA Gossamer Pro Cross 36/46t
Handlebar · Original
Ritchey Comp Logic II compact

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda Small Block 8 700x32c
Bottom bracket / shell
FSA BB30
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Masi 7005-T6 alloy · Fork: Masi Elite Carbon

Archived: Shifters: SRAM Apex · Front derailleur: SRAM Apex · Rear derailleur: SRAM Apex · Crankset: FSA Gossamer Pro Cross 36/46t · Bottom bracket: FSA BB30 · Cassette: SRAM PG-1050 12-27t · Chain: SRAM PC-1031

Archived: Brakes: Tektro CR710 Canti

Archived: Rims: FSA RD-60 · Front tire: Kenda Small Block 8 700x32c

Controls and contact points

Archived: Headset: Ritchey · Handlebar: Ritchey Comp Logic II compact · Stem: Ritchey 6061 · Seatpost: Ritchey 6061 · Saddle: Masi
