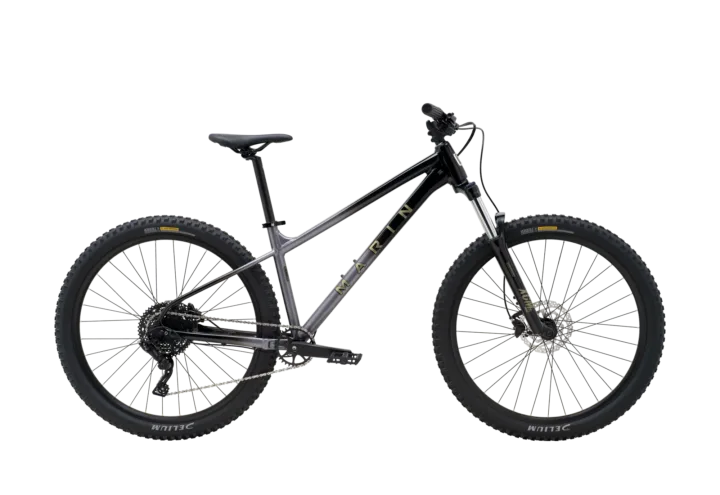

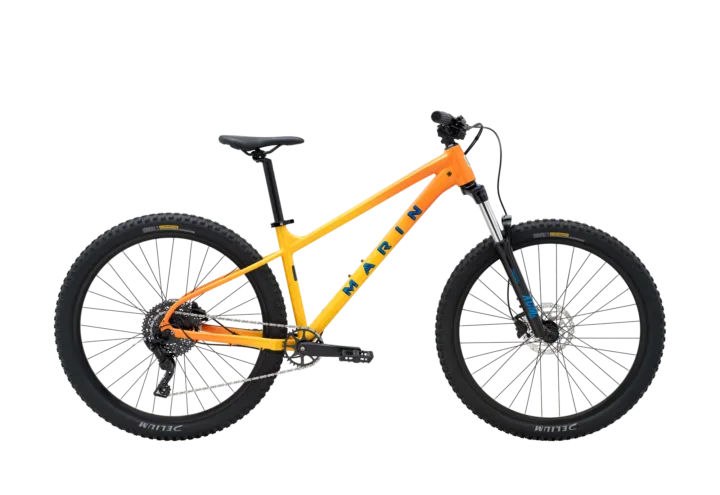

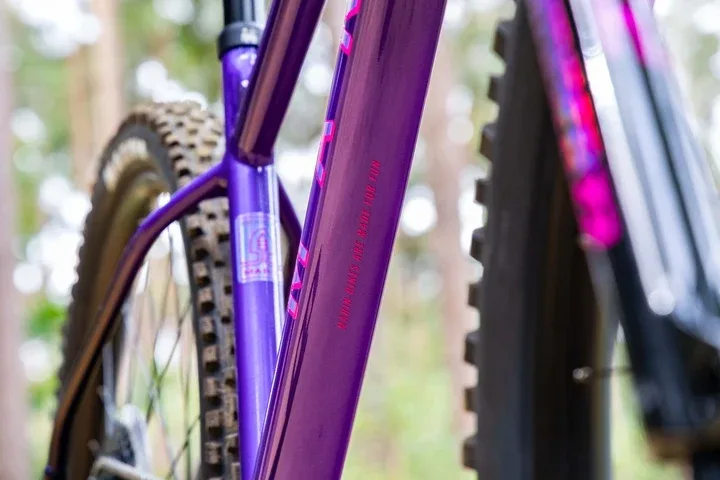

2025 Marin San Quentin 1

Original specifications: 27.5"; 29" wheels · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000491
Model year
2025
Category
Mountain
Original MSRP
$1,599.00
Sizes
S, M, L, XL
Colors
Yellow Fade, Black Grey Fade
Geometry
4 manufacturer sizes
In this record
23 specifications · 6 archived images · original MSRP · geometry
Original buildAluminum · 27.5"; 29"

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Yellow FadeBlack Grey Fade

Frameset

Frame ConstructionSeries 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
Frame MaterialAluminum
ForkSR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle

Drivetrain

ShiftersMicroShift SL-M6195-R, 1x9 with Bearings
Rear DerailleurMicroShift RD-M9195M, 9 Speed, With Clutch

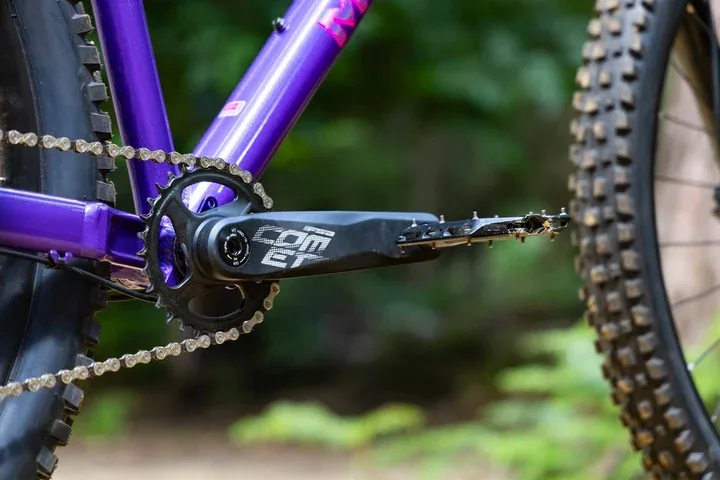

CranksetMarin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing
Bottom BracketSealed Cartridge Bearing, Square Taper
BB Shell Width73 mm
CassetteSunRace, 9 Speed, 11-46T
ChainKMC X-9
PedalsMarin MTB Plastic

Brakes

Brakes(F) Tektro M275 Hydraulic, 180mm Rotor / (R) Tektro M275 Hydraulic, 180mm Rotor; Levers: Tektro M275

Cockpit & Contact Points

HeadsetFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
StemMarin 3D Forged Alloy, 45mm
SaddleMarin Speed Concept
SeatpostMarin Alloy, 30.9mm

Wheels & Tires

Hubs(F) Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 32H / (R) Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, 32H, Shimano Standard Freehub Body
RimsMarin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Spokes14g Black Stainless Steel
Front TireDelium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless
Rear TireDelium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless
Wheel Size27.5"; 29"

Geometry

4 sizes · 16 measurements

Frame measurements by size.

All geometry measurements4 sizes · 16 measurements
MeasurementSMLXL
Seat tube310 mm340 mm410 mm420 mm
Effective top tube564.7 mm593.7 mm619 mm650 mm
Head tube110 mm115 mm125 mm130 mm
Head-tube angle64°64°64°64°
Seat-tube angle77°77°77°77°
Chainstay / rear center425 mm425 mm430 mm430 mm
Wheelbase1173.4 mm1203.6 mm1236 mm1268 mm
Bottom-bracket drop50 mm50 mm50 mm50 mm
Bottom-bracket height316 mm316 mm327 mm327 mm
Reach422 mm450 mm470 mm500 mm
Stack618 mm622.5 mm645 mm650 mm
Standover height627.7 mm656.4 mm688 mm695 mm
Fork offset / rake37 mm37 mm44 mm44 mm
Crank length170 mm170 mm170 mm170 mm
Stem length35 mm35 mm35 mm35 mm
Handlebar width780 mm780 mm780 mm780 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes32T · 11–46T · 9-speed
Lowest0.70:1 Highest2.91:1 Total range418%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC X-9
Cassette · Original
SunRace

9 Speed, 11-46T

More parts (3)Fewer parts
Rear derailleur · Original
MicroShift RD-M9195M

9 Speed, With Clutch

Shifters · Original
MicroShift SL-M6195-R

1x9 with Bearings

Headset · Original
FSA No 57E

Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless
Rear tire
Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Sealed Cartridge Bearing, Square Taper · 73 mm
Equipment inspection checks 12 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 12 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB · Fork: SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle

Archived: Fork: SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle

Archived: Shifters: MicroShift SL-M6195-R, 1x9 with Bearings · Rear derailleur: MicroShift RD-M9195M, 9 Speed, With Clutch · Crankset: Marin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing · Bottom bracket: Sealed Cartridge Bearing, Square Taper · Cassette: SunRace, 9 Speed, 11-46T · Chain: KMC X-9

Archived: Brakes: (F) Tektro M275 Hydraulic, 180mm Rotor / (R) Tektro M275 Hydraulic, 180mm Rotor; Levers: Tektro M275

Archived: Wheel size: 27.5"; 29" · Rims: Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible · Hubs: (F) Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 32H / (R) Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, 32H, Shimano Standard Freehub Body · Front tire: Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless · Rear tire: Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless

Controls and contact points

Archived: Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” · Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back · Stem: Marin 3D Forged Alloy, 45mm · Seatpost: Marin Alloy, 30.9mm · Saddle: Marin Speed Concept · Pedals: Marin MTB Plastic
