2024 Marin Larkspur 2
Hybrid bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2024
- Category
- Hybrid
- Original MSRP
- $0.00
- Sizes
- S, M, L
- Colors
- Black
- Geometry
- 3 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 3 archived images · preserved geometry
- Archive ID
- 900000487
Frameset
| Frame Construction | Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts |
|---|---|
| Fork | CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano Deore 11-Speed |
|---|---|
| Rear Derailleur | Shimano Deore 11-Speed |
| Crankset | Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 38T |
| Bottom Bracket | Sealed Outboard Bearings |
| Cassette | SunRace 11-Speed, 11-51T |
| Chain | KMC X11 |
| Pedals | Nylon Platform |
Brakes
| Brakes | (F) Shimano BRMT410, Hydraulic, 180mm Rotor / (R) Shimano BRMT410, Hydraulic, 160mm Rotor; Levers: Shimano Deore Hydraulic |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit CE No.8B |
|---|---|
| Handlebar | Marin Alloy Sweeper |
| Stem | Marin Alloy, 31.8mm Clamp |
| Saddle | Marin Adventure Plush |
| Seatpost | TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel, |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, 32H / (R) Forged Aluminum Alloy, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, 27mm Internal, Disc Specific |
| Spokes | 14g Stainless Steel |
| Front Tire | Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready |
| Rear Tire | Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready |
| Wheel Size | 27.5" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L |
|---|---|---|---|
| Seat tube | 390 mm | 450 mm | 500 mm |
| Effective top tube | 568.6 mm | 592.7 mm | 618.2 mm |
| Head tube | 190 mm | 205 mm | 225 mm |
| Head-tube angle | 69° | 69° | 69° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1080 mm | 1105 mm | 1132.3 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm |
| Bottom-bracket height | 280 mm | 280 mm | 280 mm |
| Reach | 390 mm | 410 mm | 430 mm |
| Stack | 602.8 mm | 616.8 mm | 635.4 mm |
| Standover height | 550.35 mm | 562.35 mm | 576.35 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 175 mm | 175 mm |
| Stem length | 75 mm | 75 mm | 75 mm |
| Handlebar width | 700 mm | 700 mm | 700 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. The head angle of 69° sits toward the slacker end. The chainstay of 440 mm sits somewhat shorter than typical.
Compared with 28 distinct hybrid geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. The head angle of 69° sits toward the slacker end. Its reach of 410 mm sits toward the longer end.
Compared with 30 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. Its wheelbase of 1132.3 mm sits toward the longer end. Its reach of 430 mm sits toward the longer end.
Compared with 28 distinct hybrid geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry Parts & serviceability
Find replacement parts
ChainKMC X11Exact archived model
CassetteSunRace 11-Speed, 11-51TComponent family — verify exact version
Rear derailleurShimano Deore 11-SpeedComponent family — verify exact version
More qualified parts (3)
ShiftersShimano Deore 11-SpeedComponent family — verify exact version
SeatpostTranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel,Named archived component — verify dimensions
HeadsetFSA Orbit CE No.8BNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Marin Larkspur 2 · Hybrid · Published sizes: S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts · Fork: CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore 11-Speed · Rear derailleur: Shimano Deore 11-Speed · Crankset: Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 38T · Bottom bracket: Sealed Outboard Bearings · Cassette: SunRace 11-Speed, 11-51T · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano BRMT410, Hydraulic, 180mm Rotor / (R) Shimano BRMT410, Hydraulic, 160mm Rotor; Levers: Shimano Deore Hydraulic
Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5" · Rims: Marin Aluminum Double Wall, 27mm Internal, Disc Specific · Hubs: (F) Forged Aluminum Alloy, 32H / (R) Forged Aluminum Alloy, 32H · Front tire: Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready · Rear tire: Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
Controls and contact points
Archived: Headset: FSA Orbit CE No.8B · Handlebar: Marin Alloy Sweeper · Stem: Marin Alloy, 31.8mm Clamp · Seatpost: TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel, · Saddle: Marin Adventure Plush · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

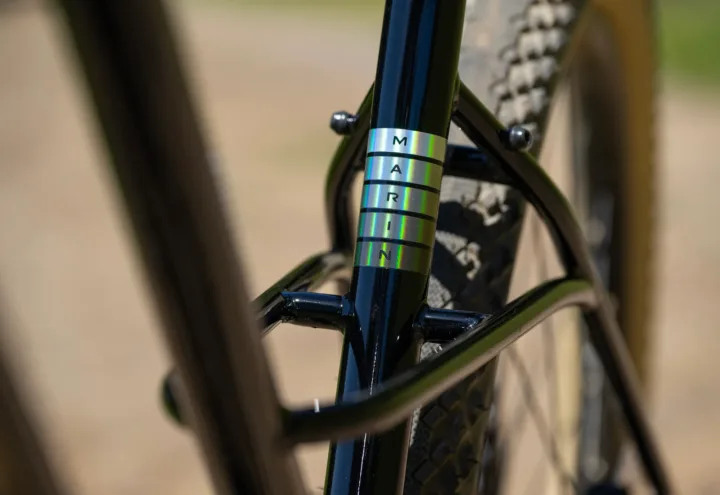

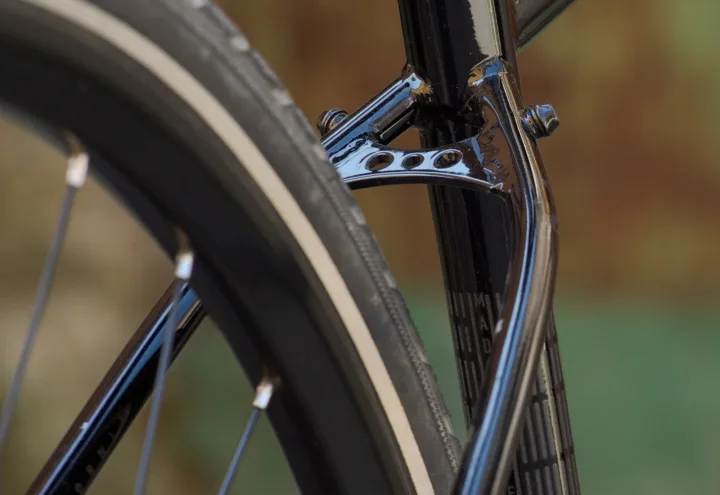

Gallery
