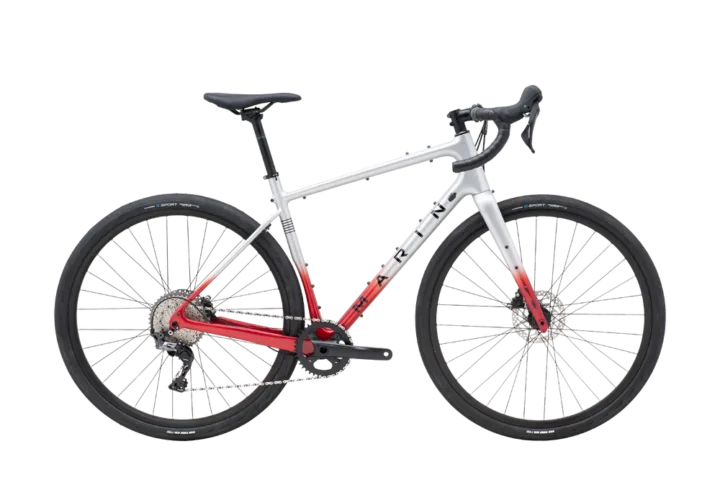

2024 Marin Headlands 1
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2024
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,599.00
- Sizes
- 49, 52, 54, 56, 58, 60
- Colors
- Silver Red
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900000507
Model history 1 other year
Frameset
| Frame Construction | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano GRX RX600 |
|---|---|
| Rear Derailleur | Shimano GRX RDX812 Shadow Plus w/ Clutch |
| Crankset | Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Cassette | Shimano CSM8000, 11-Speed, 11/42T |
| Chain | KMC X11 |
Brakes
| Brakes | (F) Shimano GRX Hydraulic Disc, 160mm Rotor / (R) Shimano GRX Hydraulic Disc, 160mm Rotor; Levers: Shimano GRX Hydraulic w/ Shifter |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
|---|---|
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin Beyond Road Concept |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, XD Driver, Disc, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Tire | Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible |
| Rear Tire | Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Seat tube | 440 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Effective top tube | 522 mm | 535 mm | 545 mm | 565 mm | 595 mm | 615 mm |
| Head tube | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Head-tube angle | 70.5° | 71° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1010.2 mm | 1007.4 mm | 1007.7 mm | 1028.5 mm | 1059.2 mm | 1079.9 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Bottom-bracket height | 283.5 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Reach | 370 mm | 372.8 mm | 372.7 mm | 386.4 mm | 411.4 mm | 425.8 mm |
| Stack | 550.3 mm | 565.7 mm | 581.8 mm | 600.8 mm | 619.7 mm | 638.7 mm |
| Standover height | 711 mm | 725 mm | 741 mm | 758 mm | 775 mm | 792 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 60 mm | 60 mm | 60 mm | 70 mm | 70 mm |
| Handlebar width | 420 mm | 420 mm | 420 mm | 440 mm | 440 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
49 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1010.2 mm sits somewhat shorter than typical. Its reach of 370 mm sits somewhat shorter than typical.
Compared with 92 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 49 geometry 52 geometry
Archive context: Its wheelbase of 1007.4 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 372.8 mm sits toward the shorter end.
Compared with 101 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its wheelbase of 1007.7 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 372.7 mm sits toward the shorter end.
Compared with 101 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1028.5 mm sits toward the shorter end. Its reach of 386.4 mm sits toward the shorter end.
Compared with 74 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1059.2 mm sits somewhat shorter than typical. Its stack of 619.7 mm sits somewhat lower than typical.
Compared with 78 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 60 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 425.8 mm sits toward the longer end. The seat angle of 73.5° sits somewhat steeper than typical.
Compared with 78 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 60 geometry Parts & serviceability
Find replacement parts
ChainKMC X11Exact archived model
ShiftersShimano GRX RX600Named component · published drivetrain speed — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
More qualified parts (1)
HeadsetFSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Marin Headlands 1 · Cyclocross/Gravel · Published sizes: 49, 52, 54, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts · Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano GRX RX600 · Rear derailleur: Shimano GRX RDX812 Shadow Plus w/ Clutch · Crankset: Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T · Bottom bracket: External Sealed Cartridge Bearings · Cassette: Shimano CSM8000, 11-Speed, 11/42T · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano GRX Hydraulic Disc, 160mm Rotor / (R) Shimano GRX Hydraulic Disc, 160mm Rotor; Levers: Shimano GRX Hydraulic w/ Shifter
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible · Hubs: (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, XD Driver, Disc, 32H · Front tire: Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible · Rear tire: Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible
Controls and contact points
Archived: Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” · Handlebar: Marin Butted Alloy, Compact 16º Flared Drop · Stem: Marin 3D Forged Alloy · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin Beyond Road Concept
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
