2024 Marin Kentfield 1
Hybrid bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2024
- Category
- Hybrid
- Original MSRP
- $629.00
- Sizes
- S, M, L, XL
- Colors
- Black, Orange, Green
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000690
Frameset
| Frame Construction | Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano Altus 7-Speed RapidFire |
|---|---|
| Rear Derailleur | Shimano Tourney 7-Speed |
| Crankset | Forged Alloy Crank, Steel 38T Chainring, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Cassette | Shimano CSHG200, 7-Speed, 12-32T |
| Chain | KMC Z8 |
| Pedals | Nylon Platform |
Brakes
| Brakes | (F) Tektro MDM280 Mechanical Disc, 160mm Rotor / (R) Tektro MDM280 Mechanical Disc, 160mm Rotor; Levers: Aluminum Lever |
|---|
Cockpit & Contact Points
| Headset | FSA 888 Threadless |
|---|---|
| Handlebar | Marin Alloy, 30mm Rise, 12˚ Backsweep |
| Stem | Marin Aluminum, 31.8mm Clamp |
| Saddle | Marin Adventure Plush |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, 32H / (R) Forged Aluminum Alloy, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Spokes | 14g Stainless Steel |
| Front Tire | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
| Rear Tire | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 422 mm | 462 mm | 495 mm | 528 mm |
| Effective top tube | 567.7 mm | 591.9 mm | 612.4 mm | 633 mm |
| Head tube | 190 mm | 205 mm | 225 mm | 245 mm |
| Head-tube angle | 70° | 70° | 70° | 70° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1082.9 mm | 1108 mm | 1130 mm | 1151.7 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 294.5 mm | 294.5 mm | 294.5 mm | 294.5 mm |
| Reach | 380 mm | 400 mm | 415 mm | 430 mm |
| Stack | 633.6 mm | 648.4 mm | 666.5 mm | 685.3 mm |
| Standover height | 718.86 mm | 754.41 mm | 784.94 mm | 815.14 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem length | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar width | 680 mm | 740 mm | 740 mm | 740 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its stack of 633.6 mm sits toward the taller end. Its bottom-bracket drop of 70 mm sits toward the deeper-drop end. The head angle of 70° sits somewhat slacker than typical.
Compared with 28 distinct hybrid geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 648.4 mm sits toward the taller end. Its wheelbase of 1108 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits toward the deeper-drop end.
Compared with 30 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its wheelbase of 1130 mm sits toward the longer end. Its stack of 666.5 mm sits toward the taller end. Its bottom-bracket drop of 70 mm sits toward the deeper-drop end.
Compared with 28 distinct hybrid geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its stack of 685.3 mm sits toward the taller end. Its wheelbase of 1151.7 mm sits toward the longer end. The seat angle of 73.5° sits toward the steeper end.
Compared with 21 distinct hybrid geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
ChainKMC Z8Exact archived model
CassetteShimano CSHG200, 7-Speed, 12-32TNamed component · published drivetrain speed — verify exact version
Rear derailleurShimano Tourney 7-SpeedComponent family — verify exact version
More qualified parts (2)
ShiftersShimano Altus 7-Speed RapidFireComponent family — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesMake sure both cables move freely and the calipers release cleanly. Check pad thickness, rotor wear and rotor alignment.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 7-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Marin Kentfield 1 · Hybrid · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts · Fork: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus 7-Speed RapidFire · Rear derailleur: Shimano Tourney 7-Speed · Crankset: Forged Alloy Crank, Steel 38T Chainring, Ring Guard · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: Shimano CSHG200, 7-Speed, 12-32T · Chain: KMC Z8
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro MDM280 Mechanical Disc, 160mm Rotor / (R) Tektro MDM280 Mechanical Disc, 160mm Rotor; Levers: Aluminum Lever
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, Disc Specific · Hubs: (F) Forged Aluminum Alloy, 32H / (R) Forged Aluminum Alloy, 32H · Front tire: Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready · Rear tire: Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
Controls and contact points
Archived: Headset: FSA 888 Threadless · Handlebar: Marin Alloy, 30mm Rise, 12˚ Backsweep · Stem: Marin Aluminum, 31.8mm Clamp · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin Adventure Plush · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

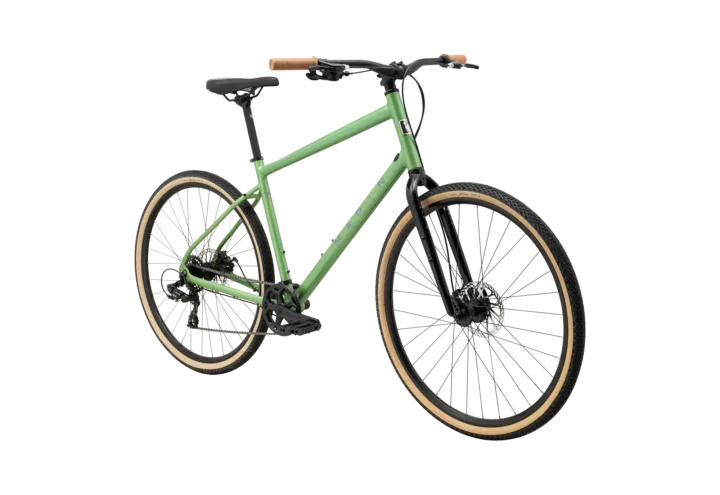

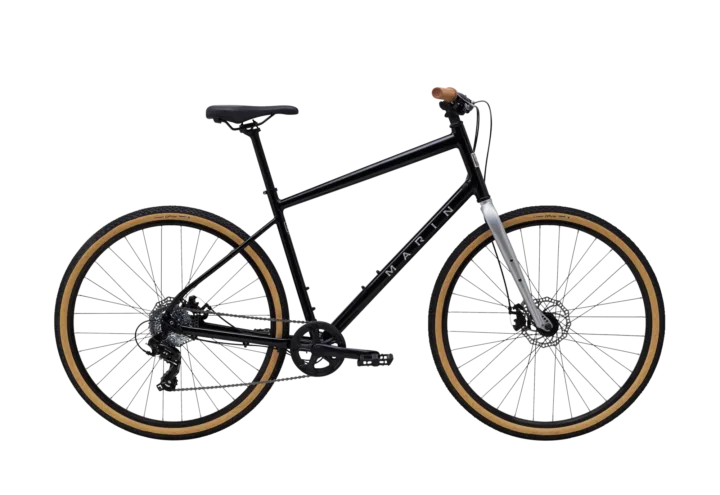

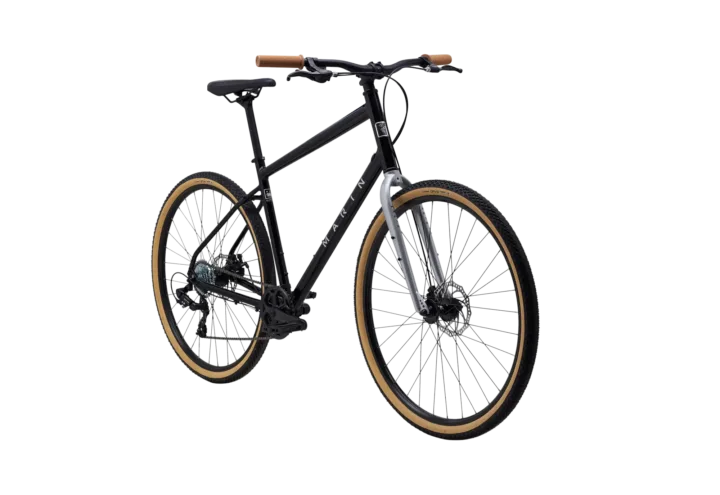

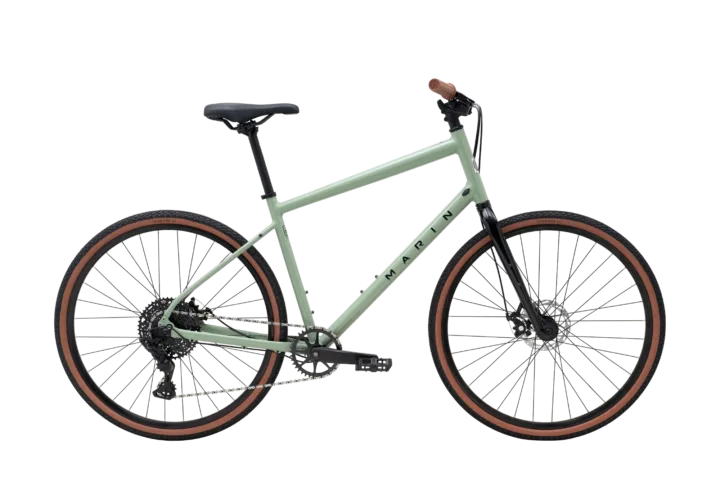

Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
