Ratio1.60:1
Estimated speed At 90 RPM
Gear
Uses front tire 29×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

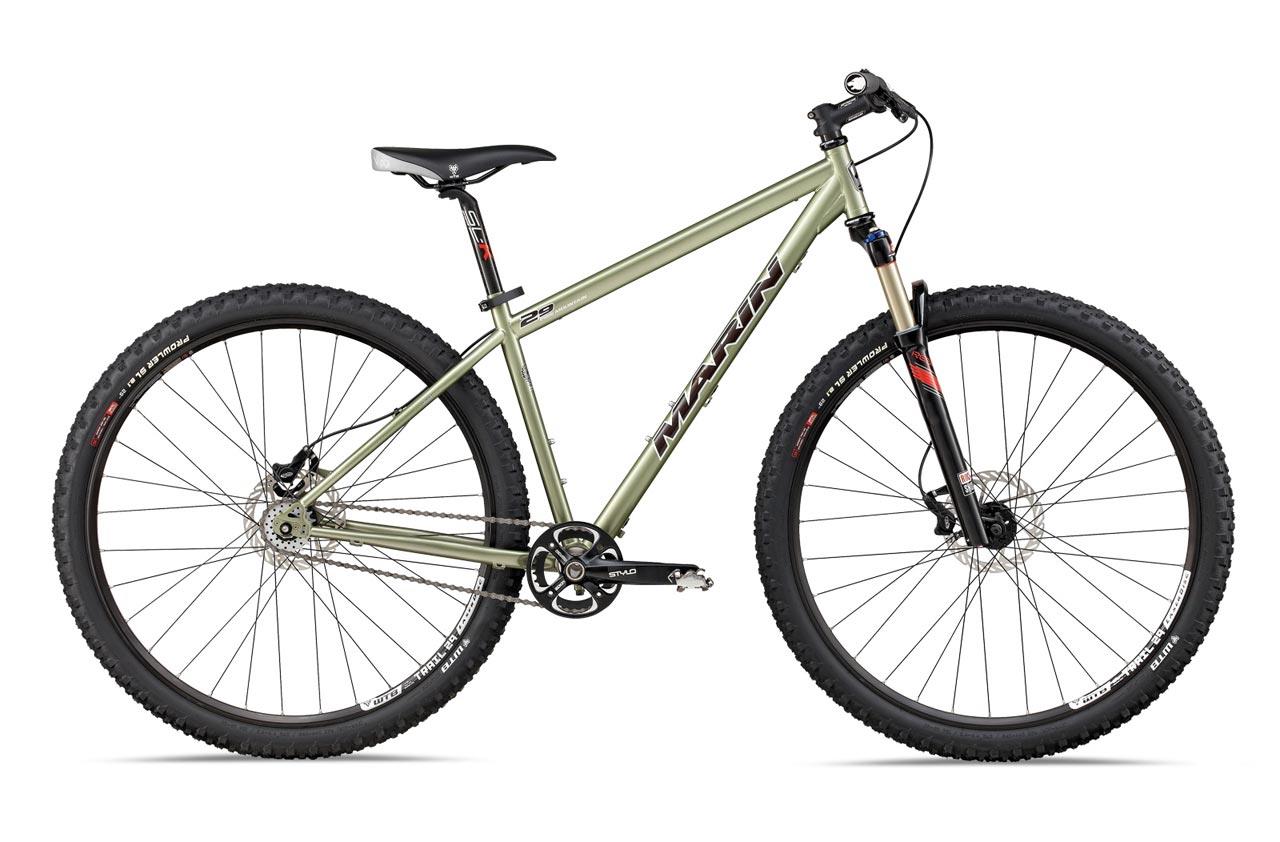

2010 Marin Pine Mountain
Original specifications: Single Speed Mix drivetrain · 29" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20675- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $1,785.00
- Sizes
- 17", 19", 20.5", 22"
- Colors
- Green Olive
- In this record
- 22 specifications · archived image · original MSRP
Model history 14 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Green Olive
- Frame
- 4130 chromoly, triple butted
- Original equipment
- Single Speed Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build4130 chromoly, triple butted · Single Speed Mix · 29" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 chromoly, triple butted |
| Fork | RockShox Reba Dual Air 29er, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Single Speed Mix |
|---|---|
| Crankset | Truvativ Stylo 1.1G Singlespeed, 32 teeth |
| Bottom Bracket | TruVativ GXP |
| Rear Cogs | 1-speed, 20 teeth |
| Chain | Hg40 |
| Pedals | Shimano PD-M520 |
Brakes
| Brakes | Avid Juicy 3.5 w/160mm rotor brakes, Avid Juicy 3.5 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless TH-857 |
|---|---|
| Handlebar | Double Butted 6061 Alloy OS riser |
| Handlebar Extensions | Not included |
| Stem | FSA OS-150LX |
| Saddle | WTB Vigo Comp |
| Seatpost | FSA SLK Carbon, 350mm, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: WTB LaserDisc Lite, Rear: WTB LaserDisc Lite Single Duty |
|---|---|
| Rims | WTB LaserDisc Trail 29", 32-hole |
| Spokes | WTB stainless, 15ga. (1.8mm) straight gauge |
| Front Tire | 29 x 2.10" WTB Prowler SL folding (49/52) |
| Wheel Size | 29" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
29 x 2.10" WTB Prowler SL folding (49/52)
Retailer offers
Schwalbe RapidRob Performance 29in Tire Black, Clincher/Wire, 29x2.1
Replacement option
WTB Prowler SL 49 52 on eBaySponsored links
FSA SLK Carbon
350mm, 27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano PD-M520
More parts (3)Fewer parts
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 29 x 2.10" WTB Prowler SL folding (49/52)
- Drivetrain
- 1-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- TruVativ GXP
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RockShox Reba Dual Air 29er, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: RockShox Reba Dual Air 29er, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Single Speed Mix · Crankset: Truvativ Stylo 1.1G Singlespeed, 32 teeth · Bottom bracket: TruVativ GXP · Rear cogs: 1-speed, 20 teeth · Chain: HG40
Brakes
Inspect the brakes →Archived: Brakes: Avid Juicy 3.5 w/160mm rotor brakes, Avid Juicy 3.5 hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" wheels · Rims: WTB LaserDisc Trail 29", 32-hole · Hubs: Front: WTB LaserDisc Lite, Rear: WTB LaserDisc Lite Single Duty · Front tire: 29 x 2.10" WTB Prowler SL folding (49/52)
Controls and contact points
Archived: Headset: 1 1/8" threadless TH-857 · Handlebar: Double Butted 6061 Alloy OS riser · Stem: FSA OS-150LX · Seatpost: FSA SLK Carbon, 350mm, 27.2mm diameter · Saddle: WTB Vigo Comp · Pedals: Shimano PD-M520
