Velopedia Bicycle Archive

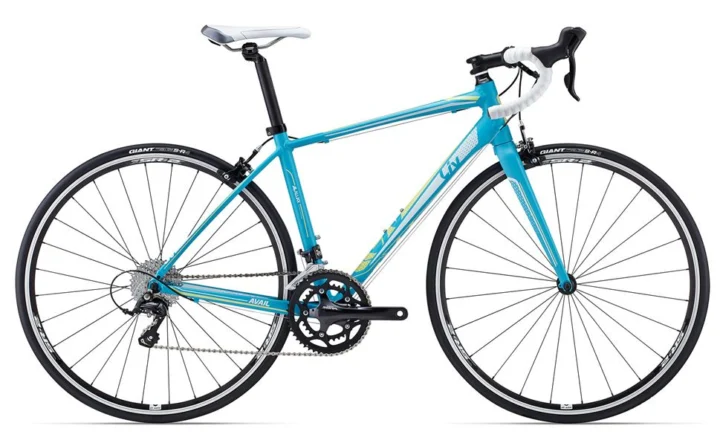

2015 Liv Avail 3
Original specifications: Shimano Sora drivetrain · 700c wheels · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #1106257- Model year
- 2015
- Category
- Road
- Original MSRP
- $970.00
- Sizes
- XS, S, M, L
- Colors
- Black/Blue, Turquoise/Green
- Geometry
- 4 manufacturer sizes
- In this record
- 25 specifications · 2 archived images · original MSRP · geometry
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2015 archived details
- Published colors
- Black/Blue, Turquoise/Green
- Frame
- Aluminum
- Original equipment
- Shimano Sora
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Shimano Sora · 700c
Frameset
| Frame Construction | ALUXX-grade aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | Composite, Alloy OverDrive steerer |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Shimano Sora |
|---|---|
| Shifters | Shimano Sora |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Crankset | Shimano Sora, 34/50 |
| Bottom Bracket | Sealed |
| Cassette | SRAM PG950 11x32, 9-speed |
| Rear Cogs | SRAM PG950 11x32, 9-speed |
| Chain | KMC X9 |
| Pedals | Caged w/ toe clip and strap |
Brakes
| Brakes | Tektro R312 |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect, 31.8mm |
|---|---|
| Stem | Giant Sport |
| Saddle | Liv Connect, Forward |
| Seatpost | Giant Sport, 30.9mm |
Wheels & Tires
| Hubs | Giant Tracker Sport Road, 26h |
|---|---|
| Rims | Giant S-R2 |
| Spokes | Stainless Steel, 14g |
| Front Tire | Giant S-R4, Front and rear specific, 700x25 |
| Rear Tire | Giant S-R4, Front and rear specific, 700x25 |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 9 measurements
| Measurement | XS/43.0 | S/46.5 | M/50.0 | L/53.5 |
|---|---|---|---|---|
| Top tube | 515 mm | 525 mm | 540 mm | 555 mm |
| Head tube | 135 mm | 150 mm | 170 mm | 190 mm |
| Head-tube angle | 70.5° | 72° | 72° | 72° |
| Seat-tube angle | 75° | 74.5° | 74° | 74° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 990 mm | 1000 mm | 1016 mm |
| Reach | 366 mm | 372 mm | 377 mm | 386 mm |
| Stack | 530 mm | 550 mm | 567 mm | 588 mm |
| Standover height | 675.64 mm | 701.04 mm | 728.98 mm | 764.54 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
9-speed

SRAM PG-950 Cassette 9 Speed, 11-32T
Model match
30.9mm

Race Face Ride XC Seatpost Black, 30.9x375mm
Replacement option
More parts (6)Fewer parts
Front and rear specific, 700x25
Replacement search: 700cx25 bicycle tire Before ordering: Check rim type and tire clearance.34/50
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Giant S-R4, Front and rear specific, 700x25
- Rear tire
- Giant S-R4, Front and rear specific, 700x25
- Drivetrain
- 9-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- Sealed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum · Fork: Composite, Alloy OverDrive steerer · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Sora · Shifters: Shimano Sora · Front derailleur: Shimano Sora · Rear derailleur: Shimano Sora · Crankset: Shimano Sora, 34/50 · Bottom bracket: Sealed · Cassette: SRAM PG950 11x32, 9-speed · Rear cogs: SRAM PG950 11x32, 9-speed · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: Tektro R312
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Giant S-R2 · Hubs: Giant Tracker Sport Road, 26h · Front tire: Giant S-R4, Front and rear specific, 700x25 · Rear tire: Giant S-R4, Front and rear specific, 700x25
Controls and contact points
Archived: Handlebar: Giant Connect, 31.8mm · Stem: Giant Sport · Seatpost: Giant Sport, 30.9mm · Saddle: Liv Connect, Forward · Pedals: Caged w/ toe clip and strap
