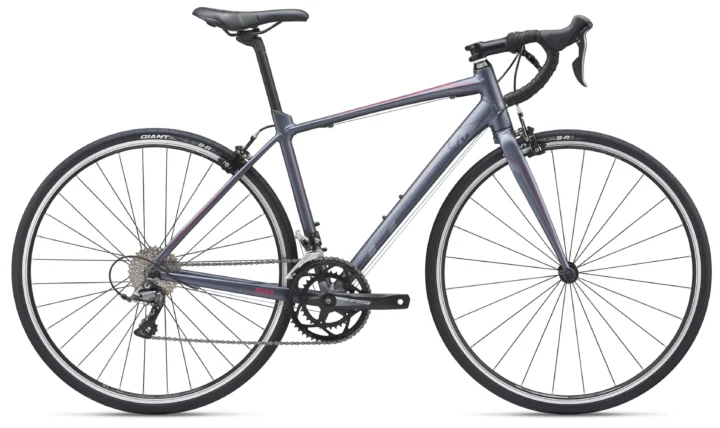

2019 Liv Avail 3

Original specifications: geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002396
Model year
2019
Category
Road
Original MSRP
$680.00
Sizes
XXS, XS, S, M, L
Colors
Charcoal / Raspberry, Blue / Green
Geometry
4 manufacturer sizes
In this record
21 specifications · 2 archived images · original MSRP · geometry
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2019 archived details

Published colors
Charcoal / Raspberry, Blue / Green
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XXSXSSML

Published colors

Charcoal / RaspberryBlue / Green

Frameset

Frame ConstructionALUXX-Grade Aluminum
Frame MaterialAluminum
Forkaluminum, hybrid OverDrive steerer
Fork MaterialAluminum

Drivetrain

ShiftersShimano Claris
Front DerailleurShimano Claris
Rear DerailleurShimano Claris
CranksetFSA Tempo, 34/50
Bottom Bracketcartridge
CassetteShimano HG50, 11x34
ChainKMC Z72

Brakes

BrakesTektro TK-B177 AL Rim brake ED Black

Cockpit & Contact Points

HandlebarGiant Connect
StemGiant Sport
SaddleLiv Contact Comfort (forward)
SeatpostGiant alloy D-Fuse

Wheels & Tires

HubsGiant SR-3 wheelset
RimsGiant SR-3 wheelset
SpokesGiant SR-3 wheelset
Front TireGiant S-R3 AC, wire bead, 700x28c
Rear TireGiant S-R3 AC, wire bead, 700x28c

Geometry

4 sizes · 17 measurements

Frame measurements by size.

All geometry measurements4 sizes · 17 measurements
MeasurementXSSML
Seat tube430 mm465 mm500 mm535 mm
Top tube515 mm525 mm540 mm555 mm
Head tube135 mm150 mm170 mm190 mm
Head-tube angle70.5°72°72°72°
Seat-tube angle75°74.5°74°74°
Chainstay / rear center420 mm420 mm420 mm420 mm
Wheelbase998 mm990 mm1000 mm1016 mm
Bottom-bracket drop70 mm70 mm70 mm70 mm
Reach372 mm372 mm377 mm386 mm
Stack530 mm550 mm569 mm588 mm
Standover height687 mm716 mm744 mm772 mm
Fork offset / rake45 mm45 mm45 mm45 mm
Trail73 mm64 mm64 mm64 mm
Crank length165 mm170 mm170 mm172.5 mm
Stem length70 mm80 mm90 mm90 mm
Handlebar width380 mm400 mm400 mm420 mm
Wheel size700C700C700C700C

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 11–34T
Lowest1.00:1 Highest4.55:1 Total range455%
Estimated speed At 90 RPM Lowest gear7.2 mph Highest gear32.5 mph

Rear tire: 700C×28.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z72
Cassette · Original
Shimano HG50

11x34

Front tire · Original
Giant S-R3 AC

wire bead, 700x28c

Replacement search: 700cx28 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (1)Fewer parts
Crankset · Original
FSA Tempo

34/50

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Giant S-R3 AC, wire bead, 700x28c
Rear tire
Giant S-R3 AC, wire bead, 700x28c
Bottom bracket / shell
cartridge
Sponsored affiliate link
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX-Grade Aluminum · Fork: aluminum, hybrid OverDrive steerer · Aluminum

Archived: Shifters: Shimano Claris · Front derailleur: Shimano Claris · Rear derailleur: Shimano Claris · Crankset: FSA Tempo, 34/50 · Bottom bracket: cartridge · Cassette: Shimano HG50, 11x34 · Chain: KMC Z72

Archived: Brakes: Tektro TK-B177 AL Rim brake ED Black

Archived: Rims: Giant SR-3 wheelset · Hubs: Giant SR-3 wheelset · Front tire: Giant S-R3 AC, wire bead, 700x28c · Rear tire: Giant S-R3 AC, wire bead, 700x28c

Controls and contact points

Archived: Handlebar: Giant Connect · Stem: Giant Sport · Seatpost: Giant alloy D-Fuse · Saddle: Liv Contact Comfort (forward)
