2026 Kona Ouroboros CR/DL
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $4,999.00
- Sizes
- 48, 50, 52, 54, 56, 58
- Colors
- Gloss Concrete w/ Honeycomb Decals
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000970
Model history 1 other year
Frameset
| Frame Construction | Kona Carbon |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Rudy Ultimate XPLR / Charger Race Day 2 / 40mm travel / tapered / 12x100 |
| Rear Shock | n/a |
Drivetrain
| Shifters | SRAM Rival AXS |
|---|---|
| Front Derailleur | n/a |
| Rear Derailleur | SRAM Rival XPLR AXS |
| Crankset | SRAM Rival XPLR 38t / Length 48-52 165mm / 54 170mm / 56-58 172.5mm |
| Bottom Bracket | SRAM PF86.5 DUB Wide |
| Cassette | SRAM XG 1351 XPLR 10-46t 13sp XDR |
| Chain | SRAM Rival |
| Pedals | n/a |
Brakes
| Brakes | Brake Calipers: SRAM Rival AXS; Front Brake Rotor: SRAM Centerline 180mm 6B; Rear Brake Rotor: SRAM Centerline 180mm 6B; Brake Levers: SRAM Rival XPLR |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit No.57 ZS44/ZS56 |
|---|---|
| Handlebar | Ritchey Venturemax Comp / 24-degree flare / 4.6 degree back / Width 48-50 460mm / 52-54 480mm / 56 500mm / 58 520mm |
| Stem | Ritchey Comp Trail / Length 48-52 45mm / 54-58 60mm |
| Saddle | WTB Volt Medium Cromoly SL Fusion |
| Seatpost | Rockshox Reverb AXS 31.6mm / Length 48-52 100mm / 54-58 125mm |
Wheels & Tires
| Hubs | (F) KT 12x100mm / (R) KT 12x142mm XDR |
|---|---|
| Rims | WTB KOM Team i27 TCS CVX 29" |
| Spokes | Stainless 2.0/1.8mm Black |
| Front Tire | WTB Resolute TCS Light 700x50mm |
| Rear Tire | WTB Resolute TCS Light 700x50mm |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Seat tube | 410 mm | 410 mm | 455 mm | 455 mm | 500 mm | 535 mm |
| Top tube | 532 mm | 547 mm | 559 mm | 578 mm | 595 mm | 616 mm |
| Head tube | 116 mm | 132 mm | 148 mm | 172 mm | 193 mm | 225 mm |
| Head-tube angle | 68.7° | 68.7° | 68.7° | 68.7° | 68.7° | 68.7° |
| Seat-tube angle | 74.2° | 73.7° | 73.2° | 72.7° | 72.2° | 71.7° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1060 mm | 1071 mm | 1082 mm | 1096 mm | 1108 mm | 1124 mm |
| Bottom-bracket drop | 69 mm | 69 mm | 69 mm | 66 mm | 66 mm | 66 mm |
| Bottom-bracket height | 296 mm | 296 mm | 296 mm | 299 mm | 299 mm | 299 mm |
| Reach | 372 mm | 377 mm | 382 mm | 386 mm | 391 mm | 396 mm |
| Stack | 566 mm | 581 mm | 598 mm | 616 mm | 636 mm | 666 mm |
| Standover height | 725 mm | 730 mm | 769 mm | 777 mm | 814 mm | 848 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Front center | 624 mm | 635 mm | 646 mm | 659 mm | 671 mm | 687 mm |
| Fork length / axle-to-crown | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
48 geometry
Archive context: The head angle of 68.7° sits toward the slacker end. The chainstay of 445 mm sits toward the longer rear-center end. Its bottom-bracket drop of 69 mm sits toward the shallower-drop end.
Compared with 79 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 48 geometry 50 geometry
Archive context: The head angle of 68.7° sits toward the slacker end. Its wheelbase of 1071 mm sits toward the longer end. Its stack of 581 mm sits toward the taller end.
Compared with 79 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 50 geometry 52 geometry
Archive context: The head angle of 68.7° sits toward the slacker end. The chainstay of 445 mm sits toward the longer rear-center end. Its bottom-bracket drop of 69 mm sits toward the shallower-drop end.
Compared with 91 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: The seat angle of 72.7° sits toward the more relaxed end. The head angle of 68.7° sits toward the slacker end. Its bottom-bracket drop of 66 mm sits toward the shallower-drop end.
Compared with 91 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The seat angle of 72.2° sits toward the more relaxed end. The head angle of 68.7° sits toward the slacker end. Its bottom-bracket drop of 66 mm sits toward the shallower-drop end.
Compared with 64 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The seat angle of 71.7° sits toward the more relaxed end. The head angle of 68.7° sits toward the slacker end. Its stack of 666 mm sits toward the taller end.
Compared with 70 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry Parts & serviceability
Find replacement parts
Bottom bracketSRAM PF86.5 DUB WideNamed archived component — verify dimensions
SaddleWTB Volt Medium Cromoly SL FusionNamed archived component — verify exact version
RimsWTB KOM Team i27 TCS CVX 29"Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Kona Ouroboros CR/DL · Cyclocross/Gravel · Published sizes: 48, 50, 52, 54, 56, 58
Frame and fork
Inspect the frame and fork →Archived: Frame: Kona Carbon · Fork: RockShox Rudy Ultimate XPLR / Charger Race Day 2 / 40mm travel / tapered / 12x100
Suspension
Evaluate the suspension →Archived: Fork: RockShox Rudy Ultimate XPLR / Charger Race Day 2 / 40mm travel / tapered / 12x100
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival AXS · Rear derailleur: SRAM Rival XPLR AXS · Crankset: SRAM Rival XPLR 38t / Length 48-52 165mm / 54 170mm / 56-58 172.5mm · Bottom bracket: SRAM PF86.5 DUB Wide · Cassette: SRAM XG 1351 XPLR 10-46t 13sp XDR · Chain: SRAM Rival
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: SRAM Rival AXS; Front Brake Rotor: SRAM Centerline 180mm 6B; Rear Brake Rotor: SRAM Centerline 180mm 6B; Brake Levers: SRAM Rival XPLR
Wheels and tires
Check wheels and tires →Archived: Rims: WTB KOM Team i27 TCS CVX 29" · Hubs: (F) KT 12x100mm / (R) KT 12x142mm XDR · Front tire: WTB Resolute TCS Light 700x50mm · Rear tire: WTB Resolute TCS Light 700x50mm
Controls and contact points
Archived: Headset: FSA Orbit No.57 ZS44/ZS56 · Handlebar: Ritchey Venturemax Comp / 24-degree flare / 4.6 degree back / Width 48-50 460mm / 52-54 480mm / 56 500mm / 58 520mm · Stem: Ritchey Comp Trail / Length 48-52 45mm / 54-58 60mm · Seatpost: Rockshox Reverb AXS 31.6mm / Length 48-52 100mm / 54-58 125mm · Saddle: WTB Volt Medium Cromoly SL Fusion
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

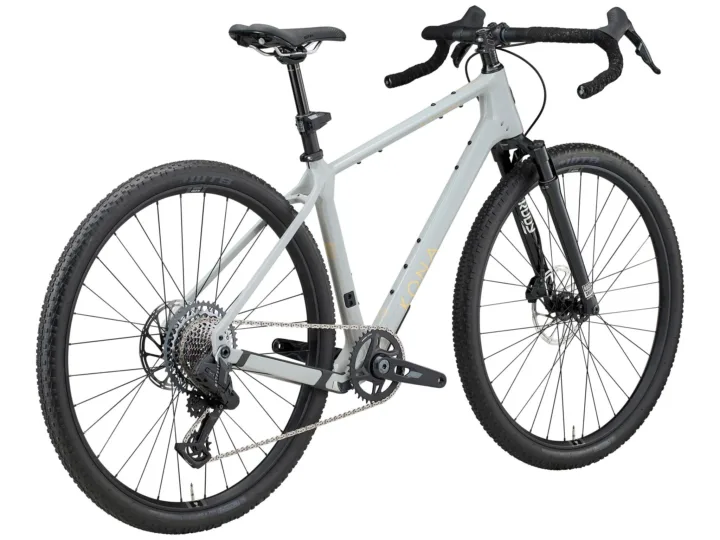

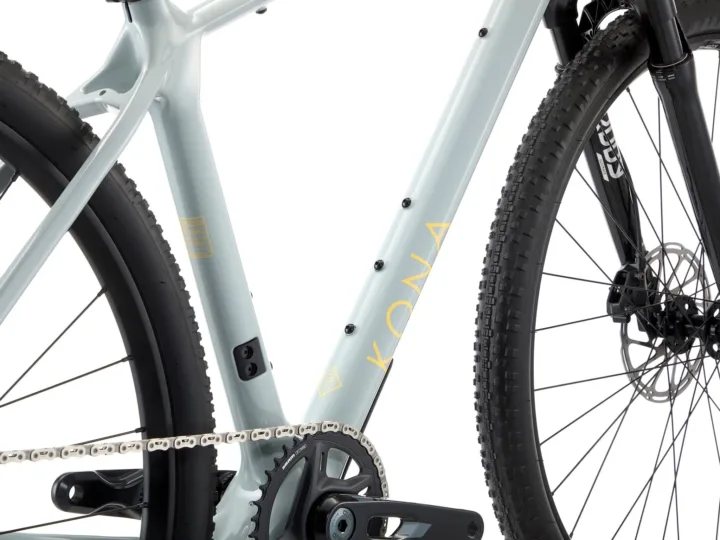

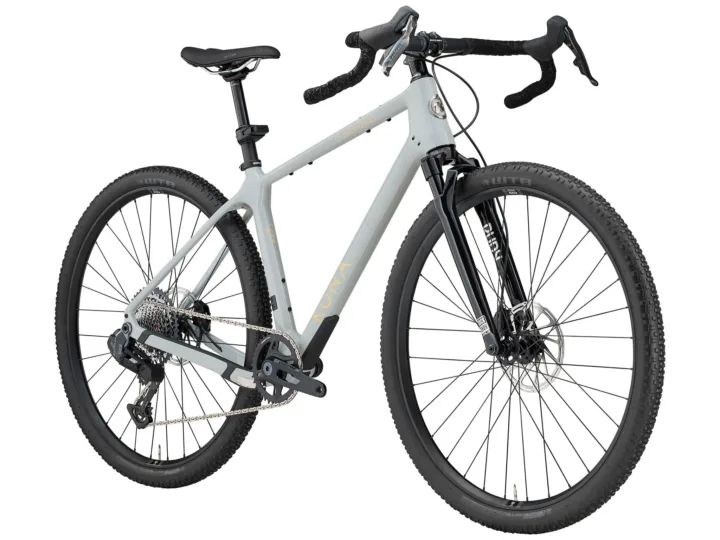

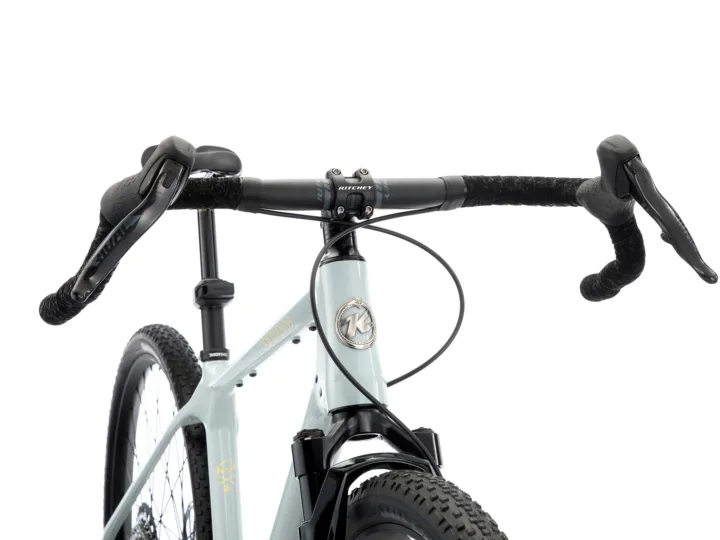

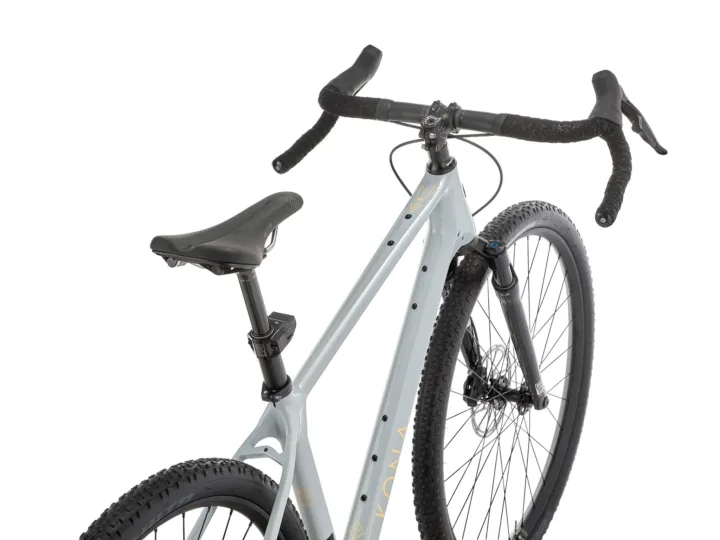

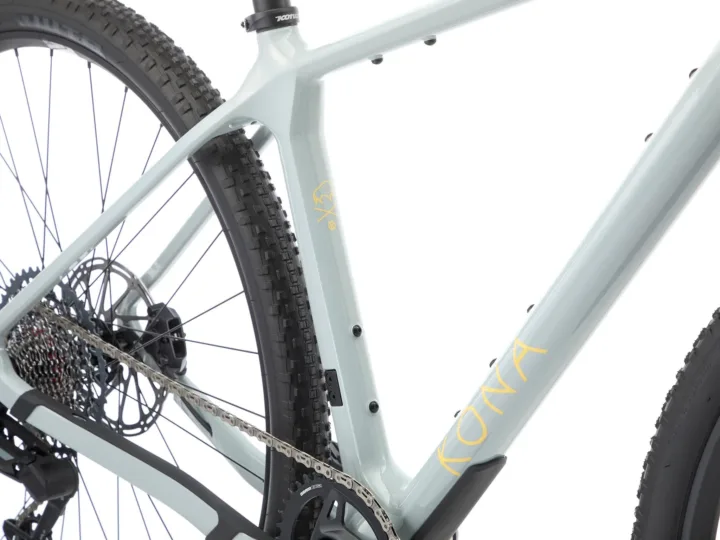

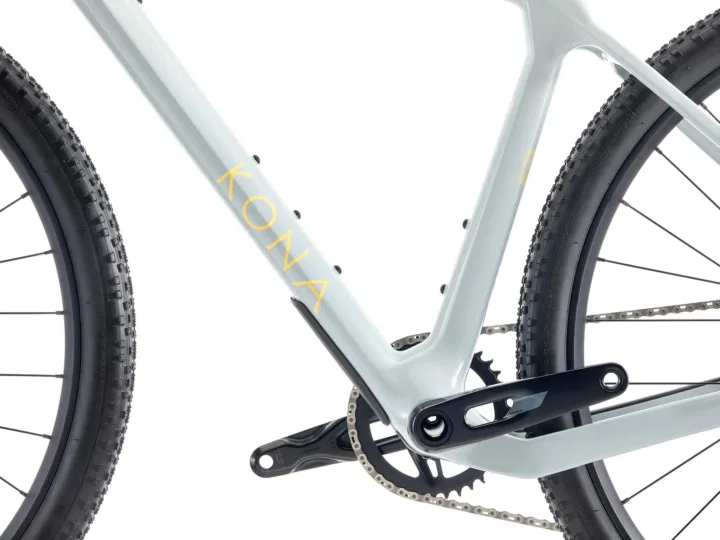

Gallery
