Lowest0.75:1
Highest3.27:1
Total range436%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

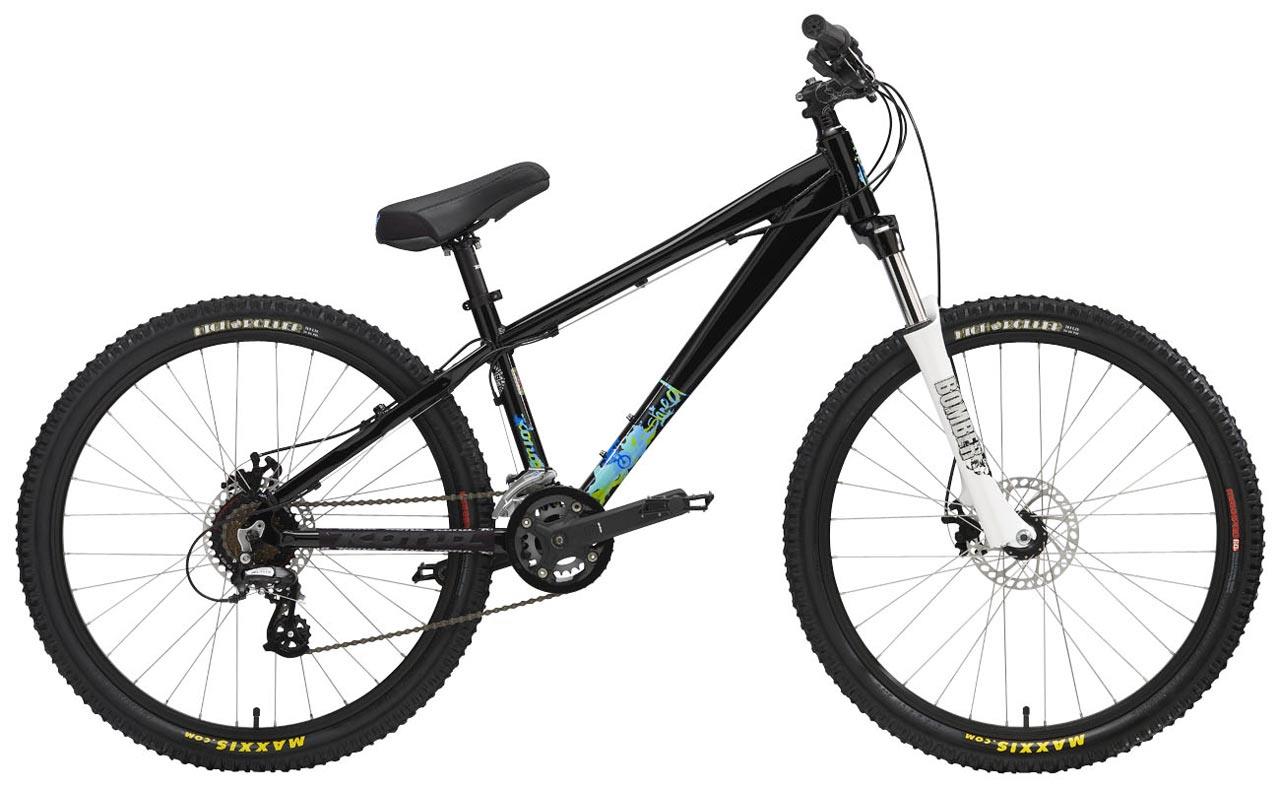

2009 Kona Shred
Original specifications: Shimano Acera · 8-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #16978- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $749.00
- Sizes
- 13", 14", 16", 17"
- Colors
- Black Metallic
- In this record
- 27 specifications · archived image · original MSRP
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Black Metallic
- Frame
- Kona Clump 7005 Aluminum
- Original equipment
- Shimano mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Clump 7005 Aluminum · Shimano mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump 7005 Aluminum |
| Fork | Marzocchi Dirt Jumper 3, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Acera |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Acera |
| Crankset | FSA Step Up, 24/36 teeth |
| Bottom Bracket | RPM Isis DH |
| BB Shell Width | 73mm |
| Cassette | Shimano Acera |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | Shimano HG40 |
| Pedals | Kona Jackshit Deluxe |
Brakes
| Brakes | Hayes MX-4 disc brakes, Avid FR-5 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA ZST-10 |
|---|---|
| Handlebar | Kona OB Riser |
| Handlebar Extensions | Not included |
| Stem | Kona OB |
| Saddle | Kona Dirt Jump |
| Seatpost | Kona Thumb |
Wheels & Tires
| Hubs | Front: Formula DH 20mm, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex DM-24 |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.35" Maxxis High Roller |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Shimano HG40
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Shimano CN-HG40 on eBaySponsored links
FSA Step Up
24/36 teeth
More parts (5)Fewer parts
Shimano Alivio
Shimano Acera
Shimano Acera
1 1/8" FSA ZST-10
Alex DM-24
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Maxxis High Roller
- Drivetrain
- 8-speed
- Bottom bracket / shell
- RPM ISIS DH · 73mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 3, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Dirt Jumper 3, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano mix · Shifters: Shimano Acera · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Acera · Crankset: FSA Step Up, 24/36 teeth · Bottom bracket: RPM ISIS DH · Cassette: Shimano Acera · Rear cogs: 8-speed, 11 - 32 teeth · Chain: Shimano HG40
Brakes
Inspect the brakes →Archived: Brakes: Hayes MX-4 disc brakes, Avid FR-5 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex DM-24 · Hubs: Front: Formula DH 20mm, Rear: Shimano M475 disc · Front tire: 26 x 2.35" Maxxis High Roller
Controls and contact points
Archived: Headset: 1 1/8" FSA ZST-10 · Handlebar: Kona OB Riser · Stem: Kona OB · Seatpost: Kona Thumb · Saddle: Kona Dirt Jump · Pedals: Kona Jackshit Deluxe
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
