Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive
2009 Kona Kula Supreme
Original specifications: Shimano XTR drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #16964- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $5,599.00
- Sizes
- 16", 17", 18", 19", 20"
- Colors
- Yellow/White
- In this record
- 26 specifications · archived image · original MSRP

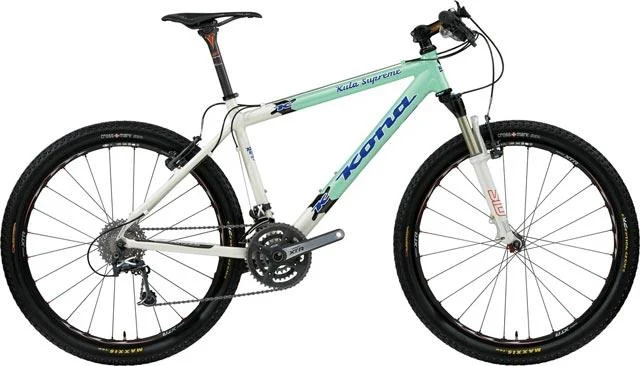

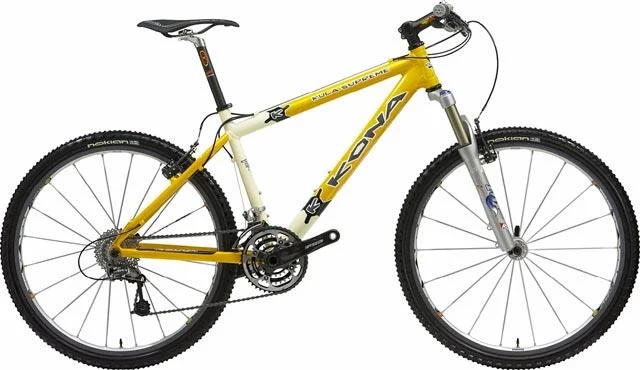

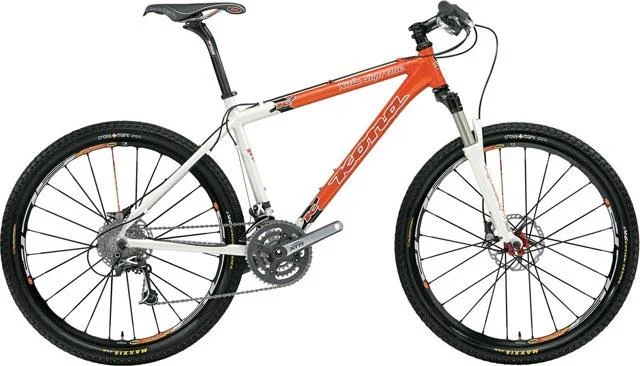

Model history 3 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Yellow/White
- Frame
- Kona Race Light Scandium Butted
- Original equipment
- Shimano XTR
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Race Light Scandium Butted · Shimano XTR · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Race Light Scandium Butted |
| Fork | Fox 32 F80RLC, 80mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR Rapid Fire |
| Front Derailleur | Shimano XTR |
| Rear Derailleur | Shimano XTR Shadow |
| Crankset | Shimano XTR, 22/32/44 teeth |
| Bottom Bracket | Shimano XTR Hollowtech II |
| BB Shell Width | 73mm |
| Cassette | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano XT |
| Pedals | Not included |
Brakes
| Brakes | Shimano XTR Disc brakes, Shimano XTR Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Orbit DL |
|---|---|
| Handlebar | Race Face Next carbon flat |
| Handlebar Extensions | Not included |
| Stem | Race Face Deus SL 31.8 |
| Saddle | Selle Italia Flite |
| Seatpost | Race Face Next SL |
Wheels & Tires
| Hubs | Mavic CrossMax SLR |
|---|---|
| Rims | Mavic CrossMax SLR |
| Front Tire | 26 x 2.10" Maxxis CrossMark Exception |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Shimano XT
26 x 2.10" Maxxis CrossMark Exception
Maxxis CrossMark Exception on eBaySponsored links
Shimano XTR Hollowtech II
More parts (11)Fewer parts
Selle Italia Flite
Shimano XTR
22/32/44 teeth
Shimano XTR
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano XTR Shadow
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano XTR Rapid Fire
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Race Face Next carbon flat
Race Face Deus SL 31.8
Race Face Next SL
1 1/8" FSA Orbit DL
Mavic CrossMax SLR
Mavic CrossMax SLR
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Maxxis CrossMark Exception
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano XTR Hollowtech II · 73mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fox 32 F80RLC, 80mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Fox 32 F80RLC, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano XTR · Shifters: Shimano XTR Rapid Fire · Front derailleur: Shimano XTR · Rear derailleur: Shimano XTR Shadow · Crankset: Shimano XTR, 22/32/44 teeth · Bottom bracket: Shimano XTR Hollowtech II · Cassette: Shimano XTR · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano XT
Brakes
Inspect the brakes →Archived: Brakes: Shimano XTR Disc brakes, Shimano XTR Hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Mavic CrossMax SLR · Hubs: Mavic CrossMax SLR · Front tire: 26 x 2.10" Maxxis CrossMark Exception
Controls and contact points
Archived: Headset: 1 1/8" FSA Orbit DL · Handlebar: Race Face Next carbon flat · Stem: Race Face Deus SL 31.8 · Seatpost: Race Face Next SL · Saddle: Selle Italia Flite · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
