Velopedia Bicycle Archive

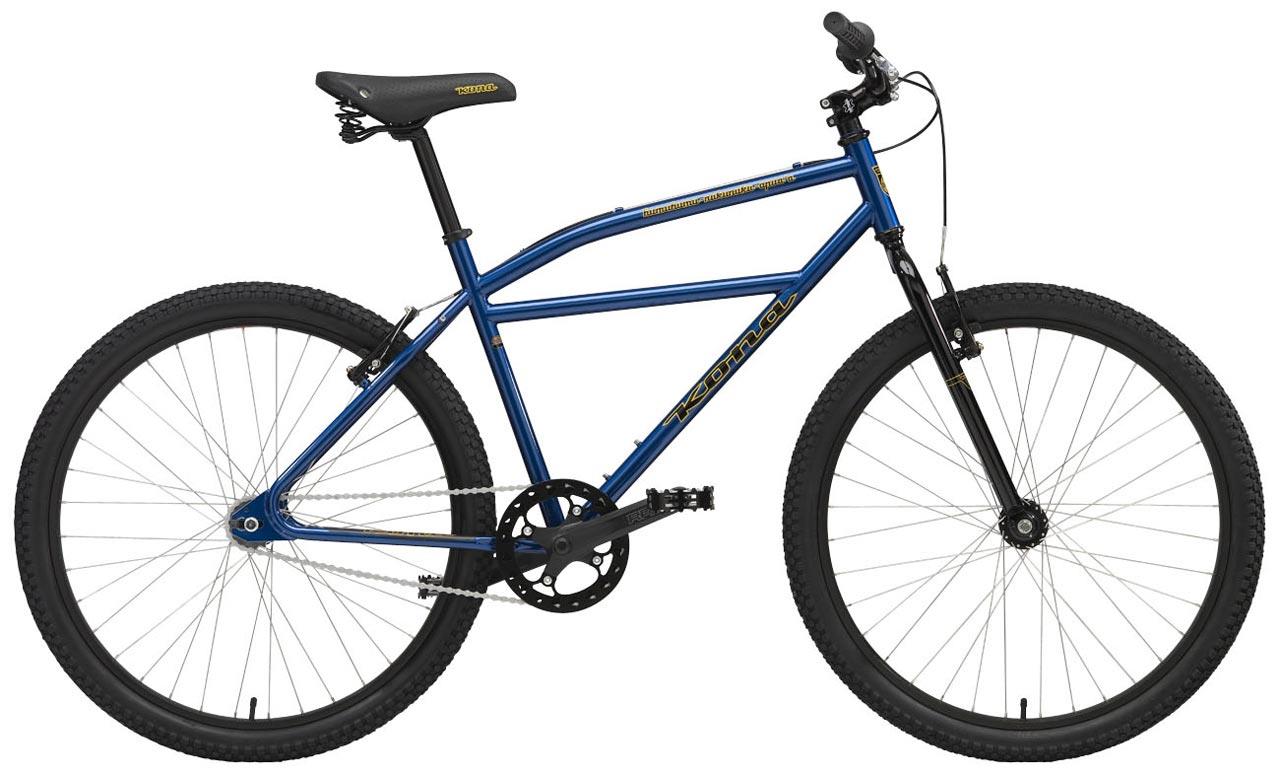

2009 Kona Humu

Original specifications: Cruiser Mix drivetrain · 26" wheels.

Share owner experience

At a glance

Archive #16988

Model year: 2009
Category: Cruiser
Original MSRP: $449.00
Sizes: 16", 18", 20"
Colors: Bright Blue
In this record: 24 specifications · archived image · original MSRP

Model history 4 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors: Bright Blue
Frame: Kona Chromoly Butted
Original equipment: Cruiser Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildKona Chromoly Butted · Cruiser Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

3 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

16"18"20"

Published colors

Bright Blue

View 3 archived size/color combinations

Size	Color
16"	Bright Blue
18"	Bright Blue
20"	Bright Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	Kona Chromoly Butted
Fork	Kona P2
Fork Material	Unicrown

Drivetrain

Component Group	Cruiser Mix
Crankset	CY2F-100BT, 42 teeth
Bottom Bracket	RPM BB-7420
BB Shell Width	68mm
Cassette	Formula Sprocket
Rear Cogs	1-speed, 18 teeth
Chain	KMC Z610
Pedals	Wellgo LU-393

Brakes

Brakes	Tektro 855-AC brakes, Tektro Retro levers

Cockpit & Contact Points

Headset	1 1/8" Ritchey LB-Plus
Handlebar	Kona Riser
Handlebar Extensions	Not included
Stem	Kona Control
Saddle	Velo
Seatpost	Kona Thumb

Wheels & Tires

Hubs	Formula
Rims	Rigida ZAC-19SL
Spokes	Stainless, 14ga. (2.0mm)
Front Tire	26 x 2.30" Kenda K-Rad
Wheel Size	26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

All published sizes42T · 18T · 1-speed

Ratio2.33:1

Estimated speed At 90 RPM Gear16.6 mph

Uses front tire 26×2.3; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

26 x 2.30" Kenda K-Rad

Search Amazon Search eBay

Pedals · Original

Wellgo LU-393

Search Amazon Search eBay

Headset · Original

1 1/8" Ritchey LB-Plus

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 26 x 2.30" Kenda K-Rad
Drivetrain: 1-speed
Bottom bracket / shell: RPM BB-7420 · 68mm
