2022 Jamis Trail XR
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2022
- Category
- Mountain
- Original MSRP
- $509.95
- Sizes
- 13″, 15″, 17″, 19″, 21″, 12″ S/O, 14″ S/O, 18″ S/O
- Colors

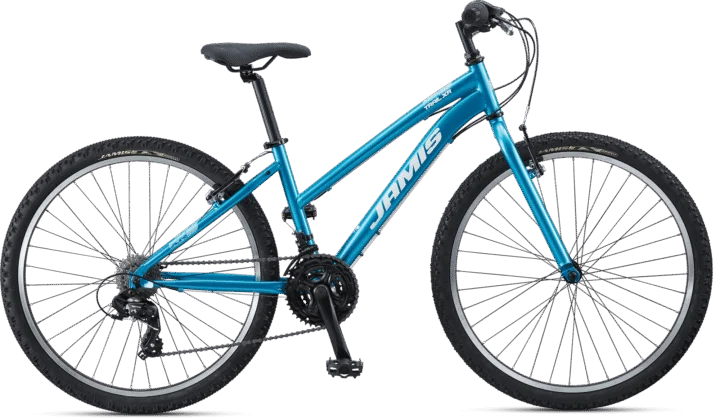

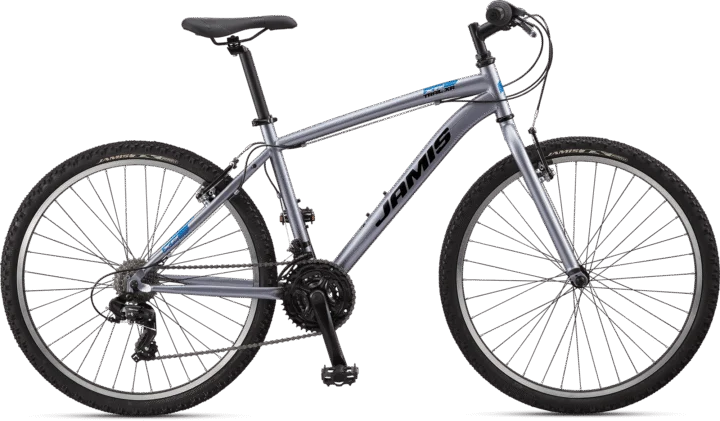

- M: Nickel, Gloss Black S/O: Nickel or Powder Blue
- Weight
- 31.75 lbs
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 24 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900001709
Model history 5 other years
Frameset
| Frame Construction | Hi-tensile steel tubes |
|---|---|
| Frame Material | Steel |
| Fork | Unicrown, hi-tensile steel, with over-sized radiused blades |
| Fork Material | Steel |
Drivetrain
| Component Group | Shimano TY300 rear and Shimano TZ30 front |
|---|---|
| Shifters | Shimano Revoshift 35, 3×7-speed |
| Front Derailleur | Shimano TY300 rear and Shimano TZ30 front |
| Rear Derailleur | Shimano TY300 rear and Shimano TZ30 front |
| Crankset | Forged alloy crank, 42/34/24T, 170mm |
| Bottom Bracket | Bolt type axle |
| Cassette | 7-speed freewheel, 13-28T |
| Chain | KMC Z51, 7-speed |
| Pedals | MTB platform, hi-impact resin |
Brakes
| Brakes | Alloy linear pull type with full alloy 4-finger levers |
|---|
Cockpit & Contact Points
| Headset | Threaded |
|---|---|
| Handlebar | Jamis XC riser, 25.4 x 20mm rise x 620mm |
| Stem | Jamis Hi-Rise, Quill type – 60mm (12-14”), 80mm (15-18”), 100mm (19-21”) |
| Saddle | Jamis ATB Sport, SL cover, protective front and rear guards |
| Seatpost | Jamis alloy micro-adjust, 28.6 x 350mm (12-15”) 400mm (17-21”) |
Wheels & Tires
| Wheels | Alloy 26 x 1.50” 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes |
|---|---|
| Front Tire | CST MTB, 26 X 1.95” |
| Rear Tire | CST MTB, 26 X 1.95” |
| Wheel Size | 26 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 13″ | 15″ | 17″ | 19″ | 21″ | 12″ S/O | 14″ S/O | 18″ S/O |
|---|---|---|---|---|---|---|---|---|
| Effective top tube | 531 mm | 544 mm | 556 mm | 572 mm | 593 mm | 521 mm | 527 mm | 559 mm |
| Head tube | 105 mm | 120 mm | 125 mm | 130 mm | 165 mm | 105 mm | 125 mm | 140 mm |
| Head-tube angle | 70.5° | 70.5° | 71° | 71° | 71.5° | 70.5° | 70° | 70.5° |
| Seat-tube angle | 74° | 74° | 73.5° | 73.5° | 73° | 74° | 73° | 72.5° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1023 mm | 1037 mm | 1039 mm | 1056 mm | 1068 mm | 1013 mm | 1015 mm | 1037 mm |
| Bottom-bracket height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Standover height | 687 mm | 718 mm | 744 mm | 775 mm | 816 mm | 629 mm | 642 mm | 665 mm |
| Fork offset / rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
Geometry source: Jamis first-party geometry table (2021 GEO - TRAIL XR) ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
15″ geometry
Archive context: The head angle of 70.5° sits toward the steeper end. Its wheelbase of 1037 mm sits toward the shorter end. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 20 distinct mountain geometries in the XS-equivalent size cohort from model years 2021–2024 in the Velopedia archive.17″ geometry
Archive context: Its wheelbase of 1039 mm sits toward the shorter end. The head angle of 71° sits toward the steeper end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 64 distinct mountain geometries in the Small-equivalent size cohort from model years 2021–2024 in the Velopedia archive.19″ geometry
Archive context: The head angle of 71° sits toward the steeper end. Its wheelbase of 1056 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 64 distinct mountain geometries in the Small-equivalent size cohort from model years 2021–2024 in the Velopedia archive.21″ geometry
Archive context: The head angle of 71.5° sits toward the steeper end. Its wheelbase of 1068 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 68 distinct mountain geometries in the Medium-equivalent size cohort from model years 2021–2024 in the Velopedia archive.12″ S/O geometry
Archive context: The head angle of 70.5° sits toward the steeper end. Its wheelbase of 1013 mm sits toward the shorter end. The chainstay of 430 mm sits toward the shorter rear-center end.
Compared with 59 distinct mountain geometries in the Large-equivalent size cohort from model years 2021–2024 in the Velopedia archive.14″ S/O geometry
Archive context: The head angle of 70° sits toward the steeper end. Its wheelbase of 1015 mm sits toward the shorter end. The chainstay of 430 mm sits toward the shorter rear-center end.
Compared with 56 distinct mountain geometries in the XL-equivalent size cohort from model years 2021–2024 in the Velopedia archive.18″ S/O geometry
Archive context: The head angle of 70.5° sits toward the steeper end. Its wheelbase of 1037 mm sits toward the shorter end. The chainstay of 430 mm sits toward the shorter rear-center end.
Compared with 21 distinct mountain geometries in the XXL-equivalent size cohort from model years 2021–2026 in the Velopedia archive.Parts & serviceability
Find replacement parts
ChainKMC Z51, 7-speedExact archived model
Brake padsLinear-pull brake padsPublished brake type — verify pad mounting style
Seatpost28.6 mm seatpostPublished diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesInspect pad condition, cable movement and the rim sidewalls or brake tracks for wear. A concave or heavily worn braking surface can mean the wheel also needs replacement.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 7-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Jamis Trail XR · Mountain · Published sizes: 13″, 15″, 17″, 19″, 21″, 12″ S/O, 14″ S/O, 18″ S/O
Frame and fork
Inspect the frame and fork →Archived: Frame: Hi-tensile steel tubes · Fork: Unicrown, hi-tensile steel, with over-sized radiused blades · Steel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano TY300 rear and Shimano TZ30 front · Shifters: Shimano Revoshift 35, 3×7-speed · Front derailleur: Shimano TY300 rear and Shimano TZ30 front · Rear derailleur: Shimano TY300 rear and Shimano TZ30 front · Crankset: Forged alloy crank, 42/34/24T, 170mm · Bottom bracket: Bolt type axle · Cassette: 7-speed freewheel, 13-28T · Chain: KMC Z51, 7-speed
Brakes
Inspect the brakes →Archived: Brakes: Alloy linear pull type with full alloy 4-finger levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26 · Wheels: Alloy 26 x 1.50” 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes · Front tire: CST MTB, 26 x 1.95” · Rear tire: CST MTB, 26 x 1.95”
Controls and contact points
Archived: Headset: Threaded · Handlebar: Jamis XC riser, 25.4 x 20mm rise x 620mm · Stem: Jamis Hi-Rise, Quill type – 60mm (12-14”), 80mm (15-18”), 100mm (19-21”) · Seatpost: Jamis alloy micro-adjust, 28.6 x 350mm (12-15”) 400mm (17-21”) · Saddle: Jamis ATB Sport, SL cover, protective front and rear guards · Pedals: MTB platform, hi-impact resin
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
