Velopedia Bicycle Archive

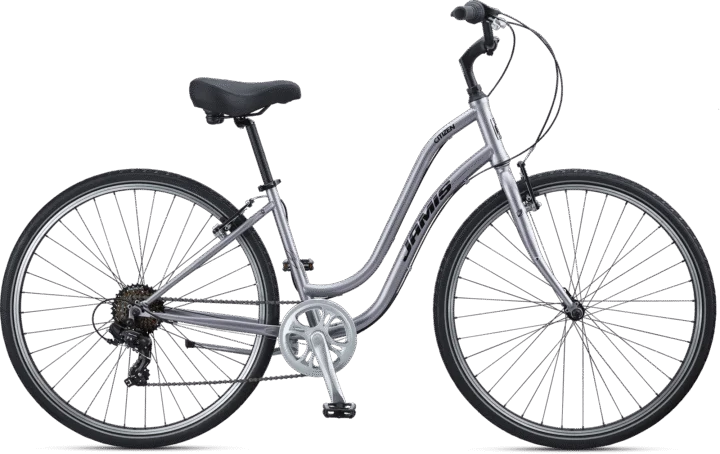

2022 Jamis Citizen
Hybrid bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2022
- Category
- Hybrid
- Original MSRP
- $539.95
- Sizes
- 15″, 17″, 19″, 21″, 23″, 14″ S/T, 16″ S/T, 18″ S/T
- Colors
- M: Gloss Black, Nickel S/T: Ocean Mist, Nickel
- Weight
- 31.75 lbs
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001704
Model history 12 other years
Frameset
| Frame Construction | Hi-tensile steel frame, sloping design for men’s, step through design for ladies, center-mount kickstand plate and fender/rack eyelets |
|---|---|
| Frame Material | Steel |
| Fork | Hi-tensile steel unicrown, radius blades with dropout eyelets |
| Fork Material | Steel |
Drivetrain
| Component Group | Shimano Tourney RD-TY300 rear |
|---|---|
| Shifters | Shimano Revoshift, SL-RS35, 7-speed |
| Rear Derailleur | Shimano Tourney RD-TY300 rear |
| Crankset | Forged alloy crank, single 44T, 170mm with chainguard |
| Bottom Bracket | Sealed cartridge, 68 x 122.5mm |
| Cassette | Shimano MF-TZ5001 7-speed, 14-34T |
| Chain | KMC Z7 |
| Pedals | Comfort platform style with TPE non-slip insert |
Brakes
| Brakes | Promax TX-121 linear-pull with Tektro CL530 ergonomic design alloy levers with kraton insert |
|---|
Cockpit & Contact Points
| Headset | Water-resistant sealed mechanism, threaded, 1 1/8” |
|---|---|
| Handlebar | Comfort hi-rise, steel, 25.4 x 80mm rise x 15 ̊ sweep x 640mm |
| Stem | Jamis alloy hi-rise, 35 ̊ rise x 90mm with 150mm quill (14 ̊18”), 110mm with 180mm quill (19 ̊23”) |
| Saddle | Jamis Comfort with synthetic suede cover, burnished sides and bumper springs with satin steel rails, gender specific |
| Seatpost | Jamis alloy micro-adjust, 25.4 x 350mm with alloy QR clamp. 300mm for Men’s 15, 17, Step-Thru 14 |
Wheels & Tires
| Wheels | Alloy rims, 36H, alloy hubs with QR and 14g ED black spokes |
|---|---|
| Front Tire | CST Platinum Performance with silver safety stripe, 700 x 38c |
| Rear Tire | CST Platinum Performance with silver safety stripe, 700 x 38c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 15″ | 17″ | 19″ | 21″ | 23″ | 14″ S/T | 16″ S/T | 18″ S/T |
|---|---|---|---|---|---|---|---|---|
| Effective top tube | 566 mm | 610 mm | 616 mm | 631 mm | 645 mm | 564 mm | 584 mm | 595 mm |
| Head tube | 140 mm | 150 mm | 160 mm | 170 mm | 180 mm | 160 mm | 170 mm | 180 mm |
| Head-tube angle | 70° | 70° | 70° | 70° | 70° | 70° | 70° | 70° |
| Seat-tube angle | 73° | 72° | 72° | 72° | 72° | 73° | 73° | 73° |
| Chainstay / rear center | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1076 mm | 1101 mm | 1116 mm | 1131 mm | 1146 mm | 1076 mm | 1096 mm | 1106 mm |
| Bottom-bracket height | 287 mm | 287 mm | 287 mm | 287 mm | 287 mm | 287 mm | 287 mm | 287 mm |
| Standover height | 725 mm | 758 mm | 794 mm | 825 mm | 851 mm | 451 mm | 462 mm | 479 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
Geometry source: Jamis first-party geometry table (2021 GEO - CITIZEN) ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
17″ geometry
Archive context: Its wheelbase of 1101 mm sits toward the longer end. The seat angle of 72° sits toward the more relaxed end. The chainstay of 455 mm sits toward the longer rear-center end.
Compared with 12 distinct hybrid geometries in the XS-equivalent size cohort from model years 2021–2026 in the Velopedia archive.19″ geometry
Archive context: Its wheelbase of 1116 mm sits toward the longer end. The seat angle of 72° sits somewhat more relaxed than typical. The head angle of 70° sits close to the middle of the group.
Compared with 21 distinct hybrid geometries in the Small-equivalent size cohort from model years 2021–2024 in the Velopedia archive.21″ geometry
Archive context: Its wheelbase of 1131 mm sits toward the longer end. The seat angle of 72° sits somewhat more relaxed than typical. The head angle of 70° sits close to the middle of the group.
Compared with 21 distinct hybrid geometries in the Small-equivalent size cohort from model years 2021–2024 in the Velopedia archive.23″ geometry
Archive context: Its wheelbase of 1146 mm sits toward the longer end. The seat angle of 72° sits somewhat more relaxed than typical. The head angle of 70° sits somewhat slacker than typical.
Compared with 20 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2021–2024 in the Velopedia archive.14″ S/T geometry
Archive context: Its wheelbase of 1076 mm sits toward the shorter end. The head angle of 70° sits somewhat slacker than typical. The seat angle of 73° sits close to the middle of the group.
Compared with 20 distinct hybrid geometries in the Large-equivalent size cohort from model years 2021–2024 in the Velopedia archive.16″ S/T geometry
Archive context: The head angle of 70° sits toward the slacker end. The chainstay of 455 mm sits somewhat longer than typical. The seat angle of 73° sits close to the middle of the group.
Compared with 10 distinct hybrid geometries in the XL-equivalent size cohort from model years 2021–2024 in the Velopedia archive.Parts & serviceability
Find replacement parts
ChainKMC Z7Exact archived model
CassetteShimano MF-TZ5001 7-speed, 14-34TExact archived model
Front tireCST Platinum Performance with silver safety stripe, 700 x 38cNamed tire and published size
More qualified parts (4)
Brake padsLinear-pull brake padsPublished brake type — verify pad mounting style
Rear derailleurShimano Tourney RD-TY300 rearExact archived model
ShiftersShimano Revoshift, SL-RS35, 7-speedExact archived model
Seatpost25.4 mm seatpostPublished diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesInspect pad condition, cable movement and the rim sidewalls or brake tracks for wear. A concave or heavily worn braking surface can mean the wheel also needs replacement.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 7-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Jamis Citizen · Hybrid · Published sizes: 15″, 17″, 19″, 21″, 23″, 14″ S/T, 16″ S/T, 18″ S/T
Frame and fork
Inspect the frame and fork →Archived: Frame: Hi-tensile steel frame, sloping design for men’s, step through design for ladies, center-mount kickstand plate and fender/rack eyelets · Fork: Hi-tensile steel unicrown, radius blades with dropout eyelets · Steel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tourney RD-TY300 rear · Shifters: Shimano Revoshift, SL-RS35, 7-speed · Rear derailleur: Shimano Tourney RD-TY300 rear · Crankset: Forged alloy crank, single 44T, 170mm with chainguard · Bottom bracket: Sealed cartridge, 68 x 122.5mm · Cassette: Shimano MF-TZ5001 7-speed, 14-34T · Chain: KMC Z7
Brakes
Inspect the brakes →Archived: Brakes: Promax TX-121 linear-pull with Tektro CL530 ergonomic design alloy levers with kraton insert
Wheels and tires
Check wheels and tires →Archived: Wheels: Alloy rims, 36H, alloy hubs with QR and 14g ED black spokes · Front tire: CST Platinum Performance with silver safety stripe, 700 x 38c · Rear tire: CST Platinum Performance with silver safety stripe, 700 x 38c
Controls and contact points
Archived: Headset: Water-resistant sealed mechanism, threaded, 1 1/8” · Handlebar: Comfort hi-rise, steel, 25.4 x 80mm rise x 15 ̊ sweep x 640mm · Stem: Jamis alloy hi-rise, 35 ̊ rise x 90mm with 150mm quill (14 ̊18”), 110mm with 180mm quill (19 ̊23”) · Seatpost: Jamis alloy micro-adjust, 25.4 x 350mm with alloy QR clamp. 300mm for Men’s 15, 17, Step-Thru 14 · Saddle: Jamis Comfort with synthetic suede cover, burnished sides and bumper springs with satin steel rails, gender specific · Pedals: Comfort platfo…
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
