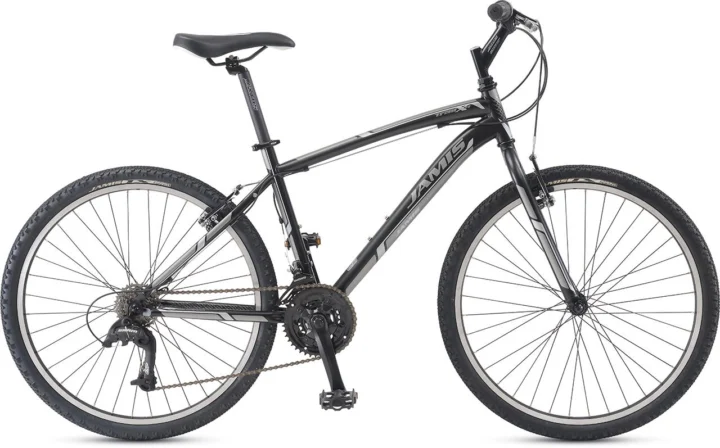

2014 Jamis Trail XR

Original specifications.

Share owner experience

At a glance

Archive #9258348

Model year: 2014
Sizes: 13", 15", 17", 19", 21"
Colors: Ano Black, Stainless
In this record: 16 specifications · 2 archived images

Model history 5 other years

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors: Ano Black, Stainless
Frame: Hi-tensile carbon steel tubes

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildHi-tensile carbon steel tubes

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13"15"17"19"21"

Published colors

Ano BlackStainless

Frameset

Frame Material	Hi-tensile carbon steel tubes
Fork	Unicrown

Drivetrain

Front Derailleur	Shimano TZ30
Rear Derailleur	SRAM X3
Crankset	Alloy 42/34/24t
Bottom Bracket	Vp
Cassette	Freewheel 13x28t
Chain	KMC Z51
Pedals	Platform

Brakes

Brakes	Alloy Linear Pull

Cockpit & Contact Points

Headset	VP threaded type, 1 1/8"
Handlebar	Jamis XC
Stem	Alloy
Saddle	Jamis ATB Sport
Seatpost	Alloy micro-adjust

Wheels & Tires

Front Tire	Jamis TX, 26 x 1.95"

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/34/24T · 13–28T

Lowest0.86:1 Highest3.23:1 Total range377%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC Z51

Search Amazon Search eBay

Front tire · Original

Jamis TX

26 x 1.95"

Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Brake pads · Original

Alloy Linear Pull

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Jamis TX, 26 x 1.95"
Bottom bracket / shell: VP

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Hi-tensile carbon steel tubes · Fork: Unicrown

Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Front derailleur: Shimano TZ30 · Rear derailleur: SRAM X3 · Crankset: Alloy 42/34/24t · Bottom bracket: VP · Cassette: Freewheel 13x28t · Chain: KMC Z51

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Alloy Linear Pull

Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Controls and contact points

Archived: Headset: VP threaded type, 1 1/8" · Handlebar: Jamis XC · Stem: Alloy · Seatpost: Alloy micro-adjust · Saddle: Jamis ATB Sport · Pedals: Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
