Lowest1.15:1
Highest4.33:1
Total range376%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

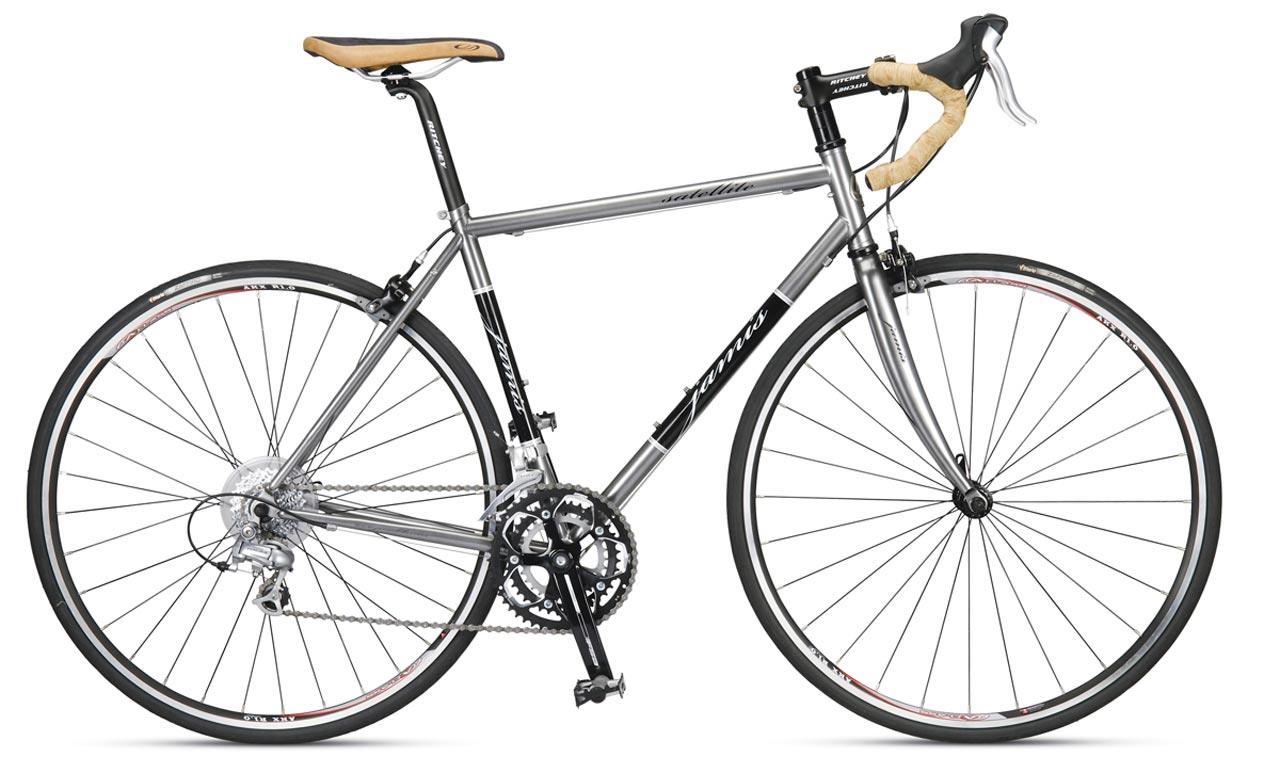

2009 Jamis Satellite
Original specifications: Shimano Sora drivetrain · 700c wheels · 21.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #18310- Model year
- 2009
- Category
- Road
- Original MSRP
- $950.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Chromium/Gloss Black
- Weight
- 21.5 lb
- In this record
- 27 specifications · archived image · original MSRP

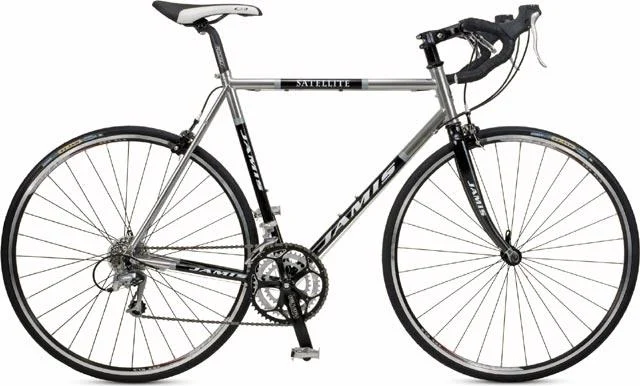

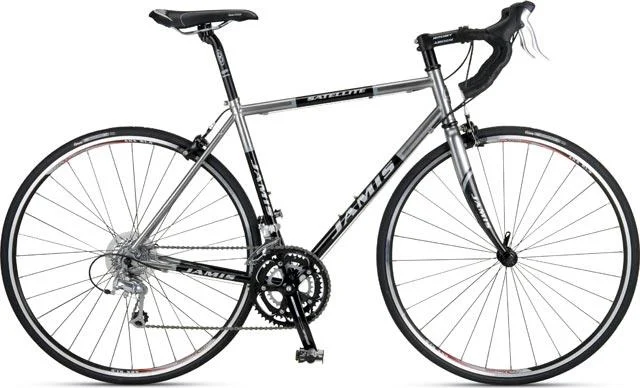

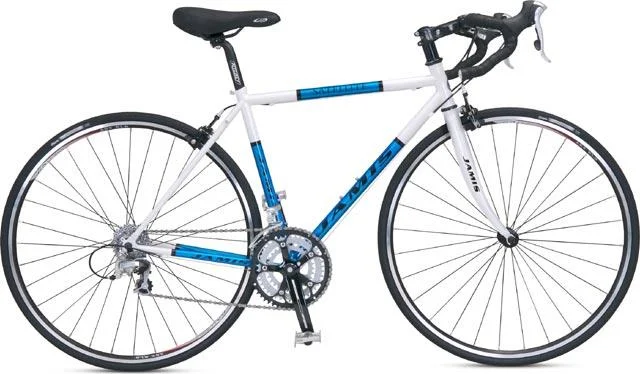

Model history 6 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Chromium/Gloss Black
- Frame
- Reynolds 520 Butted Chromoly
- Original equipment
- Shimano Sora
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 520 Butted Chromoly · Shimano Sora · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 520 Butted Chromoly |
| Fork | Jamis |
| Fork Material | Carbon fiber/carbon fiber steerer, aero crown |
Drivetrain
| Component Group | Shimano Sora |
|---|---|
| Shifters | Shimano Sora STI |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Tiagra |
| Crankset | FSA Vero Triple, 30/42/52 teeth |
| Bottom Bracket | Sealed cartridge, 116mm spindle |
| BB Shell Width | 68mm |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 12 - 26 teeth |
| Chain | KMC Z9000 |
| Pedals | Alloy cage w/clips & straps |
Brakes
| Brakes | Tektro dual pivot brakes, Shimano Sora STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey LB |
|---|---|
| Handlebar | Ritchey BioMax II Road |
| Handlebar Extensions | Not included |
| Stem | Ritchey Road 31.8mm clamp |
| Saddle | Jamis Sport |
| Seatpost | Ritchey Road, 27.2mm diameter |
Wheels & Tires
| Hubs | Alex AKX R1.0 |
|---|---|
| Rims | Alex AKX R1.0, 28-hole/32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro on eBaySponsored links
Ritchey Road
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (8)Fewer parts
FSA Vero Triple
30/42/52 teeth
Shimano Sora
Shimano Tiagra
Shimano Sora STI
Ritchey BioMax II Road
1 1/8" Ritchey LB
Alex AKX R1.0
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed cartridge, 116mm spindle · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Jamis · Carbon fiber/carbon fiber steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Sora · Shifters: Shimano Sora STI · Front derailleur: Shimano Sora · Rear derailleur: Shimano Tiagra · Crankset: FSA Vero Triple, 30/42/52 teeth · Bottom bracket: Sealed cartridge, 116mm spindle · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 12 - 26 teeth · Chain: KMC Z9000
Brakes
Inspect the brakes →Archived: Brakes: Tektro dual pivot brakes, Shimano Sora STI levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex AKX R1.0, 28-hole/32-hole · Hubs: Alex AKX R1.0 · Front tire: 700 x 23c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" Ritchey LB · Handlebar: Ritchey BioMax II Road · Stem: Ritchey Road 31.8mm clamp · Seatpost: Ritchey Road, 27.2mm diameter · Saddle: Jamis Sport · Pedals: Alloy cage w/clips & straps
