Lowest1.30:1
Highest4.33:1
Total range332%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

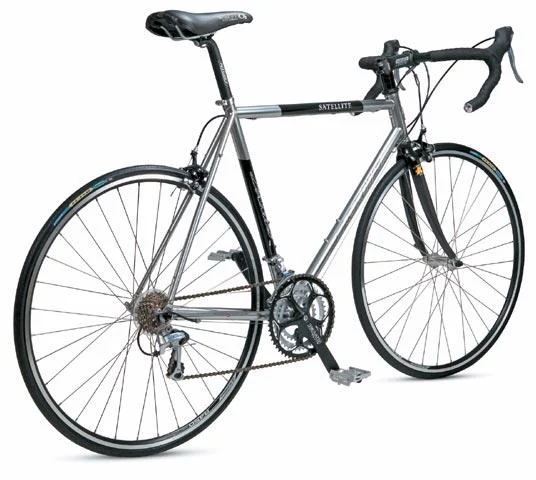

2005 Jamis Satellite
Original specifications: Shimano Sora Triple drivetrain · 700c wheels · 23.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #93138- Model year
- 2005
- Category
- Road
- Original MSRP
- $689.95
- Sizes
- 50cm, 53cm, 55cm, 57cm, 59cm, 62cm, XS
- Colors
- Platinum/Black
- Weight
- 23.5 lb
- In this record
- 27 specifications · archived image · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2005 archived details
- Published colors
- Platinum/Black
- Frame
- Reynolds 520
- Original equipment
- Shimano Sora Triple
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 520 · Shimano Sora Triple · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 520 |
| Fork | Kinesis Carbon II |
| Fork Material | Carbon fiber/chromoly steerer, aero crown |
Drivetrain
| Component Group | Shimano Sora Triple |
|---|---|
| Shifters | Shimano Sora STI Dual Control |
| Front Derailleur | Shimano Sora Triple, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Sora GS |
| Crankset | TruVativ Touro, 30/42/52 teeth |
| Bottom Bracket | TruVativ cartridge, 113mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 12 - 23 teeth |
| Chain | KMC HG-50, 1/2 x 3/32" |
| Pedals | Platform, resin |
Brakes
| Brakes | Tektro dual pivot brakes, Shimano Sora STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset |
|---|---|
| Handlebar | Ritchey Biomax II |
| Handlebar Extensions | Not included |
| Stem | Ritchey Comp |
| Saddle | Selle Royale Look-In |
| Seatpost | Ritchey Comp, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Shimano HB-2200, Rear: Shimano FH-2200 |
|---|---|
| Rims | Alex R450, 28-hole/32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 23c Hutchinson Flash |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC HG-50
1/2 x 3/32"
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
700 x 23c Hutchinson Flash
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Hutchinson Flash on eBaySponsored links
Ritchey Comp
Retailer offers
Ritchey Comp 4-Axis 30D Stem Black, 70mm, -30 deg
Model match
More parts (4)Fewer parts
Ritchey Comp
27.2mm diameter
Retailer offers
Ritchey Comp 2-Bolt Seatpost Black, 27.2x400mm
Model match
Shimano Sora GS
Shimano Sora STI Dual Control
Ritchey Biomax II
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Hutchinson Flash
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- TruVativ cartridge, 113mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kinesis Carbon II · Carbon fiber/chromoly steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Sora Triple · Shifters: Shimano Sora STI Dual Control · Front derailleur: Shimano Sora Triple, bottom-pull/clamp-on 28.6mm · Rear derailleur: Shimano Sora GS · Crankset: TruVativ Touro, 30/42/52 teeth · Bottom bracket: TruVativ cartridge, 113mm spindle · Rear cogs: 8-speed, 12 - 23 teeth · Chain: KMC HG-50, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro dual pivot brakes, Shimano Sora STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex R450, 28-hole/32-hole · Hubs: Front: Shimano HB-2200, Rear: Shimano FH-2200 · Front tire: 700 x 23c Hutchinson Flash
Controls and contact points
Archived: Headset: 1 1/8" threadless Aheadset · Handlebar: Ritchey Biomax II · Stem: Ritchey Comp · Seatpost: Ritchey Comp, 27.2mm diameter · Saddle: Selle Royale Look-In · Pedals: Platform, resin
