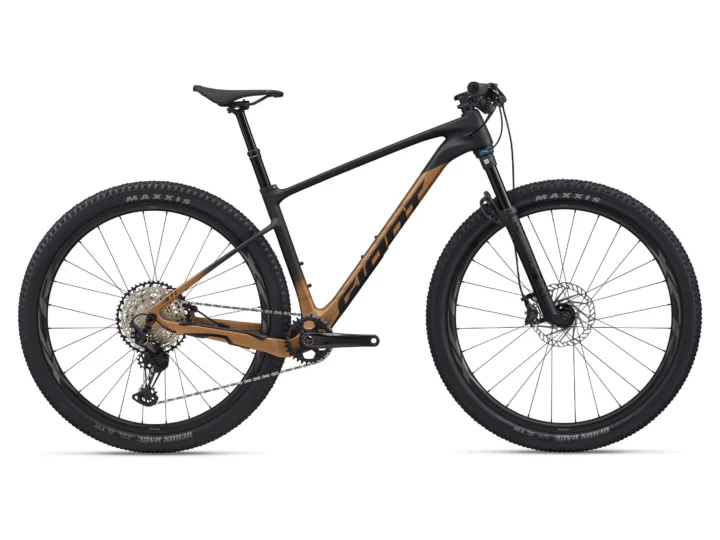

2026 Giant XTC Advanced 29 1
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,000.00
- Sizes
- S, M, L, XL
- Colors
- Abyss Black/Steampunk
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · archived image · original MSRP · preserved geometry
- Archive ID
- 900001267
Model history 3 other years
Frameset
| Frame Construction | Advanced-grade composite, 12x148mm thru-axle |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox 32 Float Step Cast Performance, 100mm, GRIP damper, 44mm offset, two-position remote lockout, Boost 15x110 Kabolt |
| Rear Shock | N/A |
Drivetrain
| Shifters | Shimano Deore XT M8100, 1x12 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore XT M8100 |
| Crankset | Shimano Deore XT M8120, 32t S:170mm, M:175mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Cassette | Shimano SLX M7100, 10x51 |
| Chain | KMC X-12 |
Brakes
| Brakes | Shimano Deore XT BR-M8100, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact XC 35, 760x35mm |
|---|---|
| Stem | Giant Contact SL XC 35 S:60mm, M:70mm, L:80mm, XL:90mm |
| Saddle | Giant Grit SL |
| Seatpost | Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm XL |
Wheels & Tires
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
|---|---|
| Rims | Giant XCR 2 Carbon 29 WheelSystem |
| Spokes | Sapim |
| Front Tire | [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO |
| Rear Tire | [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 380 mm | 431 mm | 475 mm | 525 mm |
| Top tube | 595 mm | 614 mm | 635 mm | 665 mm |
| Head tube | 95 mm | 95 mm | 105 mm | 115 mm |
| Head-tube angle | 69.5° | 69.5° | 70° | 70° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1087 mm | 1106 mm | 1128 mm | 1159 mm |
| Bottom-bracket drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Reach | 416 mm | 435 mm | 453 mm | 477 mm |
| Stack | 604 mm | 604 mm | 613 mm | 632 mm |
| Standover height | 737 mm | 764 mm | 791 mm | 829 mm |
| Fork offset / rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Crank length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 70 mm | 80 mm | 90 mm |
| Handlebar width | 760 mm | 760 mm | 760 mm | 760 mm |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: The head angle of 69.5° sits toward the steeper end. Its wheelbase of 1087 mm sits toward the shorter end. Its trail of 95 mm sits toward the lower-trail end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The head angle of 69.5° sits toward the steeper end. Its wheelbase of 1106 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The head angle of 70° sits toward the steeper end. Its wheelbase of 1128 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The head angle of 70° sits toward the steeper end. Its wheelbase of 1159 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X-12
Exact archived model
Shimano SLX M7100, 10x51
Interpreted as Shimano SLX · 12-speed Named component · published drivetrain speed — verify exact version
Shimano Deore XT BR-M8100, hydraulic
Brake model identified — verify pad shape
More qualified parts (3)
Shimano Deore XT M8120, 32t S:170mm, M:175mm, L:175mm, XL:175mm
Component family — verify exact version
Shimano Deore XT M8100
Interpreted as Shimano Deore XT · 12-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano Deore XT M8100, 1x12
Interpreted as Shimano Deore XT · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Giant XTC Advanced 29 1 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite, 12x148mm thru-axle · Fork: Fox 32 Float Step Cast Performance, 100mm, GRIP damper, 44mm offset, two-position remote lockout, Boost 15x110 Kabolt
Suspension
Evaluate the suspension →Archived: Fork: Fox 32 Float Step Cast Performance, 100mm, GRIP damper, 44mm offset, two-position remote lockout, Boost 15x110 Kabolt
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore XT M8100, 1x12 · Rear derailleur: Shimano Deore XT M8100 · Crankset: Shimano Deore XT M8120, 32t S:170mm, M:175mm, L:175mm, XL:175mm · Bottom bracket: Shimano, press fit · Cassette: Shimano SLX M7100, 10x51 · Chain: KMC X-12
Brakes
Inspect the brakes →Archived: Brakes: Shimano Deore XT BR-M8100, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant XCR 2 Carbon 29 WheelSystem · Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt · Front tire: [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO · Rear tire: [F] Maxxis Rekon Race, 29x2.4, [R] Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO
Controls and contact points
Archived: Handlebar: Giant Contact XC 35, 760x35mm · Stem: Giant Contact SL XC 35 S:60mm, M:70mm, L:80mm, XL:90mm · Seatpost: Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 100mm travel / 30.9 x 350mm L: 120mm travel / 30.9 x 400mm XL · Saddle: Giant Grit SL
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
