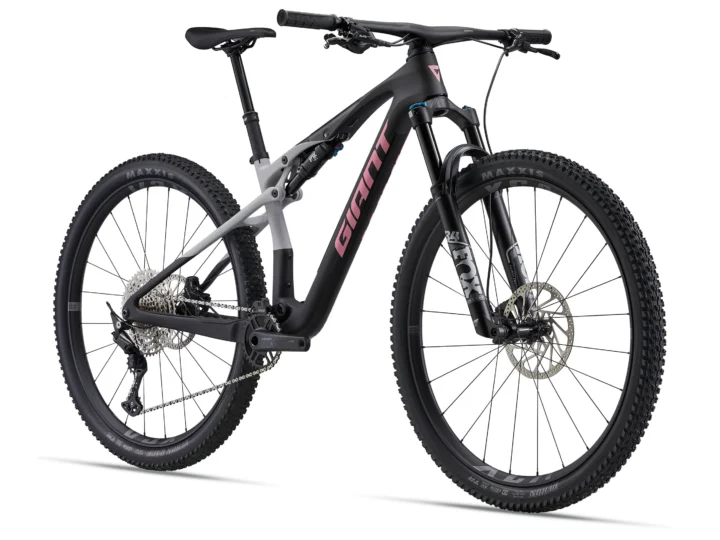

2026 Giant Anthem X Advanced SL 3
Original manufacturer specifications including geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Carbon/Moon Dust
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 8 archived images · preserved geometry
- Archive ID
- 900001299
Frameset

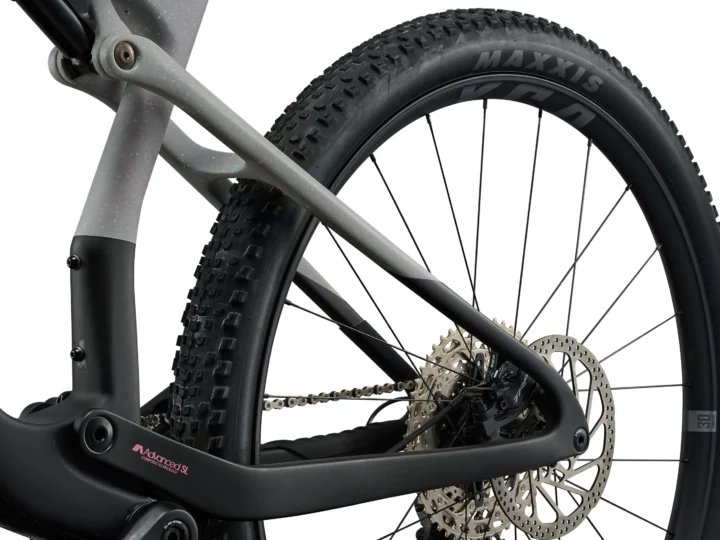

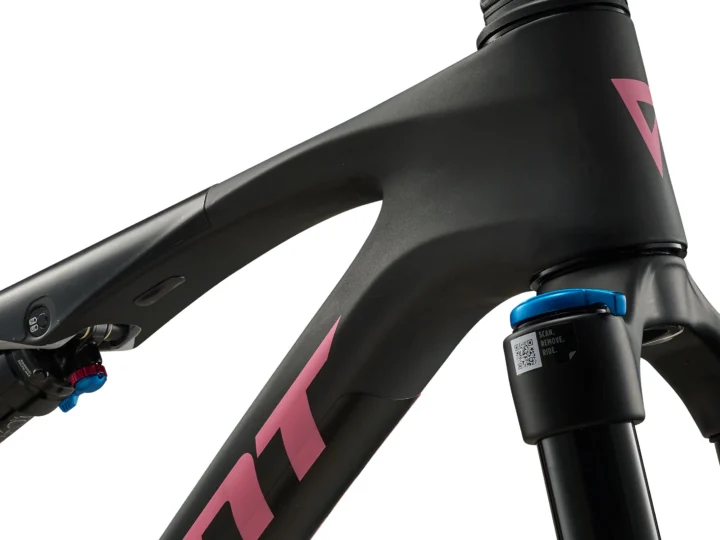

| Frame Construction | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage |
|---|---|
| Frame Material | Carbon Fiber |

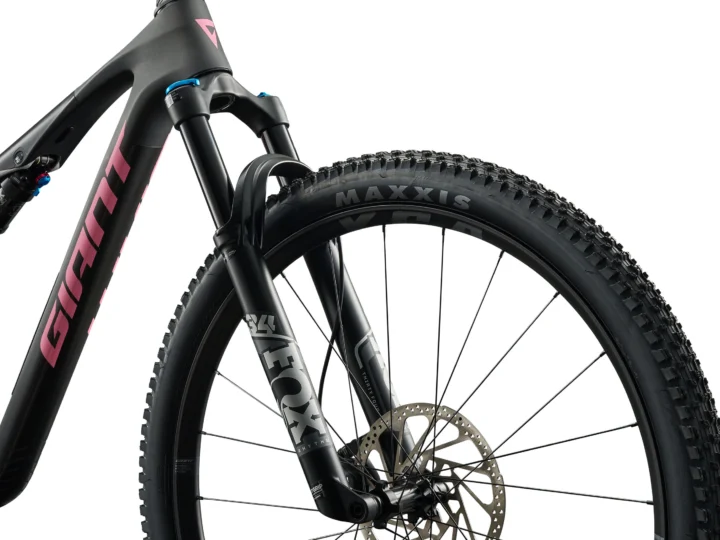

| Fork | Fox 34 Rhythm, 130mm, GRIP damper, Boost 15x110, 44mm offset |

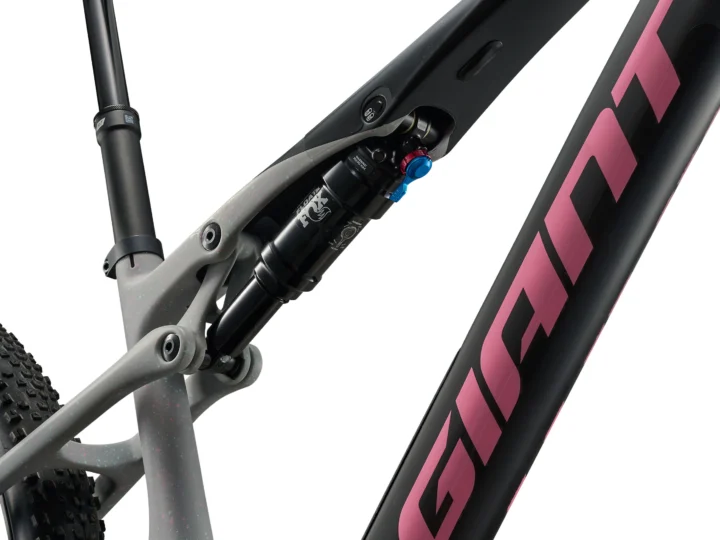

| Rear Shock | Fox Float SL Performance, 210/50 |
Drivetrain
| Shifters | Shimano Deore mechanical, 1x12 |
|---|---|
| Front Derailleur | N/A |

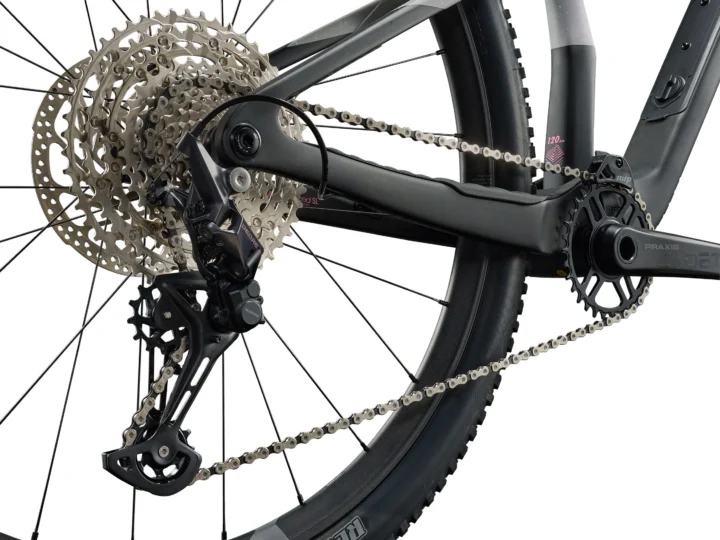

| Rear Derailleur | Shimano Deore |
| Crankset | Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | Praxis, press fit |
| Cassette | Shimano M6200, 10x51 |
| Chain | KMC X-12 |
| Pedals | N/A |
Brakes
| Brakes | TRP EVO Comp HD-M7040 hydraulic, stainless, 6-bolt rotors [F]203mm, [R]180mm |
|---|
Cockpit & Contact Points

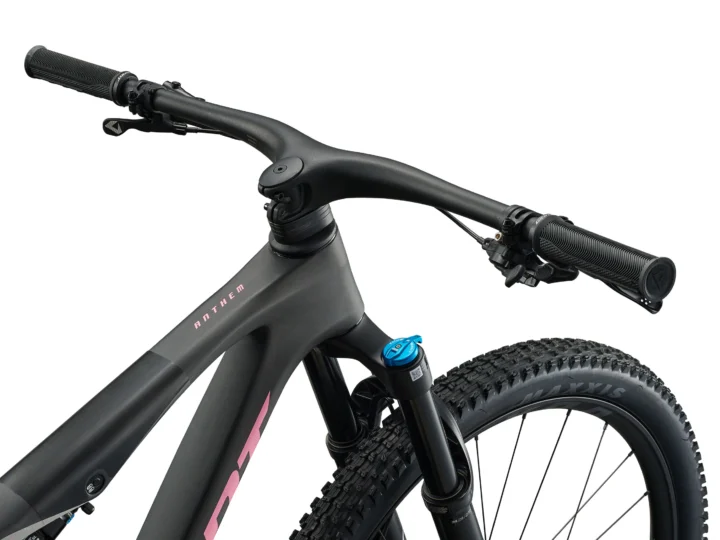

| Handlebar | Giant Integrated XC, alloy, 780mm, 9-degree upsweep |
|---|---|
| Stem | Giant Integrated XC Alloy S:50mm, M:50mm, L:60mm, XL:70mm |
| Saddle | Giant Grit Core |
| Seatpost | Giant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm |
Wheels & Tires
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt |
|---|---|
| Rims | Giant XCA WheelSystem |
| Spokes | Sapim |
| Front Tire | Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless |
| Rear Tire | Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S · Low | S · High | M · Low | M · High | L · Low | L · High | XL · Low | XL · High |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 400 mm | 400 mm | 420 mm | 420 mm | 465 mm | 465 mm | 495 mm | 495 mm |
| Top tube | 577 mm | 575 mm | 603 mm | 602 mm | 625 mm | 624 mm | 653 mm | 651 mm |
| Head tube | 90 mm | 90 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm |
| Head-tube angle | 66° | 66.5° | 66.1° | 66.5° | 66.1° | 66.6° | 66.1° | 66.6° |
| Seat-tube angle | 75° | 75.5° | 75.1° | 75.5° | 75.1° | 75.6° | 75.1° | 75.6° |
| Chainstay / rear center | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm | 437 mm | 435 mm |
| Wheelbase | 1145 mm | 1144 mm | 1172 mm | 1171 mm | 1196 mm | 1195 mm | 1225 mm | 1224 mm |
| Bottom-bracket drop | 48 mm | 42 mm | 48 mm | 42 mm | 48 mm | 42 mm | 48 mm | 42 mm |
| Reach | 415 mm | 420 mm | 440 mm | 445 mm | 460 mm | 465 mm | 485 mm | 490 mm |
| Stack | 606 mm | 602 mm | 611 mm | 607 mm | 620 mm | 616 mm | 629 mm | 625 mm |
| Standover height | 774 mm | 780 mm | 770 mm | 776 mm | 762 mm | 769 mm | 757 mm | 764 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119.5 mm | 115.7 mm | 119.3 mm | 115.6 mm | 119.2 mm | 115.5 mm | 119 mm | 115.4 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm | 60 mm | 60 mm | 70 mm | 70 mm |
| Handlebar width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
Geometry source: Giant first-party size/configuration geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
S geometry
Archive context: Its reach of 415 mm sits toward the shorter end. Its bottom-bracket drop of 48 mm sits somewhat deeper than typical. The seat angle of 75° sits somewhat more relaxed than typical.
Compared with 176 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: The head angle of 66.5° sits somewhat steeper than typical. Its wheelbase of 1144 mm sits somewhat shorter than typical. Its reach of 420 mm sits somewhat shorter than typical.
Compared with 176 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
Archive context: Its reach of 440 mm sits toward the shorter end. Its bottom-bracket drop of 48 mm sits somewhat deeper than typical. Its wheelbase of 1172 mm sits somewhat shorter than typical.
Compared with 179 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its wheelbase of 1171 mm sits somewhat shorter than typical. The head angle of 66.5° sits somewhat steeper than typical. Its stack of 607 mm sits somewhat lower than typical.
Compared with 179 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
Archive context: Its reach of 460 mm sits toward the shorter end. Its wheelbase of 1196 mm sits somewhat shorter than typical. Its bottom-bracket drop of 48 mm sits somewhat deeper than typical.
Compared with 175 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its stack of 616 mm sits somewhat lower than typical. Its reach of 465 mm sits somewhat shorter than typical. The head angle of 66.6° sits somewhat steeper than typical.
Compared with 175 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: Its reach of 485 mm sits toward the shorter end. Its wheelbase of 1225 mm sits toward the shorter end. Its stack of 629 mm sits toward the lower end.
Compared with 152 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its stack of 625 mm sits toward the lower end. Its reach of 490 mm sits toward the shorter end. Its wheelbase of 1224 mm sits toward the shorter end.
Compared with 152 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
More qualified parts (4)
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Giant Anthem X Advanced SL 3 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage · Fork: Fox 34 Rhythm, 130mm, GRIP damper, Boost 15x110, 44mm offset
Suspension
Evaluate the suspension →Archived: Fork: Fox 34 Rhythm, 130mm, GRIP damper, Boost 15x110, 44mm offset · Rear shock: Fox Float SL Performance, 210/50
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore mechanical, 1x12 · Rear derailleur: Shimano Deore · Crankset: Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm · Bottom bracket: Praxis, press fit · Cassette: Shimano M6200, 10x51 · Chain: KMC X-12
Brakes
Inspect the brakes →Archived: Brakes: TRP EVO Comp HD-M7040 hydraulic, stainless, 6-bolt rotors [F]203mm, [R]180mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant XCA WheelSystem · Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt · Front tire: Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless · Rear tire: Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless
Controls and contact points
Archived: Handlebar: Giant Integrated XC, alloy, 780mm, 9-degree upsweep · Stem: Giant Integrated XC Alloy S:50mm, M:50mm, L:60mm, XL:70mm · Seatpost: Giant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm · Saddle: Giant Grit Core
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
