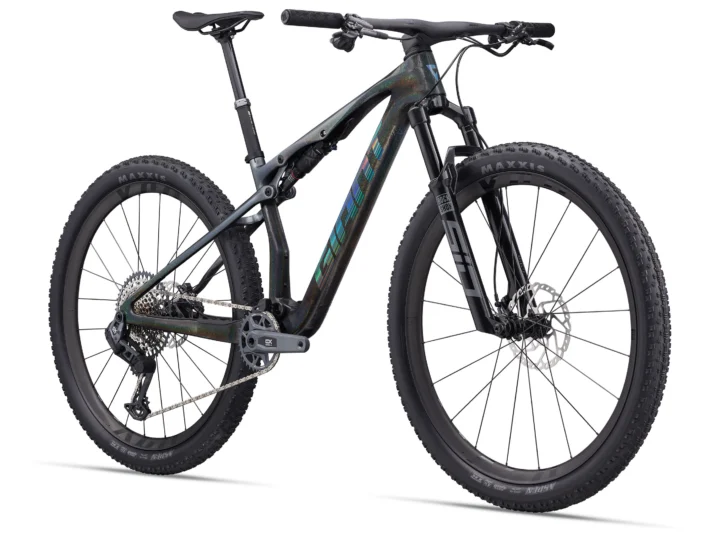

2026 Giant Anthem Advanced SL 1
Original manufacturer specifications including 29 wheels, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $8,000.00
- Sizes
- S, M, L, XL
- Colors
- Rainbow Black/Rainbow Charcoal
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900000009
Frameset
| Frame Construction | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle. Frame weight 1530 grams (size medium). |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15x110, 44mm offset, remote lockout |
| Rear Shock | RockShox SidLuxe Select+, RL damper, Solo Air, 210/50, TwistLoc Ultimate |
Drivetrain
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX AXS Transmission |
| Crankset | SRAM GX Transmission, 34t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Cassette | SRAM XS 1275, 10x52 |
| Chain | SRAM GX Transmission |
| Pedals | N/A |
Brakes
| Brakes | Shimano Deore XT BR-M8220, hydraulic, Shimano RT-66 rotors [F]180mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Integrated XC, composite, 780mm, 9-degree upsweep |
|---|---|
| Stem | Giant Integrated XC Carbon S:60mm, M:70mm, L:70mm, XL:80mm |
| Saddle | Giant Grit SL |
| Seatpost | Giant Contact Switch SL dropper, remote S: 110mm travel / 30.9 x 395mm M: 140mm travel / 30.9 x 395mm L: 140mm travel |
Wheels & Tires
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt |
|---|---|
| Rims | Giant XCR WheelSystem |
| Spokes | Carbon |
| Front Tire | Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless |
| Rear Tire | Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless |
| Wheel Size | 29 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S · LOW | HIGH | M · LOW | HIGH | L · LOW | HIGH | XL · LOW | HIGH |
|---|---|---|---|---|
| Seat tube | 400 mm | 420 mm | 465 mm | 495 mm |
| Top tube | 576 mm | 602 mm | 624 mm | 651 mm |
| Head tube | 90 mm | 95 mm | 105 mm | 115 mm |
| Head-tube angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat-tube angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Chainstay / rear center | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1141 mm | 1168 mm | 1192 mm | 1221 mm |
| Bottom-bracket drop | 51 mm | 51 mm | 52 mm | 52 mm |
| Reach | 420 mm | 445 mm | 465 mm | 490 mm |
| Stack | 602 mm | 607 mm | 616 mm | 626 mm |
| Standover height | 769 mm | 764 mm | 758 mm | 751 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 116 mm | 115.9 mm | 115.9 mm | 115.8 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 70 mm | 70 mm | 80 mm |
| Handlebar width | 780 mm | 780 mm | 780 mm | 780 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 51 mm sits toward the deeper-drop end. Its wheelbase of 1141 mm sits somewhat shorter than typical. The head angle of 66.5° sits somewhat steeper than typical.
Compared with 182 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 51 mm sits toward the deeper-drop end. Its wheelbase of 1168 mm sits somewhat shorter than typical. The head angle of 66.5° sits somewhat steeper than typical.
Compared with 183 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
LOW · HIGH
Archive context: Its stack of 616 mm sits somewhat lower than typical. Its bottom-bracket drop of 52 mm sits somewhat deeper than typical. Its reach of 465 mm sits somewhat shorter than typical.
Compared with 180 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
LOW · HIGH
Archive context: Its stack of 626 mm sits toward the lower end. Its wheelbase of 1221 mm sits toward the shorter end. Its reach of 490 mm sits toward the shorter end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
More qualified parts (4)
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Giant Anthem Advanced SL 1 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle. Frame weight 1530 grams (size medium). · Fork: RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15x110, 44mm offset, remote lockout
Suspension
Evaluate the suspension →Archived: Fork: RockShox Sid Select+ 3P, 120mm, Charger Race Day 2 damper, Boost 15x110, 44mm offset, remote lockout · Rear shock: RockShox SidLuxe Select+, RL damper, Solo Air, 210/50, TwistLoc Ultimate
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM AXS Pod, discrete clamp, 1x12 · Rear derailleur: SRAM GX AXS Transmission · Crankset: SRAM GX Transmission, 34t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm · Bottom bracket: SRAM DUB, press fit · Cassette: SRAM XS 1275, 10x52 · Chain: SRAM GX Transmission
Brakes
Inspect the brakes →Archived: Brakes: Shimano Deore XT BR-M8220, hydraulic, Shimano RT-66 rotors [F]180mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29 · Rims: Giant XCR WheelSystem · Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt · Front tire: Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless · Rear tire: Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless
Controls and contact points
Archived: Handlebar: Giant Integrated XC, composite, 780mm, 9-degree upsweep · Stem: Giant Integrated XC Carbon S:60mm, M:70mm, L:70mm, XL:80mm · Seatpost: Giant Contact Switch SL dropper, remote S: 110mm travel / 30.9 x 395mm M: 140mm travel / 30.9 x 395mm L: 140mm travel · Saddle: Giant Grit SL
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableMove, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
