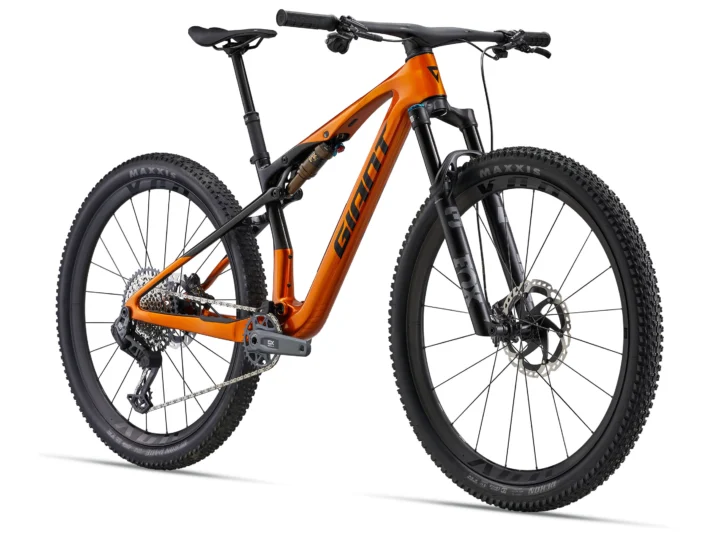

2026 Giant Anthem X Advanced SL 1

Original manufacturer specifications including geometry for 8 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2026
Category
Mountain
Original MSRP
$8,000.00
Sizes
S, M, L, XL
Colors
Solar Prominence
Geometry
8 manufacturer sizes · Geometry context
Record coverage
22 preserved details · 8 archived images · original MSRP · preserved geometry
Archive ID
900001302
Model history 2 other years
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Solar Prominence

Frameset

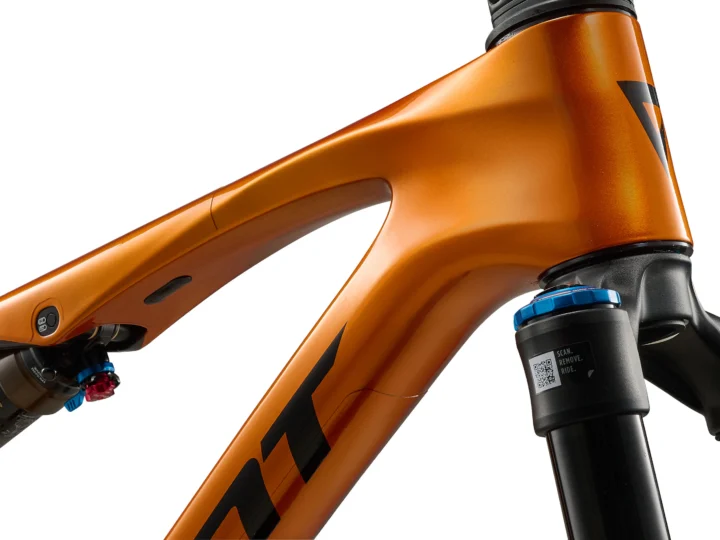

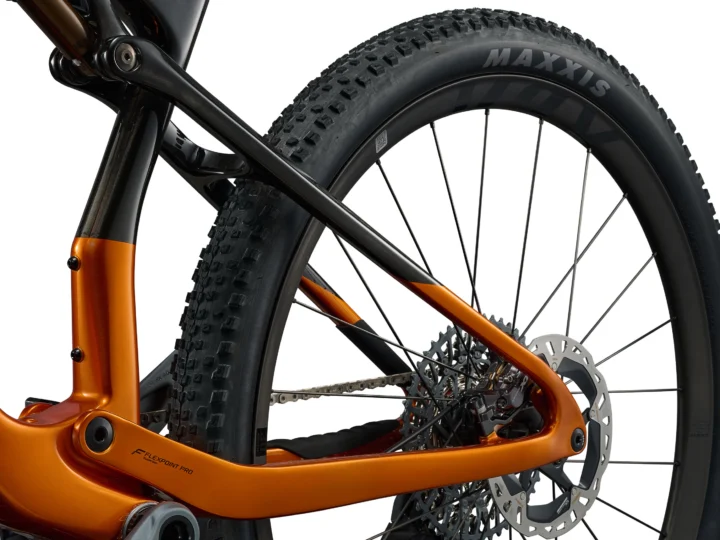

Frame ConstructionAdvanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage
Frame MaterialCarbon Fiber

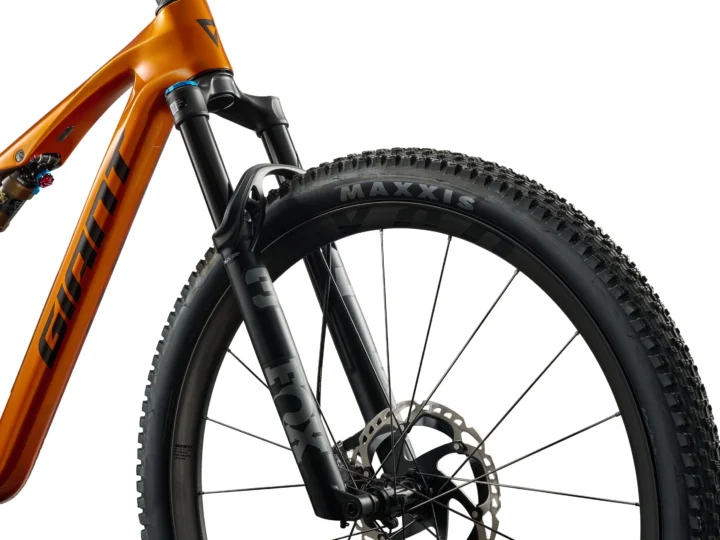

ForkFox 34 SL Performance Elite, 130mm, GRIP X damper, Boost 15x110, 44mm offset

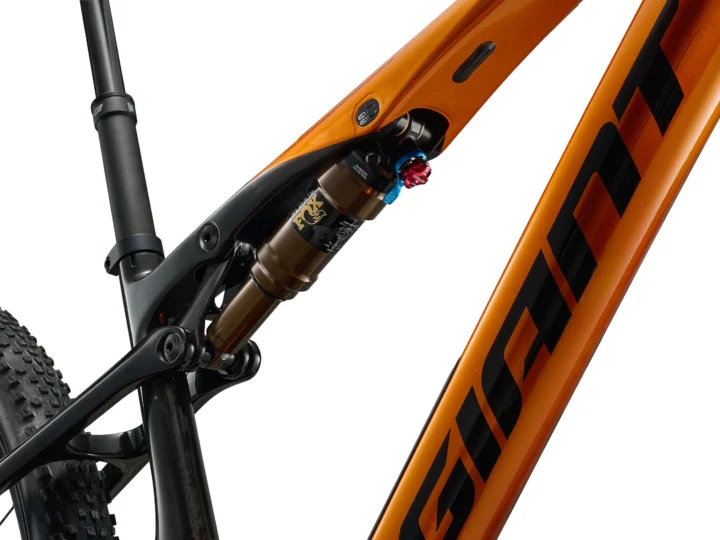

Rear ShockFox Float SL Factory, 210/50

Drivetrain

ShiftersSRAM AXS Pod, discrete clamp, 1x12
Front DerailleurN/A

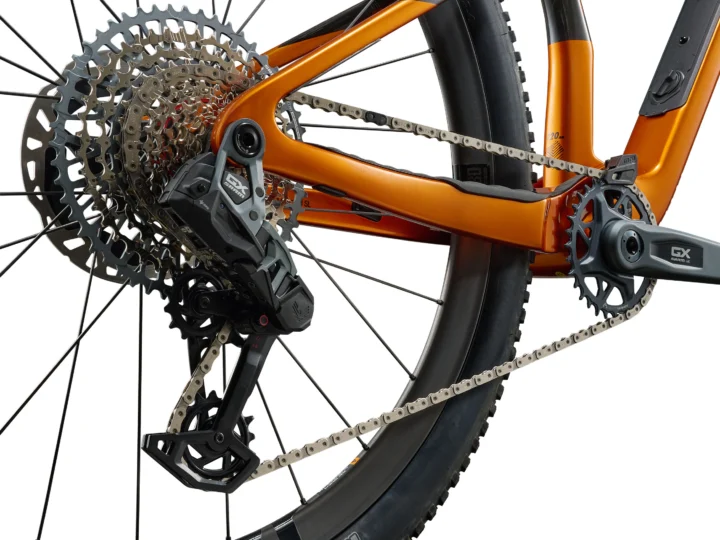

Rear DerailleurSRAM GX AXS Transmission
CranksetSRAM GX Transmission, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm
Bottom BracketSRAM DUB, press fit
CassetteSRAM XS 1275, 10x52
ChainSRAM GX Transmission
PedalsN/A

Brakes

BrakesShimano Deore XT BR-M8120, hydraulic, Shimano RT-MT905 rotors [F]203mm, [R]180mm

Cockpit & Contact Points

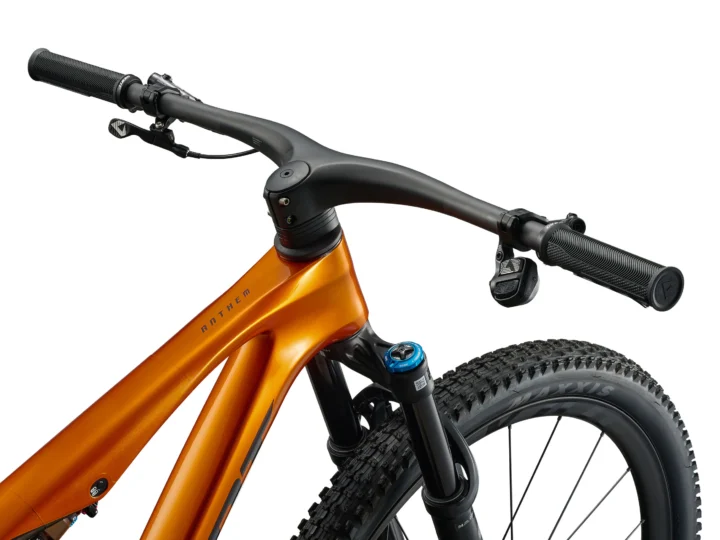

HandlebarGiant Integrated XC, composite, 780mm, 9-degree upsweep
StemGiant Integrated XC Carbon S:50mm, M:50mm, L:60mm, XL:70mm
SaddleGiant Grit SL
SeatpostGiant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm

Wheels & Tires

Hubs[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt
RimsGiant XCR WheelSystem
SpokesCarbon
Front TireMaxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless
Rear TireMaxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless

Size-specific frame data

Geometry

8 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementS · LowS · HighM · LowM · HighL · LowL · HighXL · LowXL · High
Seat tube400 mm400 mm420 mm420 mm465 mm465 mm495 mm495 mm
Top tube577 mm575 mm603 mm602 mm625 mm624 mm653 mm651 mm
Head tube90 mm90 mm95 mm95 mm105 mm105 mm115 mm115 mm
Head-tube angle66°66.5°66.1°66.5°66.1°66.6°66.1°66.6°
Seat-tube angle75°75.5°75.1°75.5°75.1°75.6°75.1°75.6°
Chainstay / rear center437 mm435 mm437 mm435 mm437 mm435 mm437 mm435 mm
Wheelbase1145 mm1144 mm1172 mm1171 mm1196 mm1195 mm1225 mm1224 mm
Bottom-bracket drop48 mm42 mm48 mm42 mm48 mm42 mm48 mm42 mm
Reach415 mm420 mm440 mm445 mm460 mm465 mm485 mm490 mm
Stack606 mm602 mm611 mm607 mm620 mm616 mm629 mm625 mm
Standover height774 mm780 mm770 mm776 mm762 mm769 mm757 mm764 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm
Trail119.5 mm115.7 mm119.3 mm115.6 mm119.2 mm115.5 mm119 mm115.4 mm
Crank length170 mm170 mm170 mm170 mm175 mm175 mm175 mm175 mm
Stem length50 mm50 mm50 mm50 mm60 mm60 mm70 mm70 mm
Handlebar width780 mm780 mm780 mm780 mm780 mm780 mm780 mm780 mm

Geometry source: Giant first-party size/configuration geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.

S geometry

Configuration

Archive context: Its reach of 415 mm sits toward the shorter end. Its bottom-bracket drop of 48 mm sits somewhat deeper than typical. The seat angle of 75° sits somewhat more relaxed than typical.

Compared with 176 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · Low geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainMatching configuration
SRAM GX Transmission Interpreted as SRAM GX · 12-speed Component family — verify exact version
CassetteQualified part search
SRAM XS 1275, 10x52 Named component · published drivetrain speed — verify exact version
Front tireMatching fit standard
Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless Named tire and published size
More qualified parts (4)
Brake padsExact archived part
Shimano Deore XT BR-M8120, hydraulic Brake model identified — verify pad shape
Bottom bracketQualified part search
SRAM DUB, press fit Named archived component — verify dimensions
CranksetExact archived part
SRAM GX Transmission, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm Component family — verify exact version
Rear derailleurMatching configuration
SRAM GX AXS Transmission Interpreted as SRAM GX · 12-speed · electronic Component family — verify exact version

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
  • DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
0 of 23 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Giant Anthem X Advanced SL 1 · Mountain · Published sizes: S, M, L, XL

Archived: Frame: Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage · Fork: Fox 34 SL Performance Elite, 130mm, GRIP X damper, Boost 15x110, 44mm offset

Archived: Fork: Fox 34 SL Performance Elite, 130mm, GRIP X damper, Boost 15x110, 44mm offset · Rear shock: Fox Float SL Factory, 210/50

Archived: Shifters: SRAM AXS Pod, discrete clamp, 1x12 · Rear derailleur: SRAM GX AXS Transmission · Crankset: SRAM GX Transmission, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm · Bottom bracket: SRAM DUB, press fit · Cassette: SRAM XS 1275, 10x52 · Chain: SRAM GX Transmission

Archived: Brakes: Shimano Deore XT BR-M8120, hydraulic, Shimano RT-MT905 rotors [F]203mm, [R]180mm

Archived: Rims: Giant XCR WheelSystem · Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt · Front tire: Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless · Rear tire: Maxxis Rekon Race 29x2.4, foldable, 120tpi, EXO, tubeless

Controls and contact points

Archived: Handlebar: Giant Integrated XC, composite, 780mm, 9-degree upsweep · Stem: Giant Integrated XC Carbon S:50mm, M:50mm, L:60mm, XL:70mm · Seatpost: Giant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm · Saddle: Giant Grit SL

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
