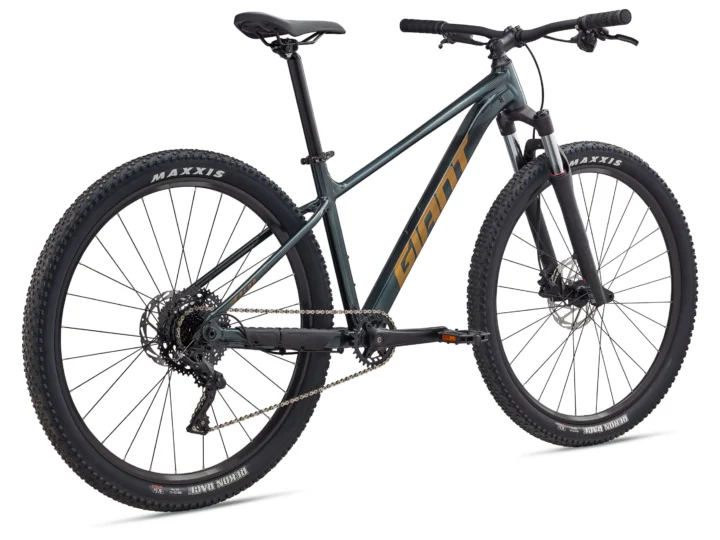

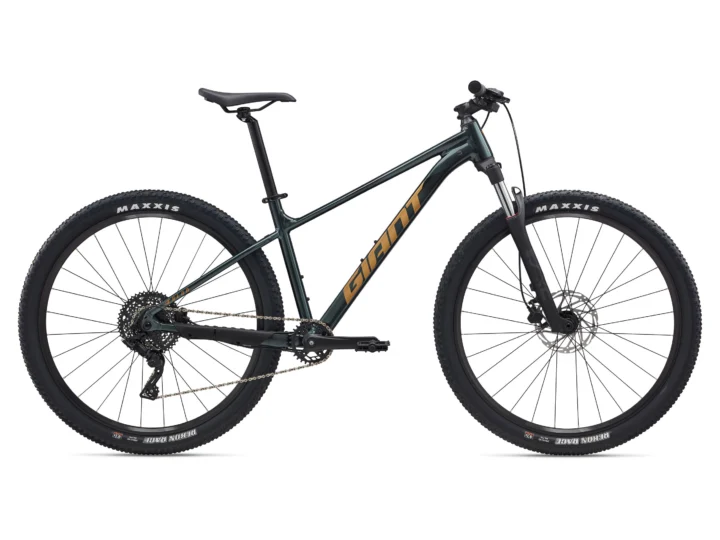

2025 Giant Talon 2
Original manufacturer specifications including 13.95 kg (31 lbs 01 oz) - Size (M) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $800.00
- Sizes
- 27.5: XS, S, 29: S, M, L, XL, XXL
- Colors
- Asphalt Green, Pure Red
- Weight
- 13.95 kg (31 lbs 01 oz) - Size (M)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 24 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001269
Model history 7 other years
Frameset

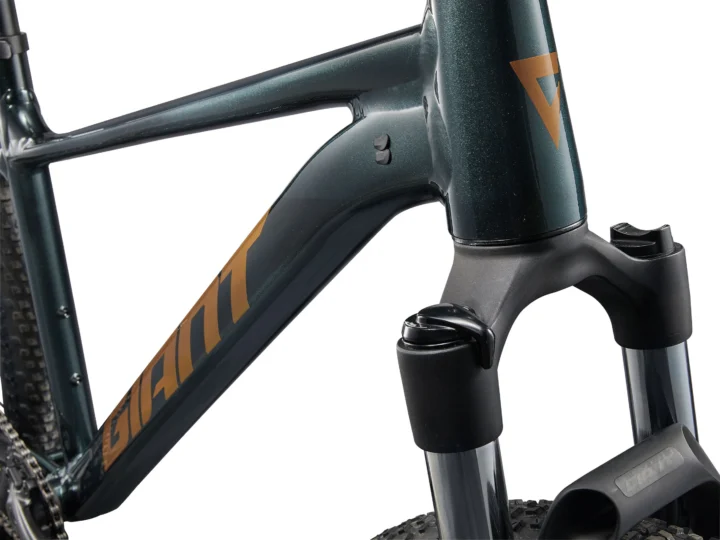

| Frame Construction | ALUXX-grade aluminum, disc |
|---|---|
| Frame Material | Aluminum |

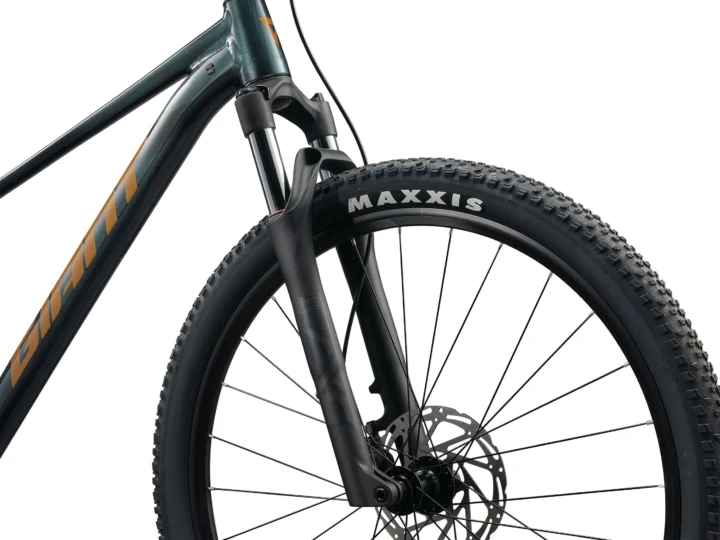

| Fork | SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29) |
| Fork Material | Steel |
| Rear Shock | N/A |

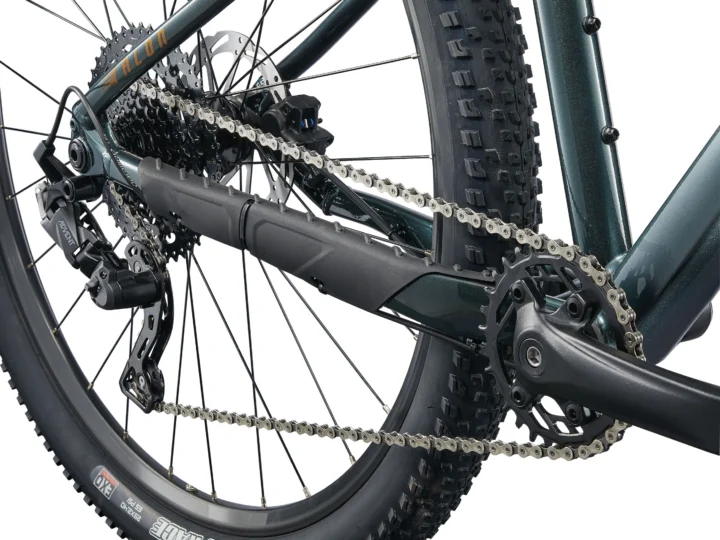

Drivetrain
| Shifters | microSHIFT Advent, 1x9 |
|---|---|
| Front Derailleur | N/A |

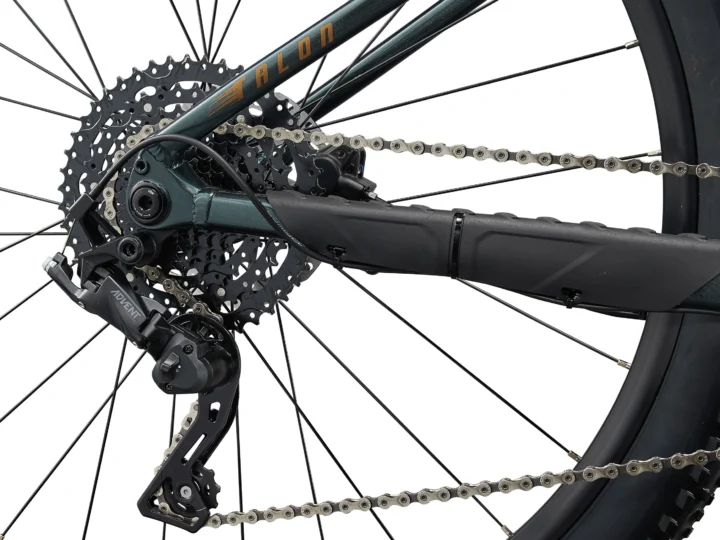

| Rear Derailleur | microSHIFT Advent, clutch |
| Crankset | ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) |
| Bottom Bracket | cartridge |
| Cassette | microSHIFT, 11x46 |
| Chain | KMC X-9 |
| Pedals | MTB caged |
Brakes

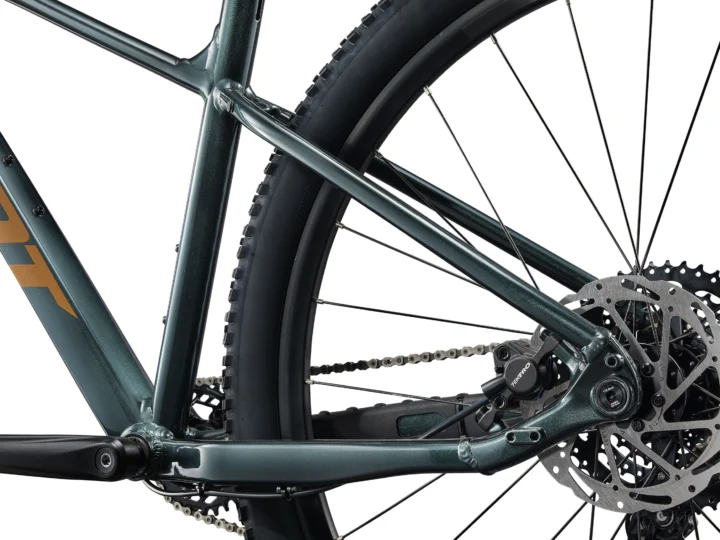

| Brakes | Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
|---|
Cockpit & Contact Points

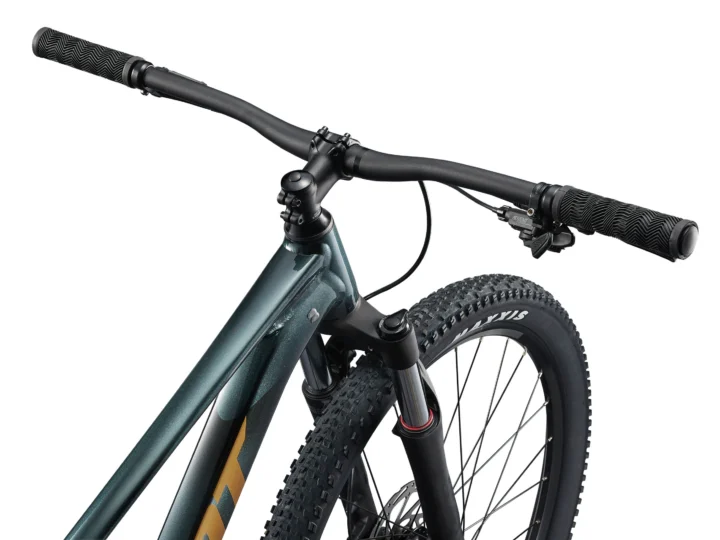

| Handlebar | Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29) |
|---|---|
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29) |
| Saddle | Giant ErgoContact Trail |
| Seatpost | Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29) L: 375mm (29) XL: 420mm (29) XXL: 420mm (29) |
Wheels & Tires
| Hubs | [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive |
|---|---|
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Spokes | stainless, 14g |
| Front Tire | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |
| Rear Tire | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (29") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|
| Seat tube | 345 mm | 380 mm | 420 mm | 450 mm | 480 mm |
| Top tube | 542 mm | 581 mm | 604 mm | 629 mm | 653 mm |
| Head tube | 90 mm | 95 mm | 105 mm | 125 mm | 140 mm |
| Head-tube angle | 67° | 67.5° | 67.5° | 67.5° | 67.5° |
| Seat-tube angle | 74° | 74.5° | 74.5° | 74.5° | 74.5° |
| Chainstay / rear center | 440 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1084 mm | 1139 mm | 1164 mm | 1191 mm | 1217 mm |
| Bottom-bracket drop | 45 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Reach | 385 mm | 415 mm | 436 mm | 456 mm | 476 mm |
| Stack | 548 mm | 597 mm | 606 mm | 625 mm | 639 mm |
| Standover height | 684 mm | 715 mm | 709 mm | 709 mm | 710 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105.2 mm | 108.9 mm | 108.9 mm | 108.9 mm | 108.9 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 175 mm |
| Stem length | 40 mm | 50 mm | 60 mm | 70 mm | 80 mm |
| Handlebar width | 690 mm | 690 mm | 690 mm | 690 mm | 690 mm |
| Wheel size | 27.5" | 29" | 29" | 29" | 29" |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 548 mm sits toward the lower end. Its wheelbase of 1084 mm sits toward the shorter end. Its reach of 385 mm sits toward the shorter end.
Compared with 57 distinct mountain geometries in the XS-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. The head angle of 67.5° sits toward the steeper end. Its bottom-bracket drop of 55 mm sits toward the deeper-drop end.
Compared with 186 distinct mountain geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 436 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 192 distinct mountain geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 456 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 185 distinct mountain geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry XL (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 476 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 164 distinct mountain geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL (29") geometry Parts & serviceability
Find replacement parts
KMC X-9
Exact archived model
microSHIFT, 11x46
Named component · published drivetrain speed — verify exact version
microSHIFT Advent, clutch
Interpreted as microSHIFT ADVENT · 9-speed Named component · published drivetrain speed — verify exact version
More qualified parts (1)
microSHIFT Advent, 1x9
Interpreted as microSHIFT ADVENT · 9-speed Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Giant Talon 2 · Mountain · Published sizes: 27.5: XS, S, 29: S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, disc · Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29) · Steel
Suspension
Evaluate the suspension →Archived: Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT Advent, 1x9 · Rear derailleur: microSHIFT Advent, clutch · Crankset: ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) · Bottom bracket: cartridge · Cassette: microSHIFT, 11x46 · Chain: KMC X-9
Brakes
Inspect the brakes →Archived: Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width · Hubs: [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive · Front tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead · Rear tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29) · Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29) · Seatpost: Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29) L: 375mm (29) XL: 420mm (29) XXL: 420mm (29) · Saddle: Giant ErgoContact Trail · Pedals: MTB caged
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
