Velopedia Bicycle Archive

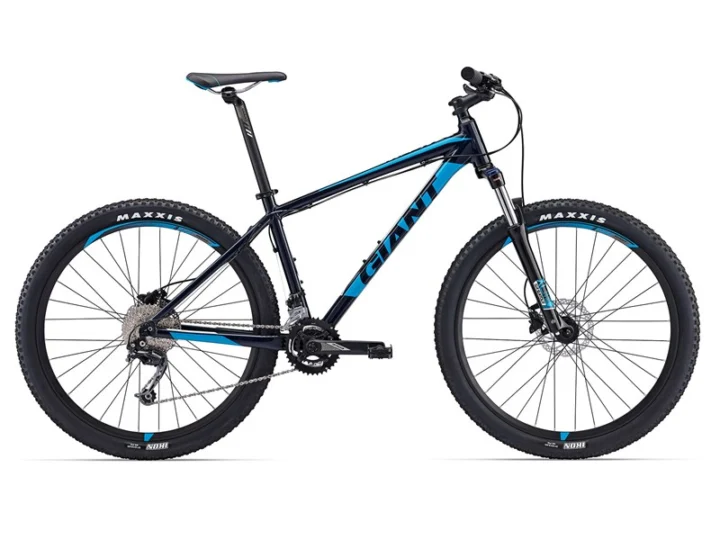

2017 Giant Talon 2
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2017
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Blue, Red
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · archived image · preserved geometry
- Archive ID
- 900002051
Model history 7 other years
Frameset
| Frame Construction | ALUXX-grade aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCM w/ hydraulic lockout & preload adjuster, 100mm travel |
| Rear Shock | N/A |
Drivetrain
| Shifters | Shimano Alivo |
|---|---|
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano Deore |
| Crankset | FSA Comet, 24/38 |
| Bottom Bracket | Sealed Cartridge, Threaded |
| Cassette | Shimano HG400 12x36, 9-speed |
| Chain | KMC X9 |
| Pedals | MTB Caged |
Brakes
| Brakes | Shimano M315, hydraulic disc, 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm |
|---|---|
| Stem | Giant Sport |
| Saddle | Giant Connect Upright |
| Seatpost | Giant Sport, 30.9mm |
Wheels & Tires
| Hubs | Alloy, 32h |
|---|---|
| Rims | Giant Alloy, Double wall |
| Spokes | Stainless Steel, 14g |
| Front Tire | Maxxis Ikon, 27.5x2.2, Wire |
| Rear Tire | Maxxis Ikon, 27.5x2.2, Wire |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 350 mm | 390 mm | 430 mm | 480 mm | 530 mm |
| Top tube | 545 mm | 570 mm | 595 mm | 615 mm | 640 mm |
| Head tube | 100 mm | 105 mm | 115 mm | 130 mm | 145 mm |
| Head-tube angle | 68° | 68° | 68° | 68° | 68° |
| Seat-tube angle | 73.5° | 73.5° | 73° | 73° | 72.5° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1072 mm | 1098 mm | 1118 mm | 1139 mm | 1160 mm |
| Bottom-bracket drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Reach | 374 mm | 397 mm | 414 mm | 430 mm | 445 mm |
| Stack | 578 mm | 583 mm | 592 mm | 606 mm | 620 mm |
| Standover height | 679 mm | 704 mm | 732 mm | 769 mm | 806 mm |
| Fork offset / rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm | 100 mm | 110 mm |
| Handlebar width | 690 mm | 690 mm | 690 mm | 690 mm | 690 mm |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its reach of 374 mm sits toward the shorter end. The seat angle of 73.5° sits somewhat more relaxed than typical. The head angle of 68° sits somewhat steeper than typical.
Compared with 11 distinct mountain geometries in the XS-equivalent size cohort from model years 2017–2021 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 583 mm sits toward the lower end. Its reach of 397 mm sits toward the shorter end. Its wheelbase of 1098 mm sits toward the shorter end.
Compared with 44 distinct mountain geometries in the Small-equivalent size cohort from model years 2016–2021 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 592 mm sits toward the lower end. Its reach of 414 mm sits toward the shorter end. Its wheelbase of 1118 mm sits toward the shorter end.
Compared with 45 distinct mountain geometries in the Medium-equivalent size cohort from model years 2016–2021 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 430 mm sits toward the shorter end. Its wheelbase of 1139 mm sits toward the shorter end. The seat angle of 73° sits toward the more relaxed end.
Compared with 46 distinct mountain geometries in the Large-equivalent size cohort from model years 2016–2021 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 445 mm sits toward the shorter end. The seat angle of 72.5° sits toward the more relaxed end. Its wheelbase of 1160 mm sits toward the shorter end.
Compared with 41 distinct mountain geometries in the XL-equivalent size cohort from model years 2016–2021 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X9
Exact archived model
Shimano HG400 12x36, 9-speed
Exact archived model
Maxxis Ikon, 27.5x2.2, Wire
Named tire and published size
More qualified parts (4)
FSA Comet, 24/38
Named archived component — verify exact version
Shimano Deore
Interpreted as Shimano Deore · 9-speed Named component · published drivetrain speed — verify exact version
Shimano Deore
Interpreted as Shimano Deore · 9-speed Named component · published drivetrain speed — verify exact version
30.9 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 9-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2017 Giant Talon 2 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum · Fork: SR Suntour XCM w/ hydraulic lockout & preload adjuster, 100mm travel
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCM w/ hydraulic lockout & preload adjuster, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Alivo · Front derailleur: Shimano Deore · Rear derailleur: Shimano Deore · Crankset: FSA Comet, 24/38 · Bottom bracket: Sealed Cartridge, Threaded · Cassette: Shimano HG400 12x36, 9-speed · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: Shimano M315, hydraulic disc, 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant Alloy, Double wall · Hubs: Alloy, 32h · Front tire: Maxxis Ikon, 27.5x2.2, Wire · Rear tire: Maxxis Ikon, 27.5x2.2, Wire
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm · Stem: Giant Sport · Seatpost: Giant Sport, 30.9mm · Saddle: Giant Connect Upright · Pedals: MTB Caged
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
