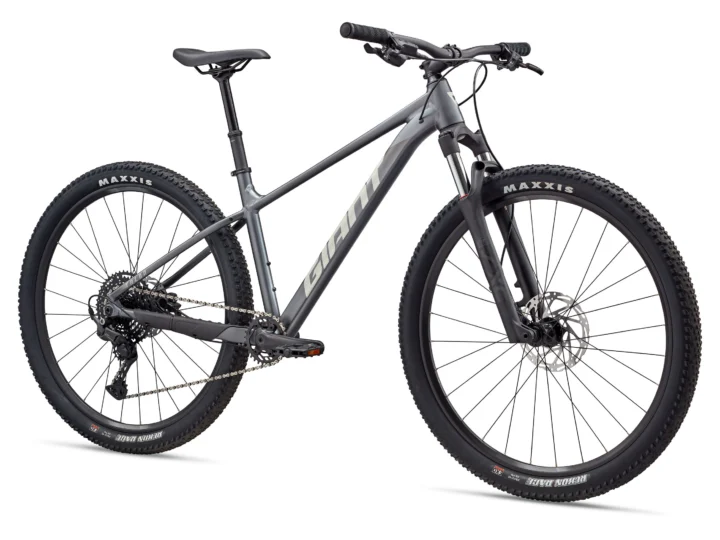

2025 Giant Talon 1

Original specifications: 14.59 kg (32 lbs 03 oz) - Size (L) published weight · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001270
Model year
2025
Category
Mountain
Original MSRP
$1,000.00
Sizes
27.5: XS, S, 29: S, M, L, XL, XXL
Colors
Metallic Blue, Charcoal
Weight
14.59 kg (32 lbs 03 oz) - Size (L)
Geometry
5 manufacturer sizes
In this record
21 specifications · 8 archived images · original MSRP · geometry
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2025 archived details

Published colors
Metallic Blue, Charcoal
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum

Manufacturer catalog

Published sizes and colors

7 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

27.5: XSS29: SMLXLXXL

Published colors

Metallic BlueCharcoal

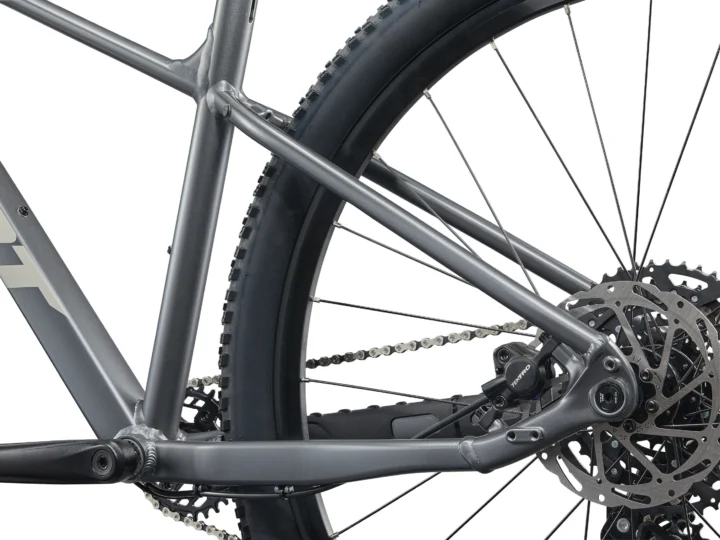

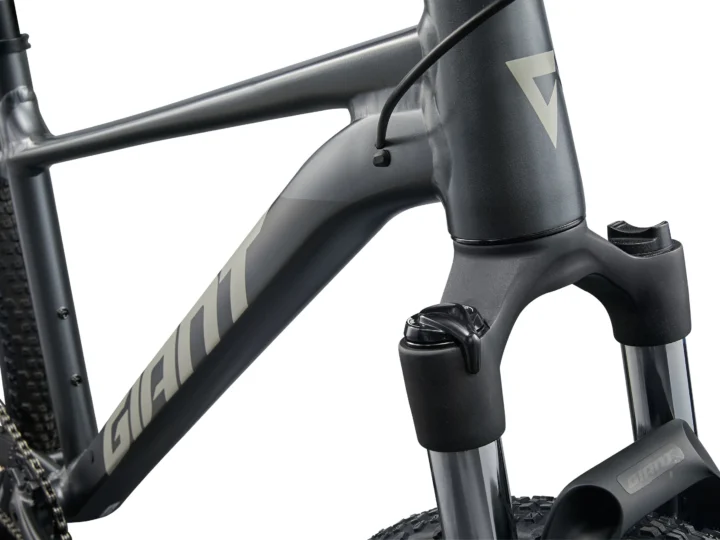

Frameset

Frame ConstructionALUXX-grade aluminum, disc
Frame MaterialAluminum

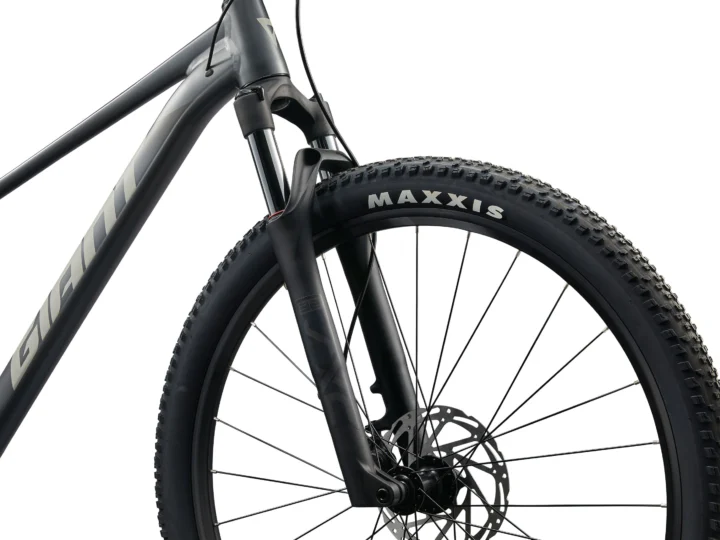

ForkSXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Fork MaterialSteel

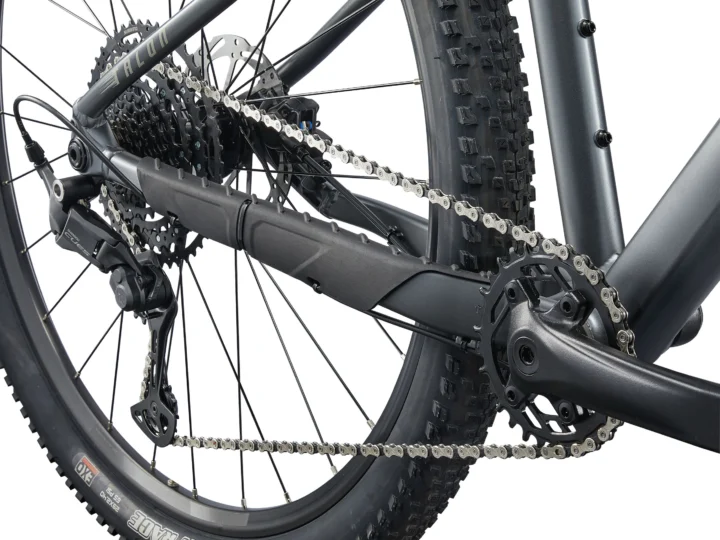

Drivetrain

ShiftersShimano CUES SL-6000, 1x10
Rear DerailleurShimano CUES RD-U6000, clutch
CranksetProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
Bottom Bracketcartridge
CassetteShimano CUES, CS-LG300, 11x48
ChainKMC X-11
PedalsMTB caged

Brakes

BrakesTektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

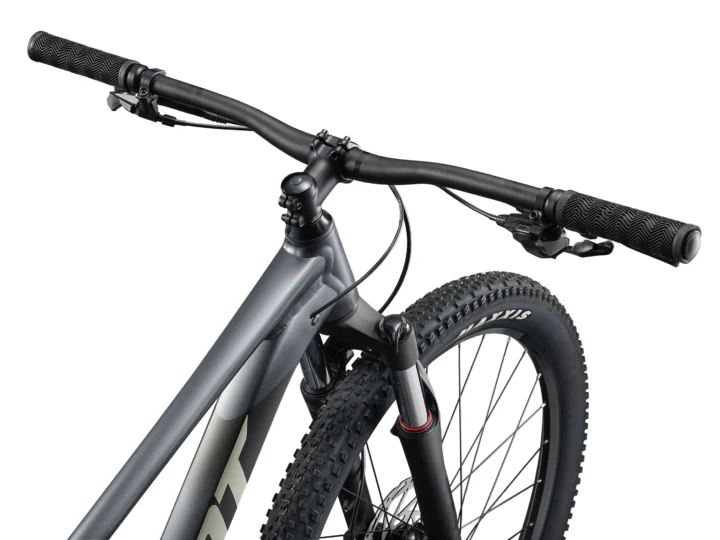

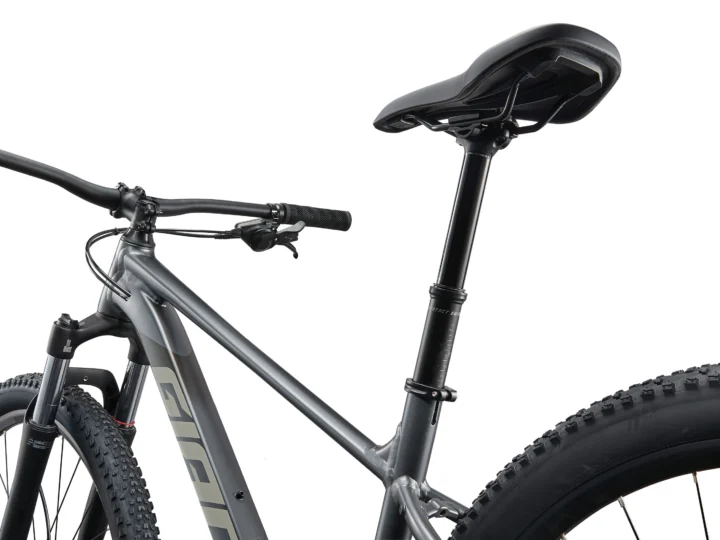

Cockpit & Contact Points

HandlebarGiant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
StemGiant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
SaddleGiant ErgoContact Trail
SeatpostGiant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)

Wheels & Tires

Hubs[F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive
RimsGiant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Spokesstainless, 14g
Front TireMaxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Rear TireMaxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead

Geometry

5 sizes · 17 measurements

Frame measurements by size.

All geometry measurements5 sizes · 17 measurements
MeasurementXS (27.5")S (29")M (29")L (29")XL (29")
Seat tube345 mm380 mm420 mm450 mm480 mm
Top tube542 mm581 mm604 mm629 mm653 mm
Head tube90 mm95 mm105 mm125 mm140 mm
Head-tube angle67°67.5°67.5°67.5°67.5°
Seat-tube angle74°74.5°74.5°74.5°74.5°
Chainstay / rear center440 mm455 mm455 mm455 mm455 mm
Wheelbase1084 mm1139 mm1164 mm1191 mm1217 mm
Bottom-bracket drop45 mm55 mm55 mm55 mm55 mm
Reach385 mm415 mm436 mm456 mm476 mm
Stack548 mm597 mm606 mm625 mm639 mm
Standover height684 mm715 mm709 mm709 mm710 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm
Trail105.2 mm108.9 mm108.9 mm108.9 mm108.9 mm
Crank length170 mm170 mm170 mm170 mm175 mm
Stem length40 mm50 mm60 mm70 mm80 mm
Handlebar width690 mm690 mm690 mm690 mm690 mm
Wheel size27.5"29"29"29"29"

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

XS (27.5")32T · 11–48T
Lowest0.67:1 Highest2.91:1 Total range436%
S (29"), M (29"), L (29"), XL (29")30T · 11–48T
Lowest0.63:1 Highest2.73:1 Total range436%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
Shimano CUES

CS-LG300, 11x48

Rear derailleur · Original
Shimano CUES RD-U6000

clutch

Shifters · Original
Shimano CUES SL-6000

1x10

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Rear tire
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Bottom bracket / shell
cartridge
Sponsored affiliate link
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX-grade aluminum, disc · Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29) · Steel

Archived: Fork: SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)

Archived: Shifters: Shimano CUES SL-6000, 1x10 · Rear derailleur: Shimano CUES RD-U6000, clutch · Crankset: ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) · Bottom bracket: cartridge · Cassette: Shimano CUES, CS-LG300, 11x48 · Chain: KMC X-11

Archived: Brakes: Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

Archived: Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width · Hubs: [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive · Front tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead · Rear tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead

Controls and contact points

Archived: Handlebar: Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29) · Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29) · Seatpost: Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29) · Saddle: Giant ErgoContact Trail · Pedals: MTB caged
