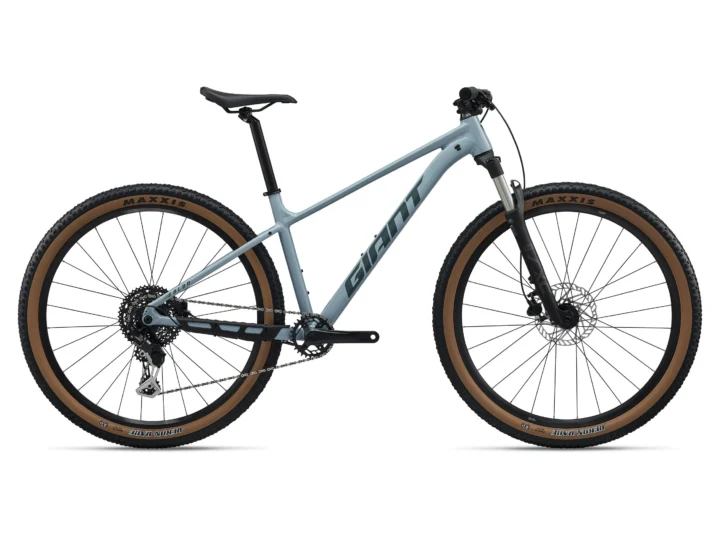

2027 Giant Talon 1
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $1,000.00
- Sizes
- XS, S, M, L, XL, XXL
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · archived image · original MSRP · preserved geometry
- Archive ID
- 900001275
Model history 3 other years
Frameset
| Frame Construction | ALUXX-Grade Butted Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | GIANT SXC32-2 RCL Alloy SingleAir 29""/27.5"" 15x110 TA 80mm(27.5") Spring: Air 80mm(27.5")/100mm(29") Spring: Air | M, L, XL, XXL: 100mm(29") Spring: Air |
| Fork Material | Aluminum |
Drivetrain
| Shifters | microSHIFT Advent, 1x11 |
|---|---|
| Rear Derailleur | microSHIFT Advent, clutch |
| Crankset | ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) |
| Bottom Bracket | cartridge |
| Cassette | microSHIFT Advent MX, 11x50 |
| Chain | KMC X11 |
| Pedals | MTB caged |
Brakes
| Brakes | Tektro HD M3121, hydraulic, Tektro rotors [F]180mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 780mm x 31.8mm,GA 690mm XS: 690mm(27,5") S: 690mm(27,5") /750mm(29") M, L, XL, XXL: 780mm(29") |
|---|---|
| Stem | Giant Sport, 7 Degree XS: 40(27.5") S: 50(27.5"/29") M: 60(27.5"/29") L: 70(27.5"/29") XL: 80(29") XXL: 90(29") |
| Saddle | Giant ErgoContact Trail |
| Seatpost | Giant Sport, 30.9, SP217 |
Wheels & Tires
| Hubs | [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive |
|---|---|
| Rims | Giant tubeless compatible 29 or 27.5, alloy, double wall, 21mm inner width |
| Spokes | Stainless 14G |
| Front Tire | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |
| Rear Tire | Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (29") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|
| Seat tube | 345 mm | 380 mm | 420 mm | 450 mm | 480 mm |
| Top tube | 542 mm | 581 mm | 604 mm | 629 mm | 653 mm |
| Head tube | 90 mm | 95 mm | 105 mm | 125 mm | 140 mm |
| Head-tube angle | 67° | 67.5° | 67.5° | 67.5° | 67.5° |
| Seat-tube angle | 74° | 74.5° | 74.5° | 74.5° | 74.5° |
| Chainstay / rear center | 440 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1084 mm | 1140 mm | 1164 mm | 1191 mm | 1216 mm |
| Bottom-bracket drop | 45 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Reach | 385 mm | 415 mm | 435 mm | 455 mm | 475 mm |
| Stack | 548 mm | 597 mm | 606 mm | 625 mm | 638 mm |
| Standover height | 684 mm | 715 mm | 708 mm | 708 mm | 710 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm | 175 mm |
| Stem length | 40 mm | 40 mm | 50 mm | 60 mm | 60 mm |
| Handlebar width | 760 mm | 760 mm | 760 mm | 760 mm | 760 mm |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 548 mm sits toward the lower end. The seat angle of 74° sits toward the more relaxed end. Its wheelbase of 1084 mm sits toward the shorter end.
Compared with 53 distinct mountain geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. The head angle of 67.5° sits toward the steeper end. Its bottom-bracket drop of 55 mm sits toward the deeper-drop end.
Compared with 164 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 435 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 168 distinct mountain geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 455 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 164 distinct mountain geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry XL (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 475 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 142 distinct mountain geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL (29") geometry Parts & serviceability
Find replacement parts
KMC X11
Exact archived model
microSHIFT Advent MX, 11x50
Interpreted as microSHIFT ADVENT · 11-speed Named component · published drivetrain speed — verify exact version
microSHIFT Advent, clutch
Interpreted as microSHIFT ADVENT · 11-speed Named component · published drivetrain speed — verify exact version
More qualified parts (1)
microSHIFT Advent, 1x11
Interpreted as microSHIFT ADVENT · 11-speed Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Giant Talon 1 · Mountain · Published sizes: XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-Grade Butted Aluminum · Fork: GIANT SXC32-2 RCL Alloy SingleAir 29""/27.5"" 15x110 TA 80mm(27.5") Spring: Air 80mm(27.5")/100mm(29") Spring: Air | M, L, XL, XXL: 100mm(29") Spring: Air · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT Advent, 1x11 · Rear derailleur: microSHIFT Advent, clutch · Crankset: ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) · Bottom bracket: cartridge · Cassette: microSHIFT Advent MX, 11x50 · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Tektro HD M3121, hydraulic, Tektro rotors [F]180mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant tubeless compatible 29 or 27.5, alloy, double wall, 21mm inner width · Hubs: [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive · Front tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead · Rear tire: Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 780mm x 31.8mm,GA 690mm XS: 690mm(27,5") S: 690mm(27,5") /750mm(29") M, L, XL, XXL: 780mm(29") · Stem: Giant Sport, 7 Degree XS: 40(27.5") S: 50(27.5"/29") M: 60(27.5"/29") L: 70(27.5"/29") XL: 80(29") XXL: 90(29") · Seatpost: Giant Sport, 30.9, SP217 · Saddle: Giant ErgoContact Trail · Pedals: MTB caged
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
