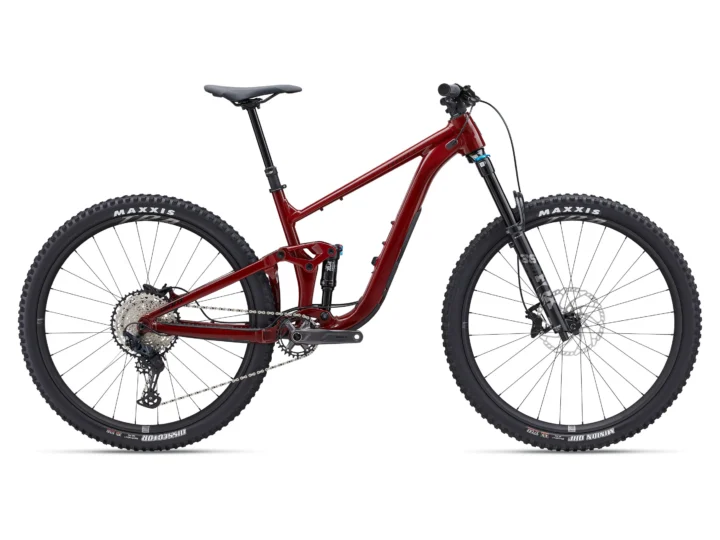

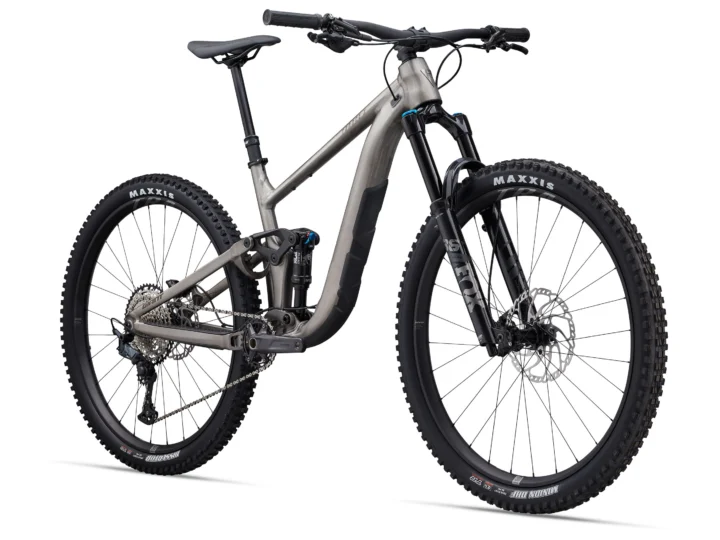

2024 Giant Trance X 1

Original specifications: 14.9kg (32lbs 13oz) - Size (M) published weight · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002163
Model year
2024
Category
Mountain
Original MSRP
$3,900.00
Sizes
S, M, L, XL
Colors
Smoke Metal/Chrome
Weight
14.9kg (32lbs 13oz) - Size (M)
Geometry
4 manufacturer sizes
In this record
20 specifications · 8 archived images · original MSRP · geometry
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2024 archived details

Published colors
Smoke Metal/Chrome
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Smoke Metal/Chrome

Frameset

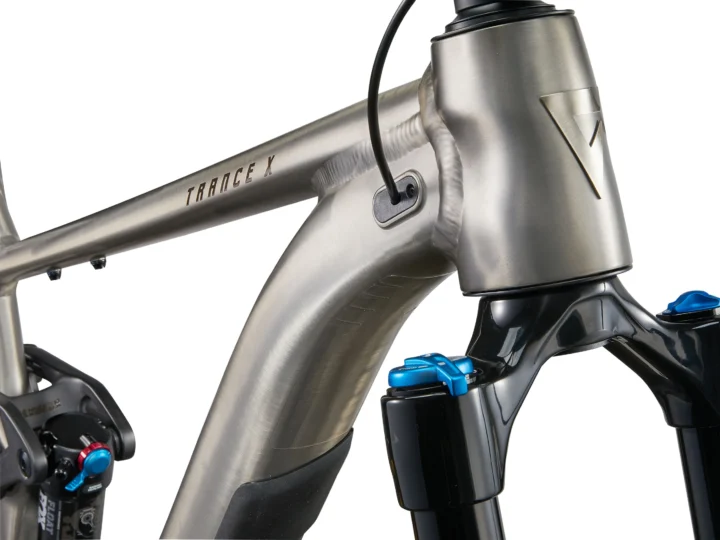

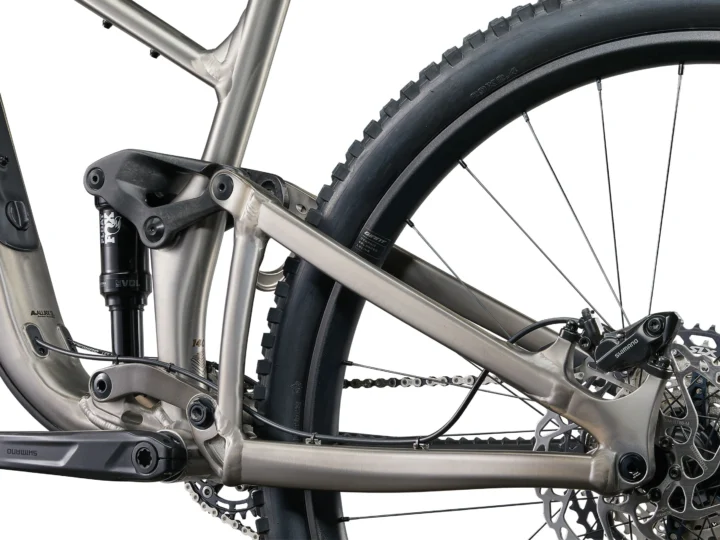

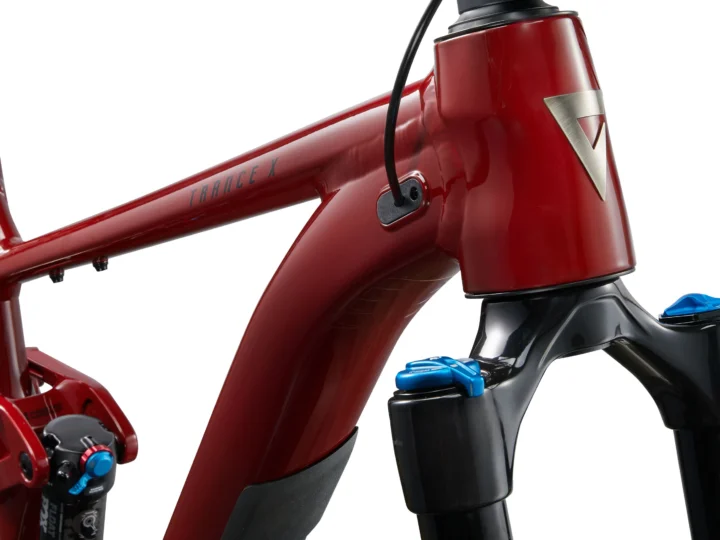

Frame ConstructionALUXX SL-Grade Aluminum front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
Frame MaterialAluminum
ForkFox 36 Float Performance, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset
Rear ShockFox Float Performance, 185/52.5, custom tuned for Giant

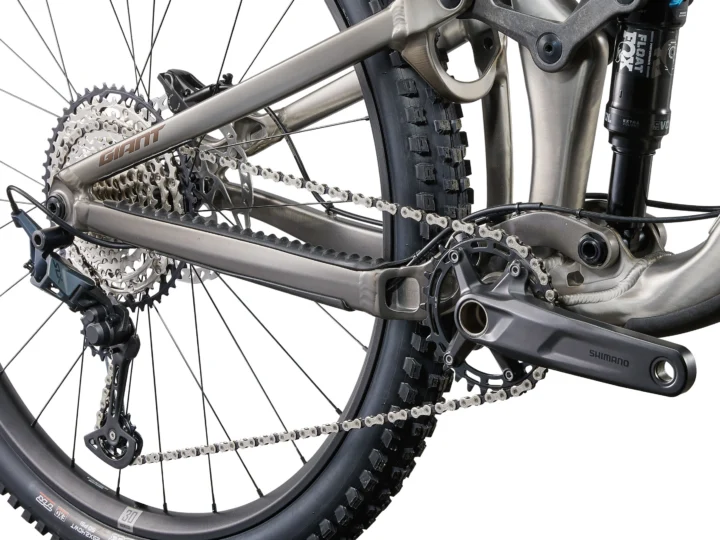

Drivetrain

ShiftersShimano SLX M-7100, I-Spec EV, 1x12
Rear DerailleurShimano SLX M-7100, Shadow +
CranksetShimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom BracketShimano Press Fit
CassetteShimano SLX M7100, 10x51
ChainKMC X-12

Brakes

BrakesShimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Cockpit & Contact Points

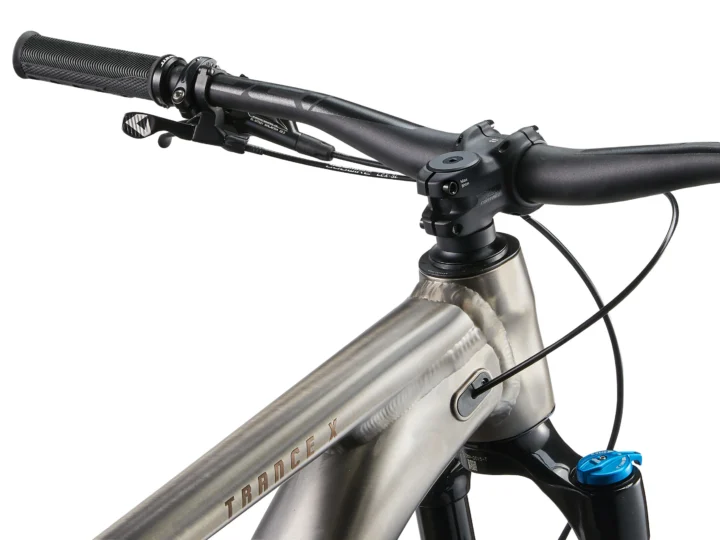

HandlebarGiant Contact TR35, alloy, 780x35mm, 20mm rise
StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
SaddleGiant Romero SL
SeatpostContact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

Wheels & Tires

Hubs[F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt
RimsGiant TRA, 29" hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body
SpokesSapim, 28, straight pull, DBL Technology
Front TireMaxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR
Rear TireMaxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless

Geometry

4 sizes · 17 measurements

Frame measurements by size.

All geometry measurements12 size / setup combinations · 17 measurements
MeasurementS · LowS · MidS · HighM · LowM · MidM · HighL · LowL · MidL · HighXL · LowXL · MidXL · High
Seat tube400 mm400 mm400 mm425 mm425 mm425 mm450 mm450 mm450 mm475 mm475 mm475 mm
Top tube571 mm570 mm569 mm602 mm601 mm600 mm624 mm623 mm622 mm657 mm656 mm655 mm
Head tube100 mm100 mm100 mm105 mm105 mm105 mm115 mm115 mm115 mm125 mm125 mm125 mm
Head-tube angle64.4°64.8°65.1°64.4°64.8°65.1°64.4°64.8°65.1°64.4°64.8°65.1°
Seat-tube angle76.8°77.2°77.5°76.8°77.2°77.5°76.8°77.2°77.5°76.8°77.2°77.5°
Chainstay / rear center440 mm439 mm438 mm440 mm439 mm438 mm440 mm439 mm438 mm440 mm439 mm438 mm
Wheelbase1190 mm1190 mm1189 mm1222 mm1222 mm1221 mm1246 mm1246 mm1245 mm1281 mm1280 mm1280 mm
Bottom-bracket drop40 mm35 mm30 mm40 mm35 mm30 mm40 mm35 mm30 mm40 mm35 mm30 mm
Reach426 mm430 mm434 mm456 mm460 mm464 mm476 mm480 mm484 mm507 mm510 mm514 mm
Stack617 mm614 mm611 mm621 mm619 mm616 mm631 mm628 mm625 mm640 mm637 mm634 mm
Standover height732 mm737 mm742 mm746 mm750 mm755 mm763 mm768 mm773 mm781 mm785 mm790 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm
Trail134.1 mm131.3 mm128.4 mm134 mm131.3 mm128.5 mm133.9 mm131.3 mm128.5 mm133.9 mm131.3 mm128.6 mm
Crank length165 mm165 mm165 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm
Stem length40 mm40 mm40 mm40 mm40 mm40 mm50 mm50 mm50 mm50 mm50 mm50 mm
Handlebar width800 mm800 mm800 mm800 mm800 mm800 mm800 mm800 mm800 mm800 mm800 mm800 mm
Wheel size[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes30T · 10–51T
Lowest0.59:1 Highest3.00:1 Total range510%
Estimated speed At 90 RPM Lowest gear4.6 mph Highest gear23.5 mph

Rear tire: 29×2.4.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
Shimano SLX M7100

10x51

Retailer offers
Rear tire · Original
Maxxis Dissector 29x2.4 WT

60 tpi, EXO TR, tubeless

Retailer offers

Maxxis Minion DHR II Wide Trail Dual Compound EXO/TR 29in Tire Dark Tan Wall, Dual Compound/EXO/TR, 29x2.4

Replacement option

Chain · Original
KMC X-12
More parts (5)Fewer parts
Front tire · Original
Maxxis Minion DHF

29x2.5 WT, 60 tpi, EXO, TR

Brake pads · Original
Shimano BR-MT520

hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Crankset · Original
Shimano MT512-1, 30t, 55mm chainline
165 mm Frame sizes S
170 mm Frame sizes M / L / XL
Rear derailleur · Original
Shimano SLX M-7100

Shadow +

Shifters · Original
Shimano SLX M-7100

I-Spec EV, 1x12

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Rear tire
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Bottom bracket / shell
Shimano Press Fit
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 14 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX SL-Grade Aluminum front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts · Fork: Fox 36 Float Performance, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset

Archived: Fork: Fox 36 Float Performance, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset · Rear shock: Fox Float Performance, 185/52.5, custom tuned for Giant

Archived: Shifters: Shimano SLX M-7100, I-Spec EV, 1x12 · Rear derailleur: Shimano SLX M-7100, Shadow + · Crankset: Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm · Bottom bracket: Shimano Press Fit · Cassette: Shimano SLX M7100, 10x51 · Chain: KMC X-12

Archived: Brakes: Shimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Archived: Rims: Giant TRA, 29" hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body · Hubs: [F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt · Front tire: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless · Rear tire: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless

Controls and contact points

Archived: Handlebar: Giant Contact TR35, alloy, 780x35mm, 20mm rise · Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm · Seatpost: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm · Saddle: Giant Romero SL
