Velopedia Bicycle Archive

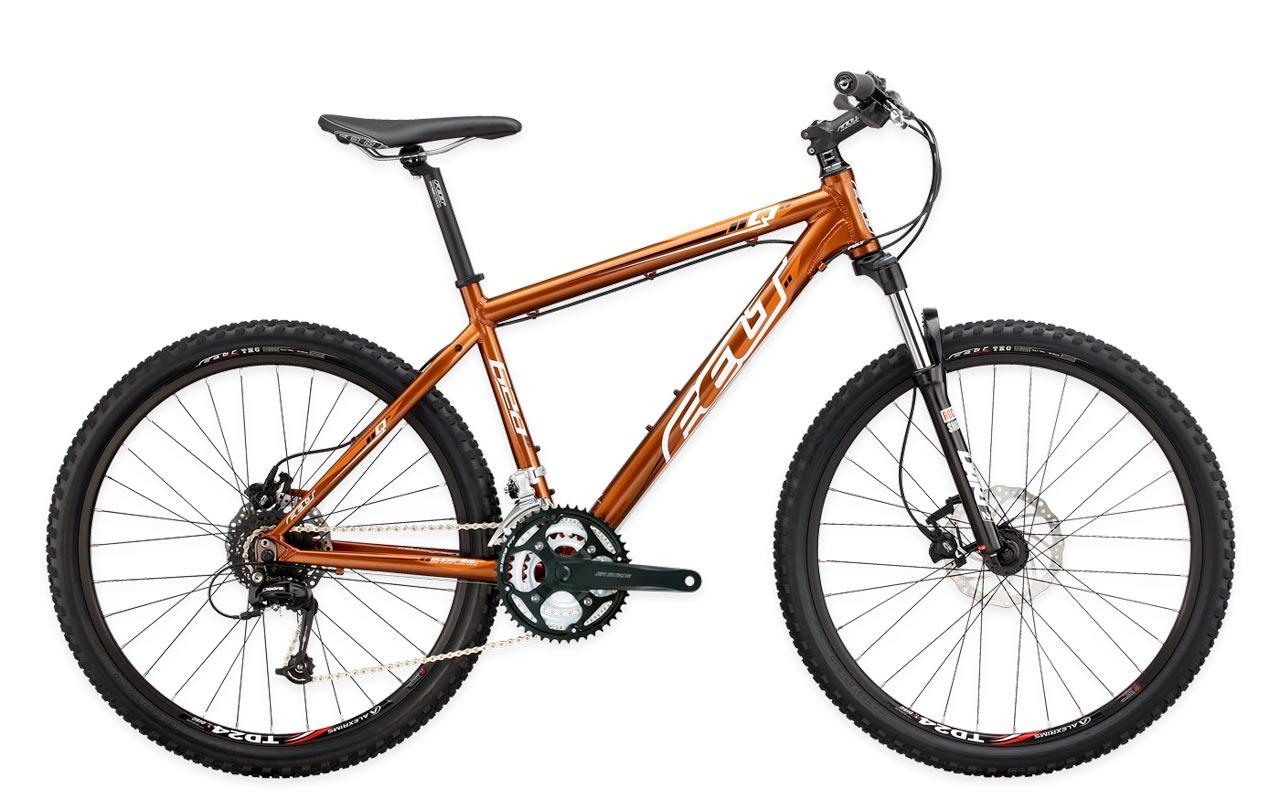

2009 Felt Q620

Original specifications: Shimano Alivio drivetrain · 26" wheels · 30.4 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #18541
Model year
2009
Category
Mountain
Original MSRP
$799.00
Sizes
13.5", 15.5", 17.5", 19.5", 21.5"
Colors
Cola
Weight
30.4 lb
In this record
27 specifications · archived image · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors
Cola
Frame
6061 Double Butted Aluminum
Original equipment
Shimano Alivio

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061 Double Butted Aluminum · Shimano Alivio · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

13.5"15.5"17.5"19.5"21.5"

Published colors

Cola
View 5 archived size/color combinations
SizeColor
13.5"Cola
15.5"Cola
17.5"Cola
19.5"Cola
21.5"Cola

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material6061 Double Butted Aluminum
ForkRockShox Dart 2 w/lockout, 100mm travel
Fork MaterialSingle

Drivetrain

Component GroupShimano Alivio
ShiftersShimano Alivio Rapid Fire
Front DerailleurShimano Alivio
Rear DerailleurShimano Deore
CranksetShimano FC-M311-L, 24/34/42 teeth
Bottom BracketCartridge
CassetteSRAM PG-850
Rear Cogs8-speed, 11 - 32 teeth
ChainKMC Z7
PedalsMTB steel cage/PP body

Brakes

BrakesTektro Auriga Comp w/180mm rotor front/Tektro Auriga Comp w/160mm rotor rear brakes, Tektro Auriga Hydraulic levers

Cockpit & Contact Points

Headset1 1/8" Semi integrated
HandlebarAluminum riser
Handlebar ExtensionsNot included
StemFelt melt forged 1 pc.
SaddleFelt RXC Comfort
SeatpostFELT Alloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsFront: aluminum disc, Rear: Shimano M475 disc
RimsAlex TD-24, 32-hole
SpokesStainless, 14ga. (2.0mm)
Spoke NipplesBrass
Front Tire26 x 2.10" Felt THC XC
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/34/24T · 11–32T · 8-speed
Lowest0.75:1 Highest3.82:1 Total range509%
Estimated speed At 90 RPM Lowest gear5.3 mph Highest gear26.8 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
SRAM PG-850
More parts (6)Fewer parts
Front tire · Original
26 x 2.10" Felt THC XC Replacement search: 26x2.1 bicycle tire Before ordering: Check rim type and tire clearance.
Crankset · Original
Shimano FC-M311-L

24/34/42 teeth

Front derailleur · Original
Shimano Alivio
Rear derailleur · Original
Shimano Deore
Shifters · Original
Shimano Alivio Rapid Fire
Rims · Original
Alex TD-24

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" Felt THC XC
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: RockShox Dart 2 w/lockout, 100mm travel · Single

Archived: Fork: RockShox Dart 2 w/lockout, 100mm travel

Archived: Group: Shimano Alivio · Shifters: Shimano Alivio Rapid Fire · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Deore · Crankset: Shimano FC-M311-L, 24/34/42 teeth · Bottom bracket: Cartridge · Cassette: SRAM PG-850 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z7

Archived: Brakes: Tektro Auriga Comp w/180mm rotor front/Tektro Auriga Comp w/160mm rotor rear brakes, Tektro Auriga Hydraulic levers

Archived: Wheel size: 26" wheels · Rims: Alex TD-24, 32-hole · Hubs: Front: aluminum disc, Rear: Shimano M475 disc · Front tire: 26 x 2.10" Felt THC XC

Controls and contact points

Archived: Headset: 1 1/8" Semi integrated · Handlebar: Aluminum riser · Stem: Felt melt forged 1 pc. · Seatpost: FELT Alloy Micro Adjust, 27.2mm diameter · Saddle: Felt RXC Comfort · Pedals: MTB steel cage/PP body
