Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

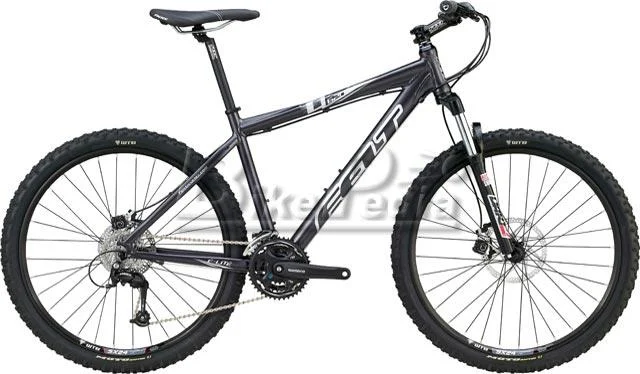

2008 Felt Q620
Original specifications: Shimano Deore · 8-speed · mechanical rear derailleur · 26" wheels · 30.2 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #14050- Model year
- 2008
- Category
- Mountain
- Original MSRP
- $599.00
- Sizes
- 13.5", 15.5", 17.5", 19.5", 21.5"
- Colors
- Matte Charcoal
- Weight
- 30.2 lb
- In this record
- 27 specifications · archived image · original MSRP
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2008 archived details
- Published colors
- Matte Charcoal
- Frame
- FELT Q Series 6061 Aluminum, hydroformed TT
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFELT Q Series 6061 Aluminum, hydroformed TT · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | FELT Q Series 6061 Aluminum, hydroformed TT |
| Fork | RockShox Dart 1, 100mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano FD M310 |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano FC-M311-L, 24/34/42 teeth |
| Bottom Bracket | TH Cartridge |
| Cassette | SRAM PG-850 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z7 |
| Pedals | MTB steel cage/PP body |
Brakes
| Brakes | Shimano M485 w/180mm Rotor front/Shimano M485 w/160mm Rotor rear brakes, Shimano EF-50 EZ Fire levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Semi integrated |
|---|---|
| Handlebar | Butted Aluminum Riser |
| Handlebar Extensions | Not included |
| Stem | One-Piece Melt-Forged Aluminum |
| Saddle | FELT Facade Comfort |
| Seatpost | FELT Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Shimano HB-RM65 centerlock, Rear: Shimano FH-RM65 centerlock |
|---|---|
| Rims | WTB SX24, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Spoke Nipples | Brass |
| Front Tire | 26 x 2.10" WTB MotoRaptor |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
27.2mm diameter
More parts (5)Fewer parts
24/34/42 teeth
32-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" WTB MotoRaptor
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- TH Cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RockShox Dart 1, 100mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: RockShox Dart 1, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano EF-50 EZ Fire Integrated · Front derailleur: Shimano FD M310 · Rear derailleur: Shimano Deore · Crankset: Shimano FC-M311-L, 24/34/42 teeth · Bottom bracket: TH Cartridge · Cassette: SRAM PG-850 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z7
Brakes
Inspect the brakes →Archived: Brakes: Shimano M485 w/180mm Rotor front/Shimano M485 w/160mm Rotor rear brakes, Shimano EF-50 EZ Fire levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: WTB SX24, 32-hole · Hubs: Front: Shimano HB-RM65 centerlock, Rear: Shimano FH-RM65 centerlock · Front tire: 26 x 2.10" WTB MotoRaptor
Controls and contact points
Archived: Headset: 1 1/8" Semi integrated · Handlebar: Butted Aluminum Riser · Stem: One-Piece Melt-Forged Aluminum · Seatpost: FELT Alloy Micro Adjust, 27.2mm diameter · Saddle: FELT Facade Comfort · Pedals: MTB steel cage/PP body
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
