Lowest0.73:1
Highest3.82:1
Total range521%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×1.95; rear size isn’t listed.
Velopedia Bicycle Archive

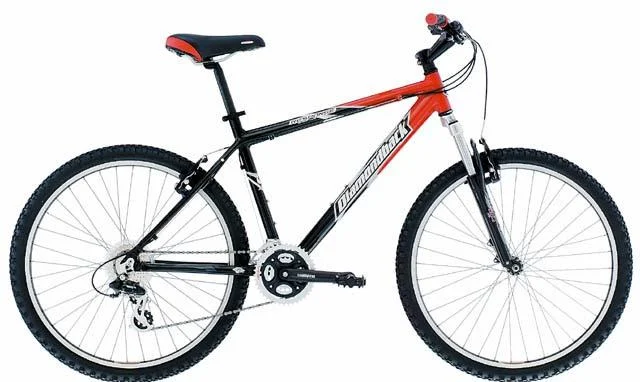

2002 Diamondback Response
Original specifications: Shimano Acera drivetrain · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #91389- Model year
- 2002
- Category
- Mountain
- Original MSRP
- $329.99
- Sizes
- L, M, S, womens medium, womens small, XL, XS
- Colors
- Blue/Black, Red/Black
- Geometry
- Legacy reference
- In this record
- 27 specifications · archived image · original MSRP · geometry
Model history 16 other years
Browse other years
Compare side by side
Identification clues
2002 archived details
- Published colors
- Blue/Black, Red/Black
- Frame
- 7005 aluminum w/replaceable derailleur hanger
- Original equipment
- Shimano Acera
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum w/replaceable derailleur hanger · Shimano Acera · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum w/replaceable derailleur hanger |
| Fork | RST Gila TL, 2.5" travel |
| Fork Material | Aluminum, single triple-clamp crown |
Drivetrain
| Component Group | Shimano Acera |
|---|---|
| Shifters | Shimano Acera EZ Fire Plus |
| Front Derailleur | Shimano Acera, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Acera |
| Crankset | Shimano Acera FC-MC19-L, 22/32/42 teeth |
| Bottom Bracket | Sealed cartridge, 110mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | Shimano CN-IG31, 1/2 x 3/32" |
| Pedals | Resin MTB |
Brakes
| Brakes | Aluminum linear-pull brakes, Shimano Acera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tien Hsin No.10 ZST |
|---|---|
| Handlebar | Aluminum, 1" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum Ahead type |
| Saddle | Avenir |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Aluminum |
|---|---|
| Rims | Weinmann CN-520, 36-hole |
| Spokes | Chung Nan stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" all terrain |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 563.9 mm |
| Head-tube angle | 71° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 424.2 mm |
| Wheelbase | 1059.2 mm |
| Fork offset / rake | 38.1 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Shimano CN-IG31
1/2 x 3/32"
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Shimano CN-IG31 on eBaySponsored links
Aluminum micro-adjust
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
26 x 1.95" all terrain
Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (4)Fewer parts
Aluminum linear-pull brakes
Shimano Acera levers
Shimano Acera FC-MC19-L
22/32/42 teeth
Shimano Acera
Shimano Acera EZ Fire Plus
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.95" all terrain
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed cartridge, 110mm spindle · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RST Gila TL, 2.5" travel · Aluminum, single triple-clamp crown
Suspension
Evaluate the suspension →Archived: Fork: RST Gila TL, 2.5" travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Acera · Shifters: Shimano Acera EZ Fire Plus · Front derailleur: Shimano Acera, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Acera · Crankset: Shimano Acera FC-MC19-L, 22/32/42 teeth · Bottom bracket: Sealed cartridge, 110mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano CN-IG31, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Aluminum linear-pull brakes, Shimano Acera levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann CN-520, 36-hole · Hubs: Aluminum · Front tire: 26 x 1.95" all terrain
Controls and contact points
Archived: Headset: 1 1/8" integrated Tien Hsin No.10 ZST · Handlebar: Aluminum, 1" rise · Stem: Aluminum Ahead type · Seatpost: Aluminum micro-adjust, 27.2mm diameter · Saddle: Avenir · Pedals: Resin MTB
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
