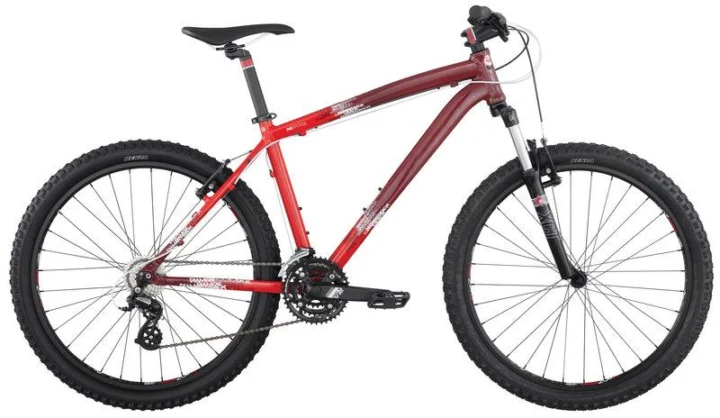

2012 Diamondback Response

Archived: Frame: Response 6061-T6 Aluminum · Fork: SR Suntour XCT 100mm

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: SR Suntour XCT 100mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano EF-51 EZ Fire 7spd · Front derailleur: Shimano TX-50 · Rear derailleur: Shimano Altus 7spd · Crankset: SR Suntour XCT V2 42/32/22t · Bottom bracket: sealed cartridge · Cassette: Shimano HG20 12-28t · Chain: KMC Z-51

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro linear pull

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Archived: Hubs: MX260H Alloy MX260H Alloy · Front tire: Kenda Klaw XT 26x2.1

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Zero Stack 1 1/8" · Handlebar: DB SL318b mid rise · Stem: DB SL318s 31.8mm · Seatpost: DB SL309p micro-adjust 30.9mm · Saddle: DB low profile All Mountain · Pedals: nylon flat pedal

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
