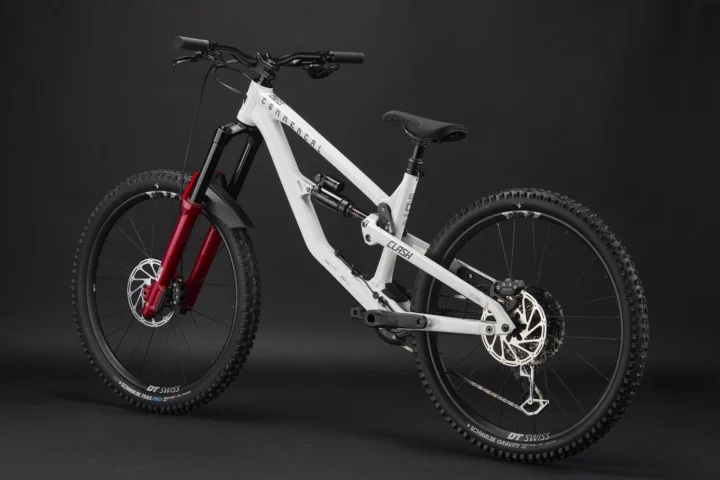

2027 Commencal Clash V3 Rockshox

Original manufacturer specifications including geometry for 3 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2027
Category
Mountain
Original MSRP
$5,500.00
Sizes
S, M, L
Colors
Pure White
Geometry
3 manufacturer sizes · Geometry context
Record coverage
21 preserved details · 8 archived images · original MSRP · preserved geometry
Archive ID
900001647
Campaign

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Pure White

Frameset

Frame ConstructionCLASH V3, 170 mm travel; 27.5'', Alloy 6066, triple butted tubes, T4, T6.
Frame MaterialAluminum

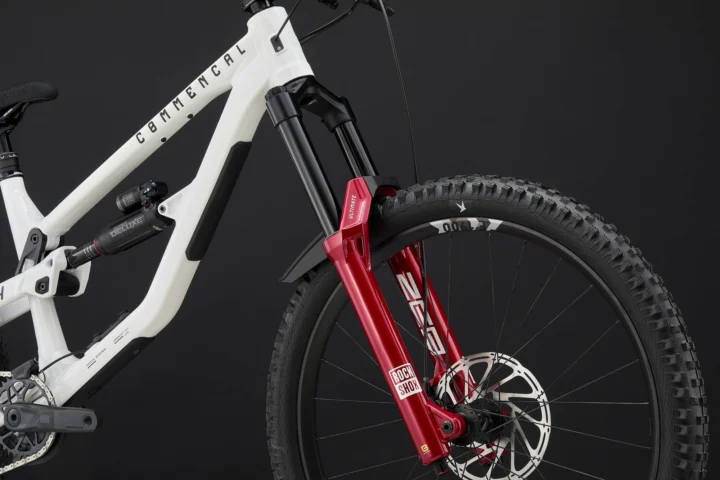

ForkROCKSHOX Zeb Ultimate, 180 mm; 27.5'', Charger 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110), 0 Token
Rear ShockROCKSHOX Super Deluxe Select; 230 x 65 mm, Pos adjustment, Rebound

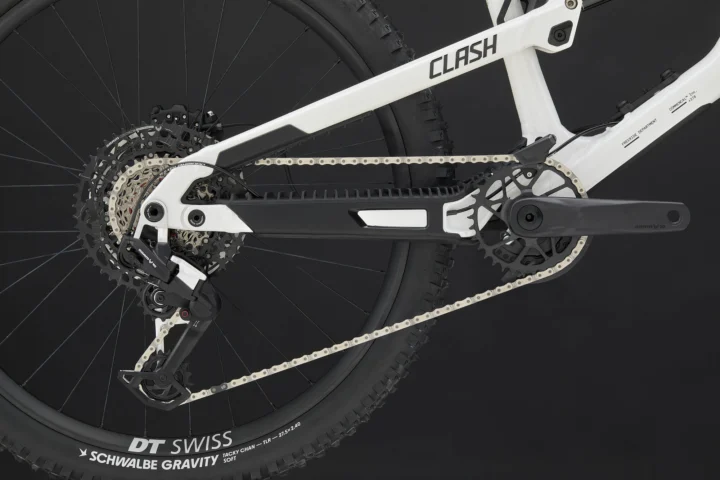

Drivetrain

ShiftersSRAM Eagle 90; 12S
Rear DerailleurSRAM Eagle 90; 12S
CranksetSRAM EAGLE 70, 165 mm; Chainring : SRAM EAGLE 90, 34t T-type
Bottom BracketSRAM DUB; BSA 73 MTB wide
CassetteSRAM XS 1270 T-type; 12s, 10-52t
ChainSRAM GX T-type; 12s
PedalsNo

Brakes

BrakesSRAM Maven Base, 4 pistons, sintered pads; Rotors : SRAM Centerline 200 mm, 6-bolts

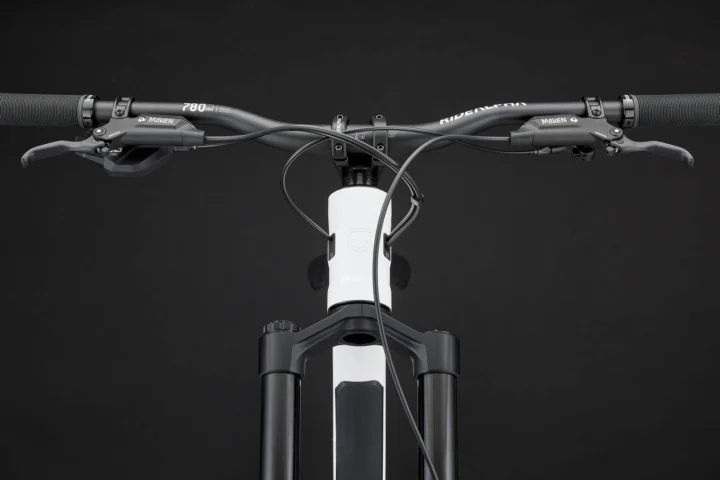

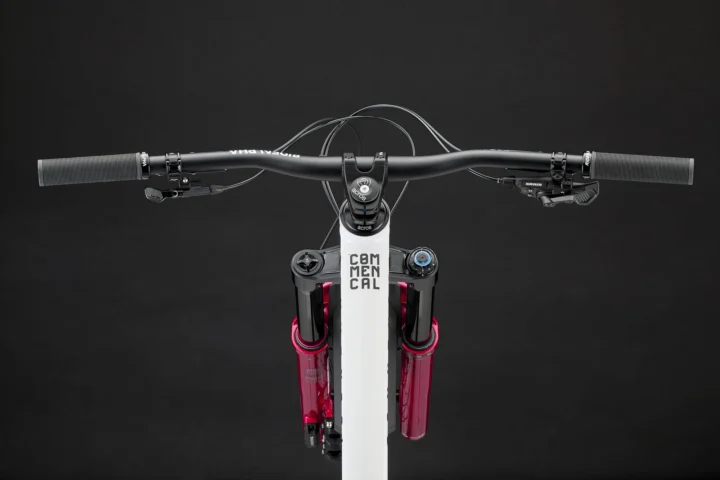

Cockpit & Contact Points

HeadsetACROS ZS56 / ZS56; Alloy cups, sealed bearings
HandlebarRIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M - RIDE ALPHA R35 800 on L; 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on L
StemRIDE ALPHA 40; 40 mm extension, 31.8 mm
SaddleBURGTEC The Cloud boost; Alloy rails, Black
SeatpostKS Lev Integra; 34.9 mm, 150 mm on S, 175 mm on M, 200 mm on L

Wheels & Tires

HubsDT SWISS 370 Classic LN; Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 32h, sealed bearings, 15 x 110 mm
RimsDT SWISS F1900 Classic; 27.5'', 32h, 30 mm inner width
Front TireRear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready
Rear TireRear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready

Size-specific frame data

Geometry

3 sizes · 11 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementSML
Seat tube380 mm400 mm420 mm
Effective top tube572 mm593 mm619 mm
Head tube115 mm120 mm125 mm
Head-tube angle63.8°63.8°63.8°
Seat-tube angle77.5°77.5°77.5°
Chainstay / rear center434 mm434 mm434 mm
Wheelbase1211 mm1233 mm1260 mm
Bottom-bracket drop10 mm10 mm10 mm
Reach435 mm455 mm480 mm
Stack618 mm623 mm627 mm
Fork length / axle-to-crown577 mm577 mm577 mm

Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

S geometry

Archive context: Its bottom-bracket drop of 10 mm sits toward the shallower-drop end. The seat angle of 77.5° sits toward the steeper end. The head angle of 63.8° sits toward the slacker end.

Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainMatching configuration
SRAM GX T-type; 12s Interpreted as SRAM GX · 12-speed Component family — verify exact version
CassetteExact archived part
SRAM XS 1270 T-type; 12s, 10-52t Named component · published drivetrain speed — verify exact version
Front tireMatching fit standard
SCHWALBE Magic Mary, 27.5x2.50, Trail Pro, Soft, Tubeless ready Named tire and published size
More qualified parts (6)
Rear tireMatching fit standard
SCHWALBE Tacky Chan, 27.5x2.50, Gravity, Soft, Tubeless ready Named tire and published size
Brake padsExact archived part
SRAM Maven Extra Large brake pads Manufacturer-verified pad family — compare pad shape
Bottom bracketExact archived part
SRAM DUB; BSA 73 MTB wide Named archived component — verify dimensions
Rear derailleurMatching configuration
SRAM Eagle 90; 12S Interpreted as SRAM Eagle 90 · 12-speed Component family — verify exact version
ShiftersQualified part search
SRAM Eagle 90; 12S Interpreted as SRAM Eagle 90 · 12-speed Component family — verify exact version
SeatpostQualified part search
KS Lev Integra; 34.9 mm, 150 mm on S, 175 mm on M, 200 mm on L Dropper post identified — select the published travel for your frame size

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
  • DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
0 of 23 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2027 Commencal Clash V3 Rockshox · Mountain · Published sizes: S, M, L

Archived: Frame: CLASH V3, 170 mm travel; 27.5'', Alloy 6066, triple butted tubes, T4, T6. · Fork: ROCKSHOX Zeb Ultimate, 180 mm; 27.5'', Charger 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110), 0 Token

Archived: Fork: ROCKSHOX Zeb Ultimate, 180 mm; 27.5'', Charger 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110), 0 Token · Rear shock: ROCKSHOX Super Deluxe Select; 230 x 65 mm, Pos adjustment, Rebound

Archived: Shifters: SRAM EAGLE 90; 12s · Rear derailleur: SRAM EAGLE 90; 12s · Crankset: SRAM EAGLE 70, 165 mm; Chainring : SRAM EAGLE 90, 34t T-type · Bottom bracket: SRAM DUB; BSA 73 MTB wide · Cassette: SRAM XS 1270 T-type; 12s, 10-52t · Chain: SRAM GX T-type; 12s

Archived: Brakes: SRAM Maven Base, 4 pistons, sintered pads; Rotors : SRAM Centerline 200 mm, 6-bolts

Archived: Rims: DT SWISS F1900 Classic; 27.5'', 32h, 30 mm inner width · Hubs: DT SWISS 370 Classic LN; Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 32h, sealed bearings, 15 x 110 mm · Front tire: Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready · Rear tire: Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, S…

Controls and contact points

Archived: Headset: ACROS ZS56 / ZS56; Alloy cups, sealed bearings · Stem: RIDE ALPHA 40; 40 mm extension, 31.8 mm · Seatpost: KS Lev Integra; 34.9 mm, 150 mm on S, 175 mm on M, 200 mm on L · Saddle: BURGTEC The Cloud boost; Alloy rails, Black · Pedals: No

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
