Lowest1.12:1
Highest5.00:1
Total range446%
Velopedia Bicycle Archive
2027 Canyon Speedmax CFR AXS
Original specifications: 700C wheels · 20.07 lb published weight · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001389- Model year
- 2027
- Category
- Road
- Original MSRP
- $12,499.00
- Sizes
- S, M, L, XL
- Weight
- 20.07 lb
- Geometry
- 4 manufacturer sizes
- In this record
- 15 specifications · 8 archived images · original MSRP · geometry
Original buildCarbon (CFR) · 700C
Frameset
| Frame Construction | Canyon Speedmax CFR |
|---|---|
| Frame Material | Carbon (CFR) |
| Fork | Canyon Speedmax Gabel |
Drivetrain
| Shifters | AXS Wireless Blips |
|---|---|
| Rear Derailleur | SRAM Red AXS Rear Derailleur |
| Crankset | SRAM Red AXS Power Meter; 50/37T |
| Bottom Bracket | SRAM DUB Pressfit |
| Cassette | SRAM Red; 12-speed; 10-33 |
| Chain | SRAM Red |
Cockpit & Contact Points
| Saddle | Fizik Transiro Aeris LD R1 |
|---|---|
| Seatpost | Splitter Plate Pro |
Wheels & Tires
| Wheels | DT Swiss ARC 1100 |
|---|---|
| Front Tire | Continental GP5000 TT TR |
| Rear Tire | Continental Aero 111 |
| Wheel Size | 700C |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 13 measurements
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 480 mm | 513 mm | 550 mm | 585 mm |
| Effective top tube | 516 mm | 537 mm | 565 mm | 593 mm |
| Head tube | 62 mm | 73 mm | 105 mm | 137 mm |
| Head-tube angle | 73° | 73° | 73° | 73° |
| Seat-tube angle | 81° | 81° | 81° | 81° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 989 mm | 1013 mm | 1046 mm | 1078 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Reach | 419 mm | 440 mm | 463 mm | 486 mm |
| Stack | 470 mm | 481 mm | 511 mm | 542 mm |
| Standover height | 759 mm | 780 mm | 814 mm | 846 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 165 mm |
| Wheel size | 700C | 700C | 700C | 700C |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM Red
Retailer offers
Silca Pre-Waxed Chain 12/13-Speed, Sram Red
Specification match
SRAM Red
12-speed; 10-33
Retailer offers
SRAM RED XG-1290 Cassette One Color, 12-Speed 10-33
Specification match
SRAM Red AXS Power Meter; 50/37T
165 mm
Frame sizes S / L / M / XL
Retailer offers
SRAM RED AXS Power Meter Spider DUB Crankset Black, 165mm, 50/37T
165mm, 50/37T · Frame sizes S / L / M / XL
Model match
More parts (6)Fewer parts
SRAM Red AXS Rear Derailleur
Retailer offers
SRAM RED AXS 12-Speed Rear Derailleur Black, Max 36t
Specification match
Continental GP5000 TT TR
Before ordering: Confirm the exact tire width before ordering.
Continental Aero 111
Before ordering: Confirm the exact tire width before ordering.
SRAM DUB Pressfit
Fizik Transiro Aeris LD R1
DT Swiss ARC 1100
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Service essentialsQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Continental GP5000 TT TRCheck: Verify the fitted tire’s size marking and rim type.
- Rear tire
- Continental Aero 111Check: Verify the rear size; it may differ from the front.
- Drivetrain
- 12-speedCheck: Match the installed drivetrain family, not just its speed count.
- Bottom bracket / shell
- SRAM DUB PressfitCheck: Verify shell type and width, crank interface, and spindle length or spacers.
Not confirmed in this record: Seatpost diameter. Check the fitted parts for these details.
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Speedmax CFR AXS · Road · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Speedmax CFR · Fork: Canyon Speedmax Gabel
Drivetrain
Check drivetrain wear →Archived: Shifters: AXS Wireless Blips · Rear derailleur: SRAM Red AXS Rear Derailleur · Crankset: SRAM Red AXS Power Meter; 50/37T · Bottom bracket: SRAM DUB Pressfit · Cassette: SRAM Red; 12-speed; 10-33 · Chain: SRAM Red
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss ARC 1100 · Front tire: Continental GP5000 TT TR · Rear tire: Continental Aero 111
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

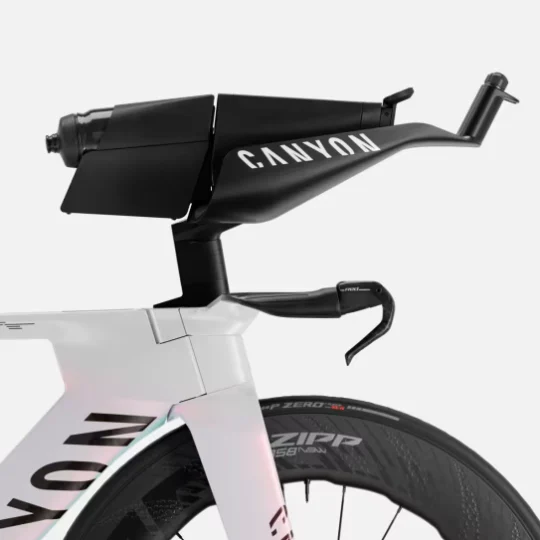

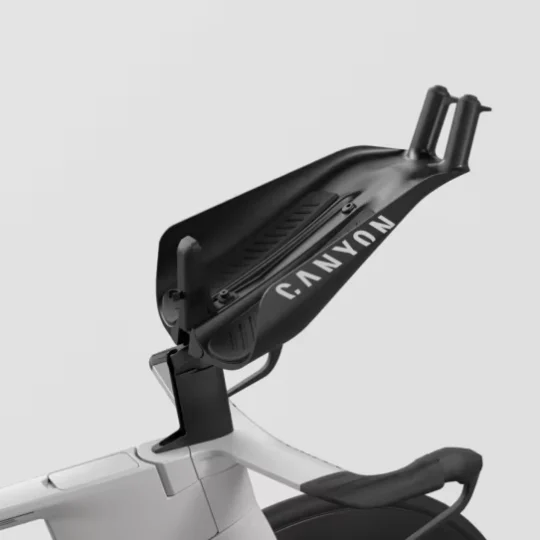

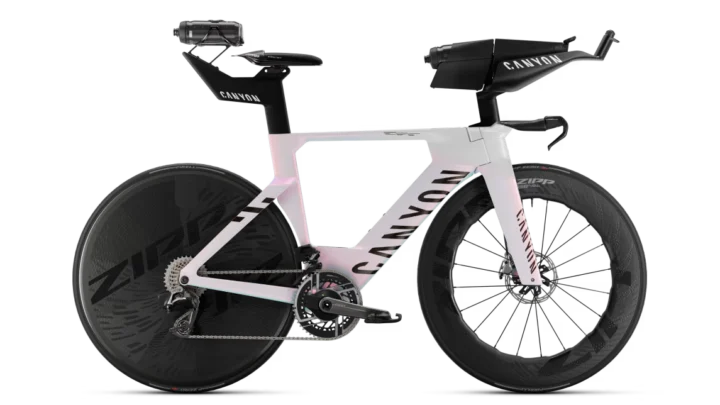

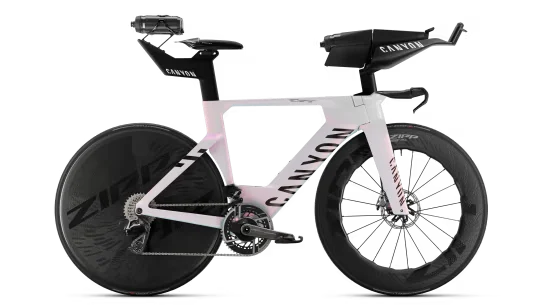

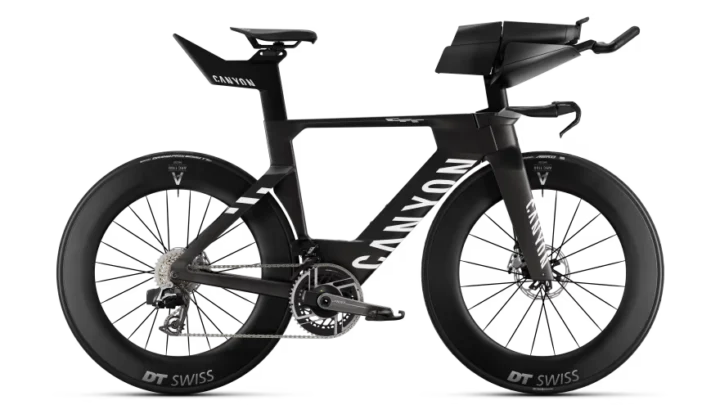

Gallery8 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
