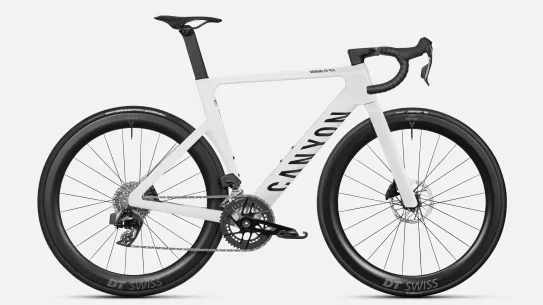

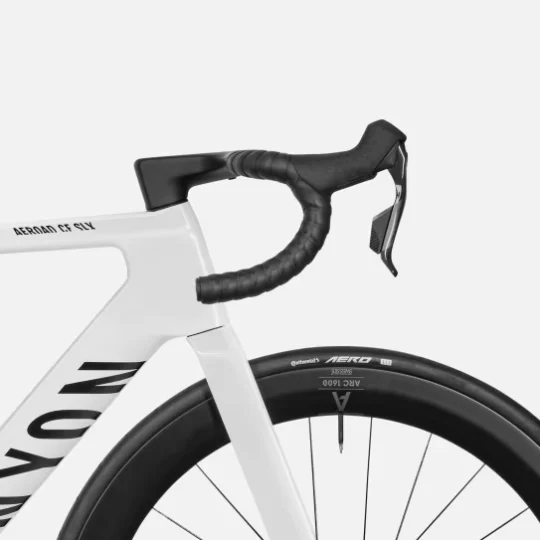

2027 Canyon Aeroad CF SLX 7 AXS

Original specifications: 700C wheels · 17.42 lb published weight · geometry for 7 published sizes.

Share owner experience

At a glance

Archive #900001371

Model year: 2027
Category: Road
Original MSRP: $4,999.00
Sizes: XXS, XS, S, M, L, XL, XXL
Colors: Crystal White, Metallic Acid
Weight: 17.42 lb
Geometry: 7 manufacturer sizes
In this record: 15 specifications · 7 archived images · original MSRP · geometry

Original buildCarbon (CF) · 700C

Manufacturer catalog

Published sizes and colors

7 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XXSXSSMLXLXXL

Published colors

Crystal WhiteMetallic Acid

Frameset

Frame Construction	Canyon Aeroad CF SLX
Frame Material	Carbon (CF)
Fork	Canyon FK0137 CF Disc
Fork Material	Carbon

Drivetrain

Rear Derailleur	SRAM Rival AXS Groupset
Crankset	SRAM Rival AXS Crankset
Bottom Bracket	SRAM DUB Pressfit
Cassette	SRAM Rival XG-1250, 12-speed, 10-36; 12-speed; 10-36
Chain	SRAM Rival E1

Cockpit & Contact Points

Saddle	Selle Italia SLR Advan Saddle
Seatpost	Canyon SP0077; 10 mm setback

Wheels & Tires

Wheels	Front: DT Swiss ARC 1600; Rear: DT Swiss ARC 1600 Dicut
Front Tire	Continental Grand Prix 5000 S TR, 28mm
Rear Tire	Continental Aero 111
Wheel Size	700C

Geometry

7 sizes · 13 measurements

Frame measurements by size.

All geometry measurements7 sizes · 13 measurements

Measurement	2XS	XS	S	M	L	XL	XXL
Seat tube	441 mm	471 mm	501 mm	531 mm	561 mm	591 mm	621 mm
Effective top tube	520 mm	532 mm	549 mm	559 mm	572 mm	598 mm	613 mm
Head tube	88 mm	107 mm	121 mm	142 mm	162 mm	188 mm	206 mm
Head-tube angle	70°	71.2°	72.8°	73.25°	73.3°	73.5°	73.8°
Seat-tube angle	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°
Chainstay / rear center	410 mm	410 mm	410 mm	410 mm	413 mm	415 mm	415 mm
Wheelbase	975 mm	979 mm	982 mm	988 mm	1003 mm	1029 mm	1042 mm
Bottom-bracket drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Reach	372 mm	378 mm	390 mm	393 mm	401 mm	419 mm	429 mm
Stack	498 mm	520 mm	539 mm	560 mm	580 mm	606 mm	624 mm
Standover height	720 mm	748 mm	775 mm	801 mm	828 mm	851 mm	874 mm
Crank length	160 mm	160 mm	165 mm	165 mm	170 mm	170 mm	170 mm
Wheel size	700C	700C	700C	700C	700C	700C	700C

Dimensions as recorded.

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Original size / build

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Cassette · Original

SRAM Rival XG-1250

12-speed, 10-36; 12-speed; 10-36

Search Amazon Search eBay

Retailer offers

SRAM Rival XG-1250 12-Speed Cassette Silver, 10-36T

Model match

Competitive Cyclist ↗$132.00

Front tire · Original

Continental Grand Prix 5000 S TR

28mm

Search Amazon Search eBay

Retailer offers

Continental Grand Prix 5000 S TR Tire Black/Black Chili, 700x28

700x28c

Model match

Competitive Cyclist ↗$107.95

Other replacement options (4)

Continental Grand Prix 5000 S TR Tire Transparent, Black Chili, 700x28

700x28c

Model match

Competitive Cyclist ↗$107.95

Continental Grand Prix 5000 AS TR Tire Black, Black Chili, 700x28

700x28c

Model match

Competitive Cyclist ↗$109.95

Continental Grand Prix 5000 AS TR Tire Black/Cream, Black Chili, 700x28

700x28c

Model match

Competitive Cyclist ↗$109.95

Specialized SW Mondo 2Bliss Tire Black, 700x28

700x28c

Replacement option

Backcountry ↗$67.45

Saddle · Original

Selle Italia SLR Advan Saddle

Search Amazon Search eBay

Retailer offers

Selle Italia SLR Advan Saddle Black, S3

Model match

Competitive Cyclist ↗$154.90

More parts (5)Fewer parts

Rear derailleur · Original

SRAM Rival AXS Groupset

Search Amazon Search eBay

Retailer offers

SRAM Rival E1 AXS 12-Speed Rear Derailleur Black, 12-Speed, 36t Max

Specification match

Competitive Cyclist ↗$325.00

Chain · Original

SRAM Rival E1

Search Amazon Search eBay

Rear tire · Original

Continental Aero 111 Before ordering: Confirm the exact tire width before ordering.

Search Amazon Search eBay

Bottom bracket · Original

SRAM DUB Pressfit

Search Amazon Search eBay

Crankset · Original

SRAM Rival AXS Crankset

160 mm Frame sizes XS / 2XS

Search Amazon Search eBay

165 mm Frame sizes S / M

Search Amazon Search eBay

170 mm Frame sizes XXL / L / XL

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Continental Grand Prix 5000 S TR, 28mm
Rear tire: Continental Aero 111
Drivetrain: 12-speed
Bottom bracket / shell: SRAM DUB Pressfit

Equipment inspection checks 7 checks based on 3 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Canyon Aeroad CF SLX · Fork: Canyon FK0137 CF Disc · Carbon

Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Rear derailleur: SRAM Rival AXS Groupset · Crankset: SRAM Rival AXS Crankset · Bottom bracket: SRAM DUB Pressfit · Cassette: SRAM Rival XG-1250, 12-speed, 10-36; 12-speed; 10-36 · Chain: SRAM Rival E1

Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700C · Wheels: Front: DT Swiss ARC 1600; Rear: DT Swiss ARC 1600 Dicut · Front tire: Continental Grand Prix 5000 S TR, 28mm · Rear tire: Continental Aero 111

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
