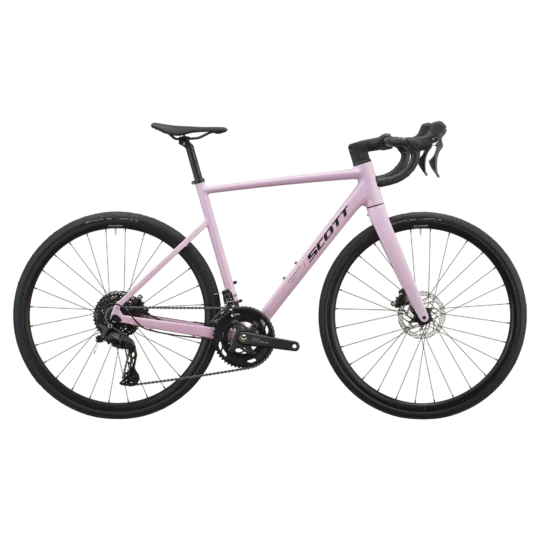

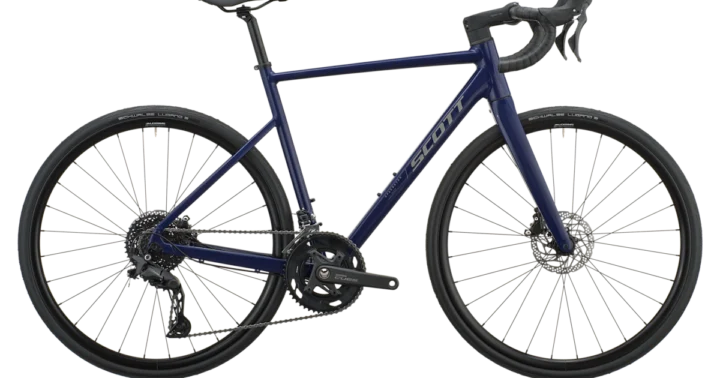

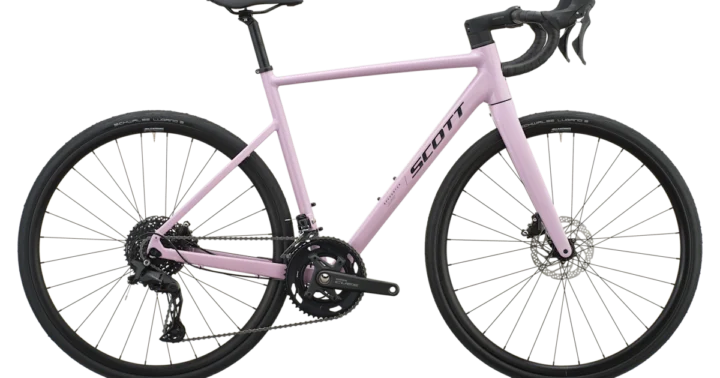

2027 Scott Speedster 20
Original manufacturer specifications including 700c wheels, 10.9 kg published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $1,799.99
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Weight
- 10.9 kg
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 4 archived images · original MSRP · preserved geometry
- Archive ID
- 900001913
Model history 2 other years
Frameset
| Frame Construction | Speedster Disc, 6061 D.Butted Alloy, ride geometry, int. cable routing, Syncros fender kit ready |
|---|---|
| Frame Material | Aluminum |
| Fork | Speedster HMF Disc, 1 1/4"-1 1/2" eccentric carbon steerer |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano BR-RS405, Shimano Cues ST-U6030 20 Speed |
|---|---|
| Front Derailleur | Shimano Cues FD-U6030 |
| Rear Derailleur | Shimano Cues RD-U6020 20-Speed |
| Crankset | Shimano Cues FC-U6030, 50-34T |
| Bottom Bracket | Shimano BB-RS500-PB |
| Cassette | Shimano Cues CS-LG300 10-Speed 11-39T |
| Chain | Shimano CN-LG500 |
Brakes
| Brakes | Shimano BR-RS405 Hyd. Disc; Rotors: (F) Shimano RT-CL300, 160mm / (R) Shimano RT-CL300, 160mm |
|---|
Cockpit & Contact Points
| Headset | Acros AIF-1113 |
|---|---|
| Handlebar | Syncros Creston 2.0 Compact, 31.8mm |
| Stem | Syncros RR2.5, 1 1/4", four Bolt 31.8mm |
| Saddle | Syncros Tofino R 2.5 |
| Seatpost | Syncros RR2.5 27.2/350mm |
Wheels & Tires
| Hubs | (F) Formula Team II CL Disc 28 H / (R) Formula Team II CL Disc 28 H Spokes Black 2mm Front Rim Syncros Race X25 Disc 28H Rear Rim Syncros Race X25 Disc 28H |
|---|---|
| Front Tire | Schwalbe Lugano, 700x32C |
| Rear Tire | Schwalbe Lugano, 700x32C |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 |
|---|---|---|---|---|---|---|---|
| Seat tube | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Effective top tube | 515 mm | 525 mm | 540 mm | 554 mm | 569 mm | 583 mm | 596 mm |
| Head tube | 93 mm | 103 mm | 123 mm | 143 mm | 163 mm | 183 mm | 203 mm |
| Head-tube angle | 70.5° | 71° | 72° | 72.5° | 73° | 73.3° | 73.3° |
| Seat-tube angle | 75° | 75° | 74.5° | 74° | 73.5° | 73.1° | 73° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1001.5 mm | 1007.9 mm | 1010 mm | 1015.8 mm | 1023.3 mm | 1030.3 mm | 1043 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm |
| Reach | 376 mm | 383 mm | 387 mm | 391 mm | 385 mm | 399 mm | 406 mm |
| Stack | 517.8 mm | 529.1 mm | 551.6 mm | 572.4 mm | 593.3 mm | 613.6 mm | 632.7 mm |
| Standover height | 735 mm | 754 mm | 780 mm | 800 mm | 820 mm | 840 mm | 864 mm |
| Stem length | 83 mm | 83 mm | 93 mm | 103 mm | 103 mm | 113 mm | 113 mm |
Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XXS/47 geometry
Archive context: The chainstay of 425 mm sits toward the longer rear-center end. Its wheelbase of 1001.5 mm sits toward the longer end. Its reach of 376 mm sits toward the longer end.
Compared with 29 distinct road geometries in the XXS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXS/47 geometry XS/49 geometry
Archive context: The chainstay of 425 mm sits toward the longer rear-center end. Its wheelbase of 1007.9 mm sits toward the longer end. Its reach of 383 mm sits toward the longer end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS/49 geometry S/52 geometry
Archive context: The chainstay of 425 mm sits toward the longer rear-center end. Its wheelbase of 1010 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits toward the shallower-drop end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S/52 geometry M/54 geometry
Archive context: The chainstay of 425 mm sits toward the longer rear-center end. Its wheelbase of 1015.8 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M/54 geometry L/56 geometry
Archive context: The chainstay of 427 mm sits toward the longer rear-center end. Its reach of 385 mm sits toward the shorter end. Its stack of 593.3 mm sits somewhat taller than typical.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L/56 geometry XL/58 geometry
Archive context: The chainstay of 427 mm sits toward the longer rear-center end. The head angle of 73.3° sits toward the steeper end. Its stack of 613.6 mm sits somewhat taller than typical.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL/58 geometry XXL/61 geometry
Archive context: The chainstay of 427 mm sits toward the longer rear-center end. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical. Its stack of 632.7 mm sits somewhat taller than typical.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL/61 geometry Parts & serviceability
Find replacement parts
Shimano CN-LG500
Exact archived model
Shimano Cues CS-LG300 10-Speed 11-39T
Interpreted as Shimano CUES · 10-speed Exact archived model
Schwalbe Lugano, 700x32C
Named tire and published size
More qualified parts (6)
Shimano BR-RS405 Hyd. Disc
Brake model identified — verify pad shape
Shimano BB-RS500-PB
Exact archived model
Syncros Tofino R 2.5
Named archived component — verify exact version
Shimano Cues FC-U6030, 50-34T
Exact archived model
Shimano Cues FD-U6030
Interpreted as Shimano CUES · 10-speed Exact archived model
Shimano Cues RD-U6020 20-Speed
Interpreted as Shimano CUES · 10-speed Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth brakes should stop firmly and release without rubbing. Inspect pad thickness, rotor wear and alignment, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Scott Speedster 20 · Road · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Speedster Disc, 6061 D.Butted Alloy, ride geometry, int. cable routing, Syncros fender kit ready · Fork: Speedster HMF Disc, 1 1/4"-1 1/2" eccentric carbon steerer · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano BR-RS405, Shimano Cues ST-U6030 20 Speed · Front derailleur: Shimano Cues FD-U6030 · Rear derailleur: Shimano Cues RD-U6020 20-Speed · Crankset: Shimano Cues FC-U6030, 50-34T · Bottom bracket: Shimano BB-RS500-PB · Cassette: Shimano Cues CS-LG300 10-Speed 11-39T · Chain: Shimano CN-LG500
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-RS405 Hyd. Disc; Rotors: (F) Shimano RT-CL300, 160mm / (R) Shimano RT-CL300, 160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Hubs: (F) Formula Team II CL Disc 28 H / (R) Formula Team II CL Disc 28 H Spokes Black 2mm Front Rim Syncros Race X25 Disc 28H Rear Rim Syncros Race X25 Disc 28H · Front tire: Schwalbe Lugano, 700x32C · Rear tire: Schwalbe Lugano, 700x32C
Controls and contact points
Archived: Headset: Acros AIF-1113 · Handlebar: Syncros Creston 2.0 Compact, 31.8mm · Stem: Syncros RR2.5, 1 1/4", four Bolt 31.8mm · Seatpost: Syncros RR2.5 27.2/350mm · Saddle: Syncros Tofino R 2.5
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
