Velopedia Bicycle Archive

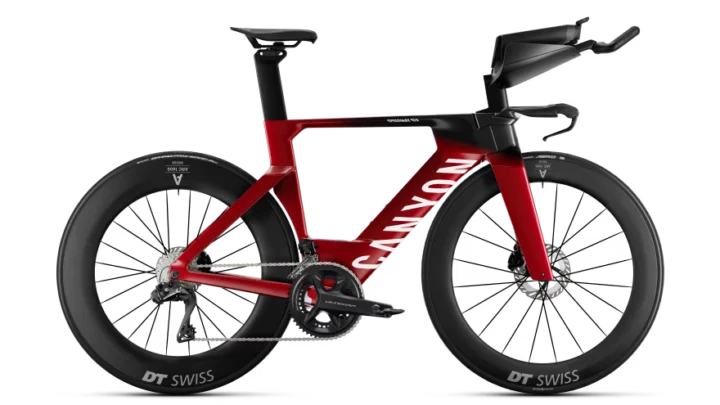

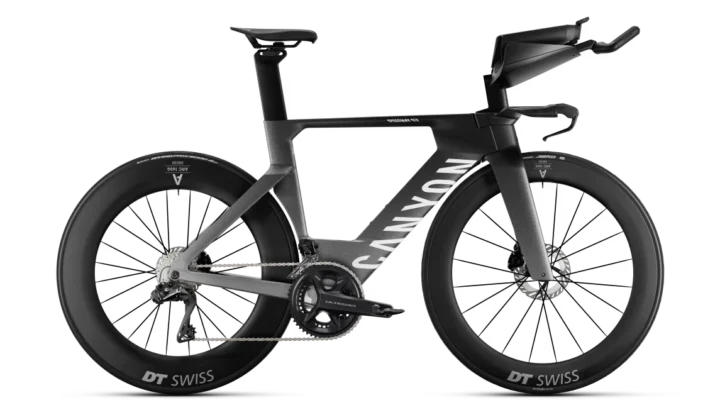

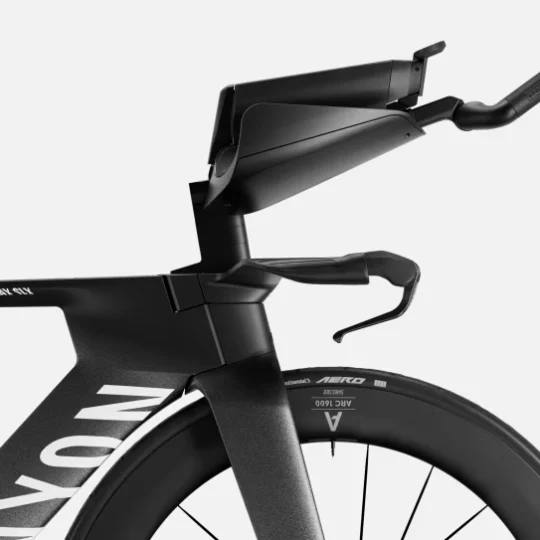

2027 Canyon Speedmax CF SLX 8 Di2
Original manufacturer specifications including 700C wheels, 21.08 lb published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $8,499.00
- Sizes
- S, M, L, XL
- Colors
- Cosmic Dust, Lava Red
- Weight
- 21.08 lb
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001391
Frameset
| Frame Construction | Canyon Speedmax SLX |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon Speedmax Gabel |
Drivetrain
| Shifters | Shimano Dura-Ace Di2 R9160 Remote TT |
|---|---|
| Rear Derailleur | Shimano Ultegra Di2 |
| Crankset | Shimano Ultegra FC-R8100 |
| Bottom Bracket | Shimano Pressfit BB72 |
| Cassette | Shimano CS-R8101 11-30 12s |
| Chain | Shimano XT |
Cockpit & Contact Points
| Saddle | Fizik Transiro Aeris LD R5 |
|---|---|
| Seatpost | SP102 Standard Seatpost |
Wheels & Tires
| Wheels | DT Swiss ARC 1600 Spline |
|---|---|
| Front Tire | Continental Grand Prix 5000 S TR, 28mm |
| Rear Tire | Continental Aero 111 |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 480 mm | 513 mm | 550 mm | 585 mm |
| Effective top tube | 516 mm | 537 mm | 565 mm | 593 mm |
| Head tube | 62 mm | 73 mm | 105 mm | 137 mm |
| Head-tube angle | 73° | 73° | 73° | 73° |
| Seat-tube angle | 81° | 81° | 81° | 81° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 989 mm | 1013 mm | 1046 mm | 1078 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 72 mm |
| Reach | 419 mm | 440 mm | 463 mm | 486 mm |
| Stack | 470 mm | 481 mm | 511 mm | 542 mm |
| Standover height | 759 mm | 780 mm | 814 mm | 846 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 165 mm |
| Wheel size | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: The seat angle of 81° sits toward the steeper end. Its reach of 419 mm sits toward the longer end. Its stack of 470 mm sits toward the lower end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 440 mm sits toward the longer end. The seat angle of 81° sits toward the steeper end. Its stack of 481 mm sits toward the lower end.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 463 mm sits toward the longer end. The seat angle of 81° sits toward the steeper end. Its stack of 511 mm sits toward the lower end.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The seat angle of 81° sits toward the steeper end. Its reach of 486 mm sits toward the longer end. Its stack of 542 mm sits toward the lower end.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
Shimano CS-R8101 11-30 12s
Exact archived model
Continental Grand Prix 5000 S TR, 28mm
Named tire and published width · wheel diameter from this bicycle
Continental Aero 111
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
More qualified parts (6)
Shimano Pressfit BB72
Named archived component — verify dimensions
Fizik Transiro Aeris LD R5
Named archived component — verify exact version
Shimano Ultegra FC-R8100
Exact archived model
Shimano Ultegra Di2
Interpreted as Shimano Ultegra · 12-speed · Di2 Component family — verify exact version
Shimano Dura-Ace Di2 R9160 Remote TT
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Component family — verify exact version
DT Swiss ARC 1600 Spline
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Speedmax CF SLX 8 Di2 · Road · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Speedmax SLX · Fork: Canyon Speedmax Gabel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Dura-Ace Di2 R9160 Remote TT · Rear derailleur: Shimano Ultegra Di2 · Crankset: Shimano Ultegra FC-R8100 · Bottom bracket: Shimano Pressfit BB72 · Cassette: Shimano CS-R8101 11-30 12s · Chain: Shimano XT
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss ARC 1600 Spline · Front tire: Continental Grand Prix 5000 S TR, 28mm · Rear tire: Continental Aero 111
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
