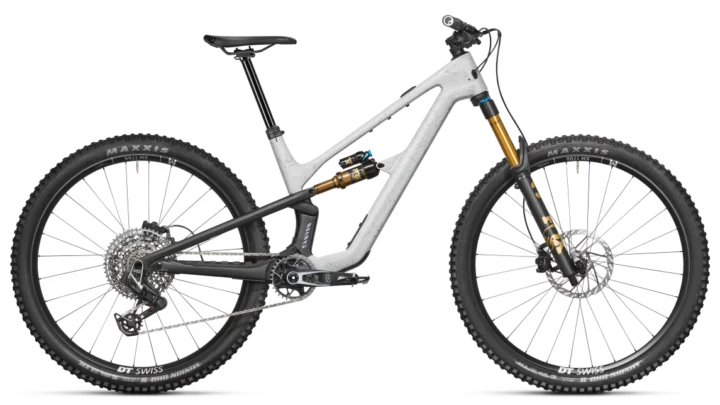

2027 Canyon Spectral CF 9
Original manufacturer specifications including 29"/27.5; Mullet; 29; 29" wheels, 33.38 lb published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $5,999.00
- Sizes
- XS, S, M, L
- Colors
- Interference
- Weight
- 33.38 lb
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 20 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001433
Frameset
| Frame Construction | Spectral CF |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | FOX 36 FLOAT Factory Series |
| Rear Shock | FOX FLOAT X Factory Series |
Drivetrain
| Shifters | SRAM AXS Pod Controller Rocker Paddle |
|---|---|
| Rear Derailleur | SRAM X0 Eagle AXS Transmission |
| Crankset | SRAM XO Eagle |
| Bottom Bracket | SRAM DUB BSA |
| Cassette | SRAM XS-1275 Eagle Transmission |
| Chain | SRAM GX Eagle Transmission |
Brakes
| Brakes | SRAM Maven Silver |
|---|
Cockpit & Contact Points
| Handlebar | Canyon G5 |
|---|---|
| Stem | Canyon G5 |
| Saddle | Ergon SM10 Enduro |
| Seatpost | Canyon SP0070-01 |
Wheels & Tires
| Wheels | DT Swiss XM1700 |
|---|---|
| Front Tire | MAXXIS Minion DHR II |
| Rear Tire | MAXXIS Minion DHR II |
| Wheel Size | 29"/27.5; Mullet; 29; 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat tube | 375 mm | 400 mm | 415 mm | 445 mm |
| Effective top tube | 572 mm | 599 mm | 626 mm | 653 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm |
| Head-tube angle | 64° | 64° | 64° | 64° |
| Seat-tube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Chainstay / rear center | 429 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1184 mm | 1221 mm | 1251 mm | 1280 mm |
| Bottom-bracket drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm |
| Standover height | 738 mm | 752 mm | 747 mm | 756 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheel size | 29"/27.5 | 29 | 29 | 29 |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its reach of 425 mm sits toward the longer end. Its wheelbase of 1184 mm sits toward the longer end. The head angle of 64° sits toward the slacker end.
Compared with 55 distinct mountain geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its reach of 450 mm sits toward the longer end. Its wheelbase of 1221 mm sits toward the longer end. The head angle of 64° sits somewhat slacker than typical.
Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 475 mm sits toward the longer end. Its wheelbase of 1251 mm sits toward the longer end. Its stack of 630 mm sits somewhat taller than typical.
Compared with 171 distinct mountain geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 500 mm sits toward the longer end. Its wheelbase of 1280 mm sits toward the longer end. Its stack of 639 mm sits somewhat taller than typical.
Compared with 167 distinct mountain geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry Parts & serviceability
Find replacement parts
SRAM GX Eagle Transmission
Interpreted as SRAM GX · 12-speed Component family — verify exact version
SRAM DUB BSA
Named archived component — verify dimensions
Ergon SM10 Enduro
Named archived component — verify exact version
More qualified parts (3)
SRAM X0 Eagle
Named archived component — verify exact version
SRAM X0 Eagle AXS Transmission
Interpreted as SRAM X0 · 12-speed · electronic Component family — verify exact version
DT Swiss XM1700
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Spectral CF 9 · Mountain · Published sizes: XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: Spectral CF · Fork: FOX 36 FLOAT Factory Series
Suspension
Evaluate the suspension →Archived: Fork: FOX 36 FLOAT Factory Series · Rear shock: FOX FLOAT X Factory Series
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM AXS Pod Controller Rocker Paddle · Rear derailleur: SRAM X0 Eagle AXS Transmission · Crankset: SRAM XO Eagle · Bottom bracket: SRAM DUB BSA · Cassette: SRAM XS-1275 Eagle Transmission · Chain: SRAM GX Eagle Transmission
Brakes
Inspect the brakes →Archived: Brakes: SRAM Maven Silver
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29"/27.5; Mullet; 29; 29" · Wheels: DT Swiss XM1700 · Front tire: MAXXIS Minion DHR II · Rear tire: MAXXIS Minion DHR II
Controls and contact points
Archived: Handlebar: Canyon G5 · Stem: Canyon G5 · Seatpost: Canyon SP0070-01 · Saddle: Ergon SM10 Enduro
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
