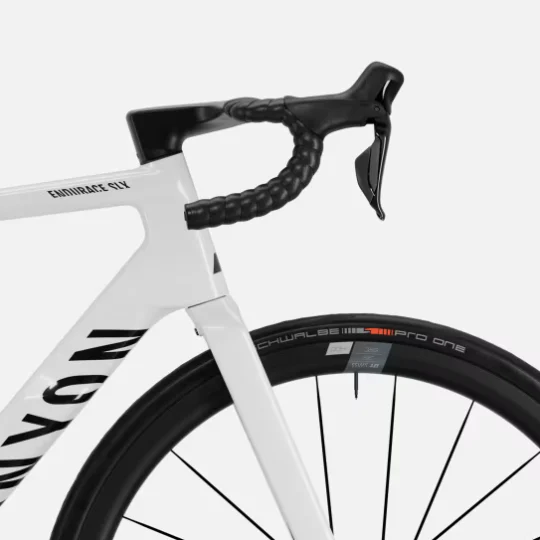

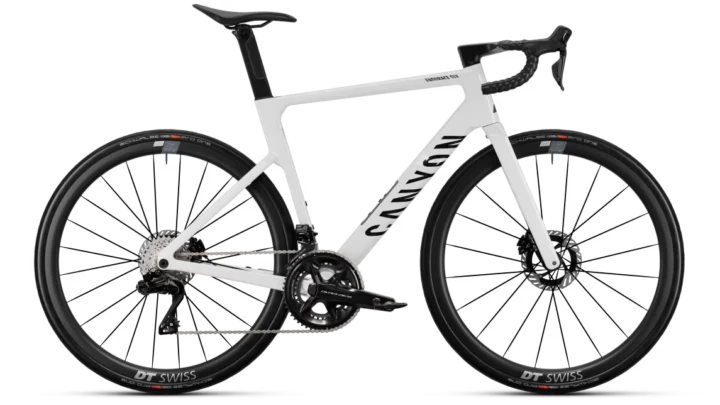

2027 Canyon Endurace CF SLX 9 Di2
Original manufacturer specifications including 700C wheels, 17.29 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $7,999.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Crystal White
- Weight
- 17.29 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001382
Frameset
| Frame Construction | Canyon Endurace CF SLX |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0165 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | Shimano Dura-Ace Di2 |
|---|---|
| Crankset | Shimano Dura-Ace Di2 Powermeter |
| Bottom Bracket | Shimano Pressfit BB92 |
| Cassette | Shimano Dura-Ace R9200, 12-speed, 11-34 |
| Chain | Shimano XTR |
Cockpit & Contact Points
| Saddle | Fizik Aliante R5 |
|---|---|
| Seatpost | SP0093 VCLS Aero |
Wheels & Tires
| Wheels | DT Swiss ERC 1400 Dicut |
|---|---|
| Front Tire | Schwalbe Pro One Evo 32 mm |
| Rear Tire | Schwalbe Pro One Evo 32 mm |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | M | L | XXL | 2XS | S | XL |
|---|---|---|---|---|---|---|---|
| Seat tube | 462 mm | 522 mm | 552 mm | 612 mm | 432 mm | 492 mm | 582 mm |
| Effective top tube | 544 mm | 562 mm | 577 mm | 608 mm | 533 mm | 553 mm | 593 mm |
| Head tube | 123 mm | 161 mm | 183 mm | 229 mm | 103 mm | 141 mm | 208 mm |
| Head-tube angle | 71° | 72.5° | 72.5° | 72.8° | 70.3° | 71.8° | 72.8° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1005 mm | 1009 mm | 1025 mm | 1054 mm | 999 mm | 1008 mm | 1039 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Reach | 383 mm | 388 mm | 397 mm | 415 mm | 378 mm | 386 mm | 405 mm |
| Stack | 545 mm | 586 mm | 608 mm | 652 mm | 524 mm | 565 mm | 633 mm |
| Standover height | 763 mm | 815 mm | 840 mm | 891 mm | 734 mm | 788 mm | 867 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 165 mm | 165 mm | 170 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its stack of 545 mm sits toward the taller end. Its wheelbase of 1005 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry M geometry
Archive context: Its stack of 586 mm sits toward the taller end. The seat angle of 73.5° sits somewhat more relaxed than typical. Its wheelbase of 1009 mm sits somewhat longer than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 608 mm sits toward the taller end. Its bottom-bracket drop of 74 mm sits somewhat deeper than typical. Its wheelbase of 1025 mm sits somewhat longer than typical.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XXL geometry
Archive context: Its stack of 652 mm sits toward the taller end. Its wheelbase of 1054 mm sits toward the longer end. Its bottom-bracket drop of 74 mm sits toward the deeper-drop end.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry 2XS geometry
Archive context: Its reach of 378 mm sits toward the longer end. Its stack of 524 mm sits toward the taller end. Its wheelbase of 999 mm sits toward the longer end.
Compared with 29 distinct road geometries in the XXS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry S geometry
Archive context: Its stack of 565 mm sits toward the taller end. Its wheelbase of 1008 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry XL geometry
Archive context: Its stack of 633 mm sits toward the taller end. Its bottom-bracket drop of 74 mm sits somewhat deeper than typical. The head angle of 72.8° sits somewhat slacker than typical.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
Shimano Dura-Ace R9200, 12-speed, 11-34
Interpreted as Shimano Dura-Ace · 12-speed Component family — verify exact version
Shimano Pressfit BB92
Named archived component — verify dimensions
Fizik Aliante R5
Named archived component — verify exact version
More qualified parts (3)
Shimano Dura-Ace Di2 Powermeter
Named archived component — verify exact version
Shimano Dura-Ace Di2
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Component family — verify exact version
DT Swiss ERC 1400 Dicut
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Endurace CF SLX 9 Di2 · Road · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Endurace CF SLX · Fork: Canyon FK0165 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano Dura-Ace Di2 · Crankset: Shimano Dura-Ace Di2 Powermeter · Bottom bracket: Shimano Pressfit BB92 · Cassette: Shimano Dura-Ace R9200, 12-speed, 11-34 · Chain: Shimano XTR
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss ERC 1400 Dicut · Front tire: Schwalbe Pro One Evo 32 mm · Rear tire: Schwalbe Pro One Evo 32 mm
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
