2027 Canyon Endurace CF 6
Original manufacturer specifications including 700C wheels, 19.58 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $2,299.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Milk Tea, Stealth
- Weight
- 19.58 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 18 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001383
Frameset
| Frame Construction | Canyon Endurace CF |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0154 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | Shimano CUES RD6040 |
|---|---|
| Crankset | Shimano CUES 6040-2 |
| Bottom Bracket | Shimano Pressfit BB-RS500 |
| Cassette | Shimano CUES RS400 |
| Chain | Shimano Cues LG500 |
Cockpit & Contact Points
| Handlebar | Canyon HB0076 Ergo |
|---|---|
| Stem | Canyon ST0035 |
| Saddle | Selle Royal SRX |
| Seatpost | Canyon SP0057 VCLS |
Wheels & Tires
| Wheels | DT Swiss Endurance LN |
|---|---|
| Front Tire | Continental Grand Prix TR |
| Rear Tire | Continental Grand Prix TR |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | M | L | XL | XXL | 2XS | XS | S |
|---|---|---|---|---|---|---|---|
| Seat tube | 522 mm | 552 mm | 582 mm | 612 mm | 432 mm | 462 mm | 492 mm |
| Effective top tube | 565 mm | 580 mm | 596 mm | 619 mm | 537 mm | 547 mm | 557 mm |
| Head tube | 158 mm | 180 mm | 204 mm | 226 mm | 104 mm | 123 mm | 139 mm |
| Head-tube angle | 72.5° | 72.5° | 72.8° | 72.8° | 70.3° | 71° | 71.8° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1014 mm | 1030 mm | 1043 mm | 1067 mm | 1006 mm | 1010 mm | 1013 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Reach | 392 mm | 401 mm | 409 mm | 427 mm | 382 mm | 386 mm | 390 mm |
| Stack | 584 mm | 605 mm | 629 mm | 649 mm | 525 mm | 545 mm | 563 mm |
| Standover height | 815 mm | 840 mm | 867 mm | 891 mm | 734 mm | 763 mm | 788 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 100 mm | 110 mm | 120 mm | 120 mm | 70 mm | 80 mm | 90 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
M geometry
Archive context: Its stack of 584 mm sits toward the taller end. Its wheelbase of 1014 mm sits toward the longer end. Its reach of 392 mm sits somewhat longer than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 605 mm sits toward the taller end. Its reach of 401 mm sits somewhat longer than typical. Its wheelbase of 1030 mm sits somewhat longer than typical.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its stack of 629 mm sits toward the taller end. Its bottom-bracket drop of 74 mm sits somewhat deeper than typical. Its reach of 409 mm sits somewhat longer than typical.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its wheelbase of 1067 mm sits toward the longer end. Its reach of 427 mm sits toward the longer end. Its stack of 649 mm sits toward the taller end.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry 2XS geometry
Archive context: Its reach of 382 mm sits toward the longer end. Its wheelbase of 1006 mm sits toward the longer end. Its stack of 525 mm sits toward the taller end.
Compared with 29 distinct road geometries in the XXS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry XS geometry
Archive context: Its wheelbase of 1010 mm sits toward the longer end. Its stack of 545 mm sits toward the taller end. Its reach of 386 mm sits toward the longer end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 563 mm sits toward the taller end. Its wheelbase of 1013 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry Parts & serviceability
Find replacement parts
Shimano Cues LG500
Exact archived model
Continental Grand Prix TR
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
Shimano Pressfit BB-RS500
Exact archived model
More qualified parts (3)
Selle Royal SRX
Named archived component — verify exact version
Shimano CUES 6040-2
Named archived component — verify exact version
DT Swiss Endurance LN
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Endurace CF 6 · Road · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Endurace CF · Fork: Canyon FK0154 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano CUES RD6040 · Crankset: Shimano CUES 6040-2 · Bottom bracket: Shimano Pressfit BB-RS500 · Cassette: Shimano CUES RS400 · Chain: Shimano Cues LG500
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss Endurance LN · Front tire: Continental Grand Prix TR · Rear tire: Continental Grand Prix TR
Controls and contact points
Archived: Handlebar: Canyon HB0076 Ergo · Stem: Canyon ST0035 · Seatpost: Canyon SP0057 VCLS · Saddle: Selle Royal SRX
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

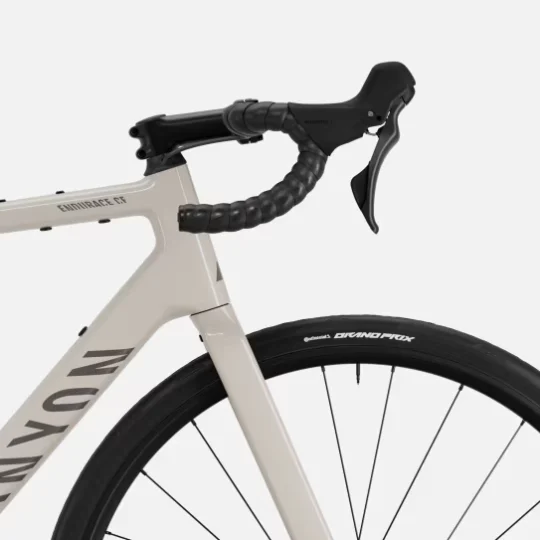

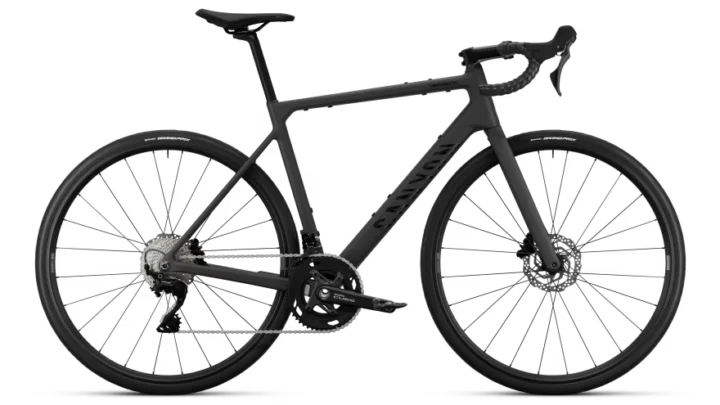

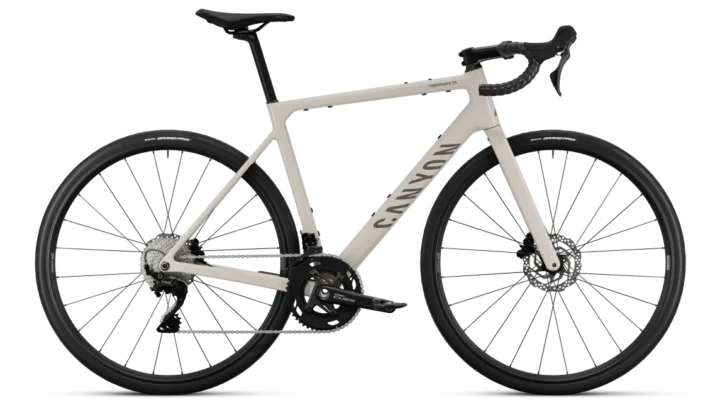

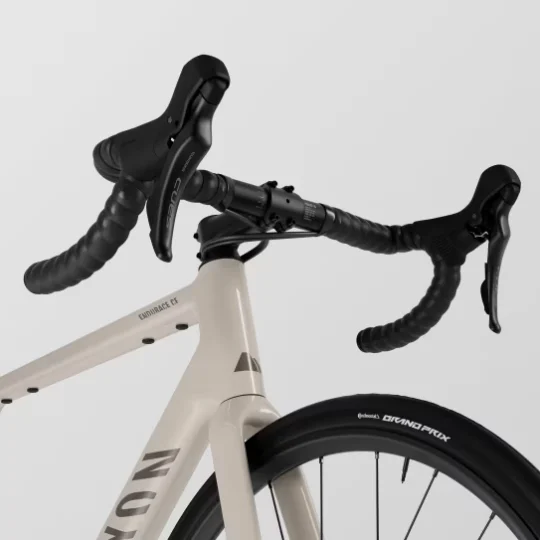

Gallery
Recently checked marketplace data
Market Snapshot
Velopedia did not find a close used eBay listing in the latest snapshot. New and used listings remain separate.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
No close current matches found. Velopedia did not find an eBay listing confident enough to include in the latest snapshot.
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
