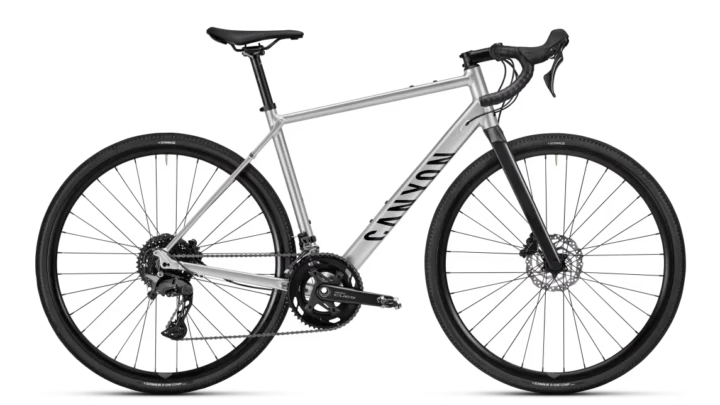

2027 Canyon Endurace AllRoad
Original manufacturer specifications including 700C wheels, 23.73 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $1,499.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Silver Mercury
- Weight
- 23.73 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 17 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001380
Frameset
| Frame Construction | Canyon Endurace AL Disc |
|---|---|
| Frame Material | Aluminium (AL) |
| Fork | Canyon FK0122 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | Shimano CUES U6020-10 |
|---|---|
| Crankset | Shimano CUES 6030-2 50/34 |
| Bottom Bracket | Shimano Pressfit BB-RS500 |
| Cassette | Shimano CUES LG300 |
| Chain | Shimano CUES LG500 |
Cockpit & Contact Points
| Handlebar | Canyon HB0076 Ergo |
|---|---|
| Stem | Canyon ST0039 |
| Saddle | Selle Royal SRX |
| Seatpost | Iridium Seatpost |
Wheels & Tires
| Front Tire | Schwalbe G-One Comp K-Guard |
|---|---|
| Rear Tire | Schwalbe G-One Comp K-Guard |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL | XXL | 2XS |
|---|---|---|---|---|---|---|---|
| Seat tube | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm | 432 mm |
| Effective top tube | 541 mm | 560 mm | 573 mm | 589 mm | 615 mm | 633 mm | 534 mm |
| Head tube | 133 mm | 145 mm | 166 mm | 189 mm | 215 mm | 235 mm | 130 mm |
| Head-tube angle | 70° | 71° | 72° | 72° | 72° | 72° | 70° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1026 mm | 1036 mm | 1040 mm | 1057 mm | 1083 mm | 1103 mm | 1019 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Reach | 377 mm | 391 mm | 397 mm | 407 mm | 425 mm | 438 mm | 371 mm |
| Stack | 554 mm | 570 mm | 594 mm | 616 mm | 640 mm | 660 mm | 552 mm |
| Standover height | 756 mm | 785 mm | 813 mm | 842 mm | 870 mm | 899 mm | 727 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm | 165 mm |
| Stem length | 80 mm | 80 mm | 90 mm | 100 mm | 100 mm | 100 mm | 70 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its stack of 554 mm sits toward the taller end. Its wheelbase of 1026 mm sits toward the longer end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 570 mm sits toward the taller end. Its wheelbase of 1036 mm sits toward the longer end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 594 mm sits toward the taller end. Its wheelbase of 1040 mm sits toward the longer end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 616 mm sits toward the taller end. Its wheelbase of 1057 mm sits toward the longer end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its wheelbase of 1083 mm sits toward the longer end. Its stack of 640 mm sits toward the taller end. The head angle of 72° sits toward the slacker end.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its reach of 438 mm sits toward the longer end. Its wheelbase of 1103 mm sits toward the longer end. Its stack of 660 mm sits toward the taller end.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry 2XS geometry
Archive context: Its stack of 552 mm sits toward the taller end. Its wheelbase of 1019 mm sits toward the longer end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 29 distinct road geometries in the XXS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry Parts & serviceability
Find replacement parts
Shimano CUES LG500
Exact archived model
Shimano CUES LG300
Exact archived model
Schwalbe G-One Comp K-Guard
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
More qualified parts (3)
Shimano Pressfit BB-RS500
Exact archived model
Selle Royal SRX
Named archived component — verify exact version
Shimano CUES 6030-2 50/34
Named archived component — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Endurace AllRoad · Road · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Endurace AL Disc · Fork: Canyon FK0122 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano CUES U6020-10 · Crankset: Shimano CUES 6030-2 50/34 · Bottom bracket: Shimano Pressfit BB-RS500 · Cassette: Shimano CUES LG300 · Chain: Shimano CUES LG500
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Front tire: Schwalbe G-One Comp K-Guard · Rear tire: Schwalbe G-One Comp K-Guard
Controls and contact points
Archived: Handlebar: Canyon HB0076 Ergo · Stem: Canyon ST0039 · Seatpost: Iridium Seatpost · Saddle: Selle Royal SRX
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
